62

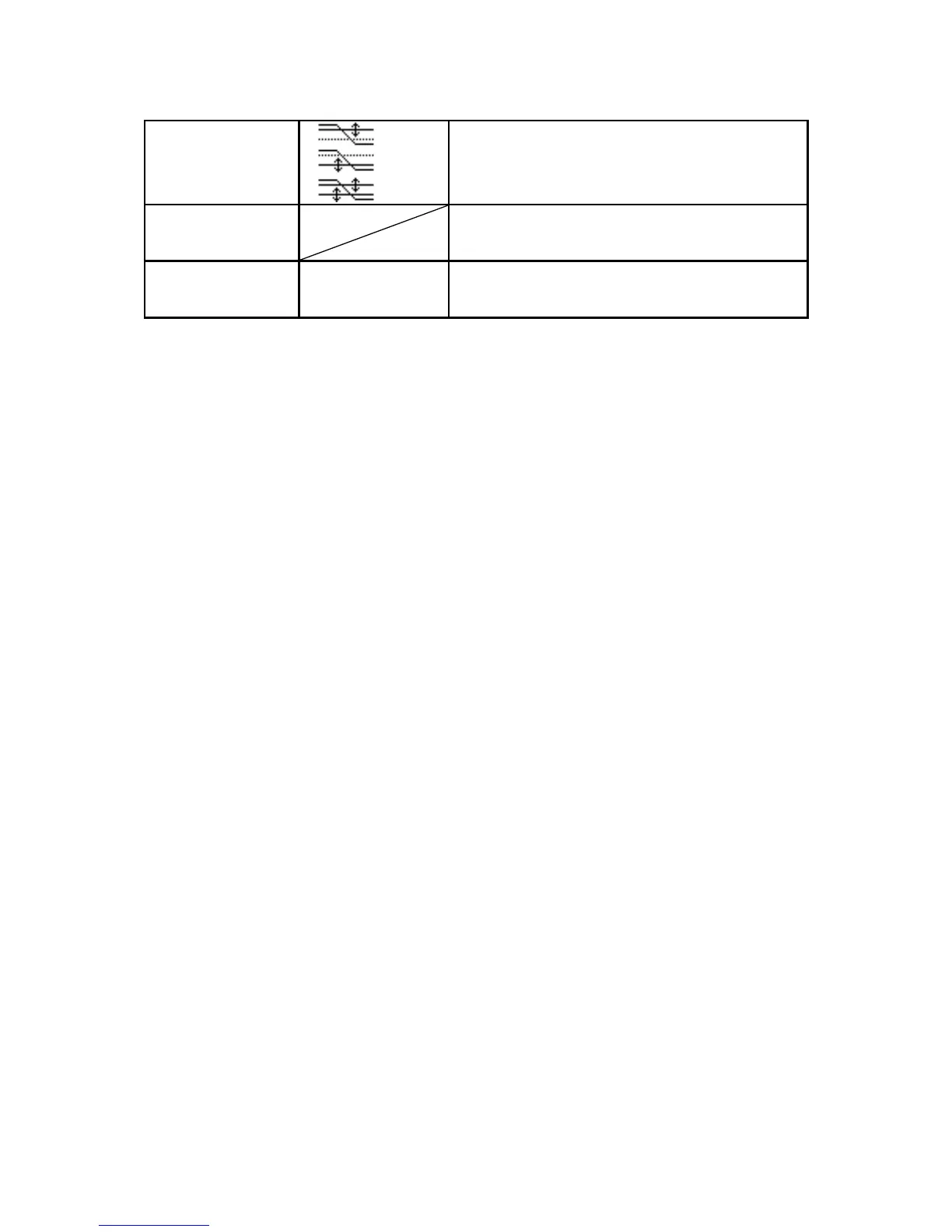

them at the same time.
Set up
Enter “Trigger setup menu” (See Table
3.16).
Next Page
Page 2/2
Return to the first page of “Alternative
trigger menu”.
Operating Instructions:
To use alternate triggering, follow these steps:
1. Input two irrelative signals to channel 1 and channel 2.
2. Press the AUTO button.
3. Press the TRIG MENU button to enter “trigger menu”.
4. Press the “Type” option button to select “Alternative”.
5. Press the “Channels” option button to select “CH1-CH2”
6. Press the “Source” option button to select “CH1”.
7. Press the CH1 button and turn the “Time/div” knob to optimize
waveform display.
8. Press “Mode” option button to select “Edge”, “Pulse”, “Slope”
or “Video”.
9. Set the trigger according to trigger edge.
10. Press the “Source” option button to select “CH2”.
11. Press the CH2 button and turn the “Time/div” knob to optimize
waveform display.
12. Repeat steps 8 and 9.
