Example 2: Generate a Square Waveform
Generate a square waveform with 5kHz frequency, 2 Vpp amplitude, 1 V DC offset and 30%
duty cycle.
⚫ Set the frequency.
1. Press Waveforms → Square → Frequency/Period and choose Frequency, which will display
in a blue color.
2. Input ‘5’ from the keyboard and choose the unit ‘kHz’. The frequency is set to 5 kHz.
⚫ Set the Amplitude.
1. Press Amplitude/HighLevel to choose Amplitude which will display in a blue color.
2. Input ‘2’ from the keyboard and choose the unit ‘Vpp’. The amplitude is set to 2 Vpp.
⚫ Set the Offset.
1. Press Offset/LowLevel to choose Offset which will display in a blue color.
2. Input ‘1’ from the keyboard and choose the unit ‘Vdc’. The offset is set to 1 V DC.
⚫ Set the DutyCycle.
1. Press DutyCycle to choose DutyCycle which will display in a blue color.
2. Input ‘30’ from the keyboard and choose the unit ‘%’. The duty is set to 30%.
When the frequency, amplitude, offset and duty cycle are set, the waveform generated is

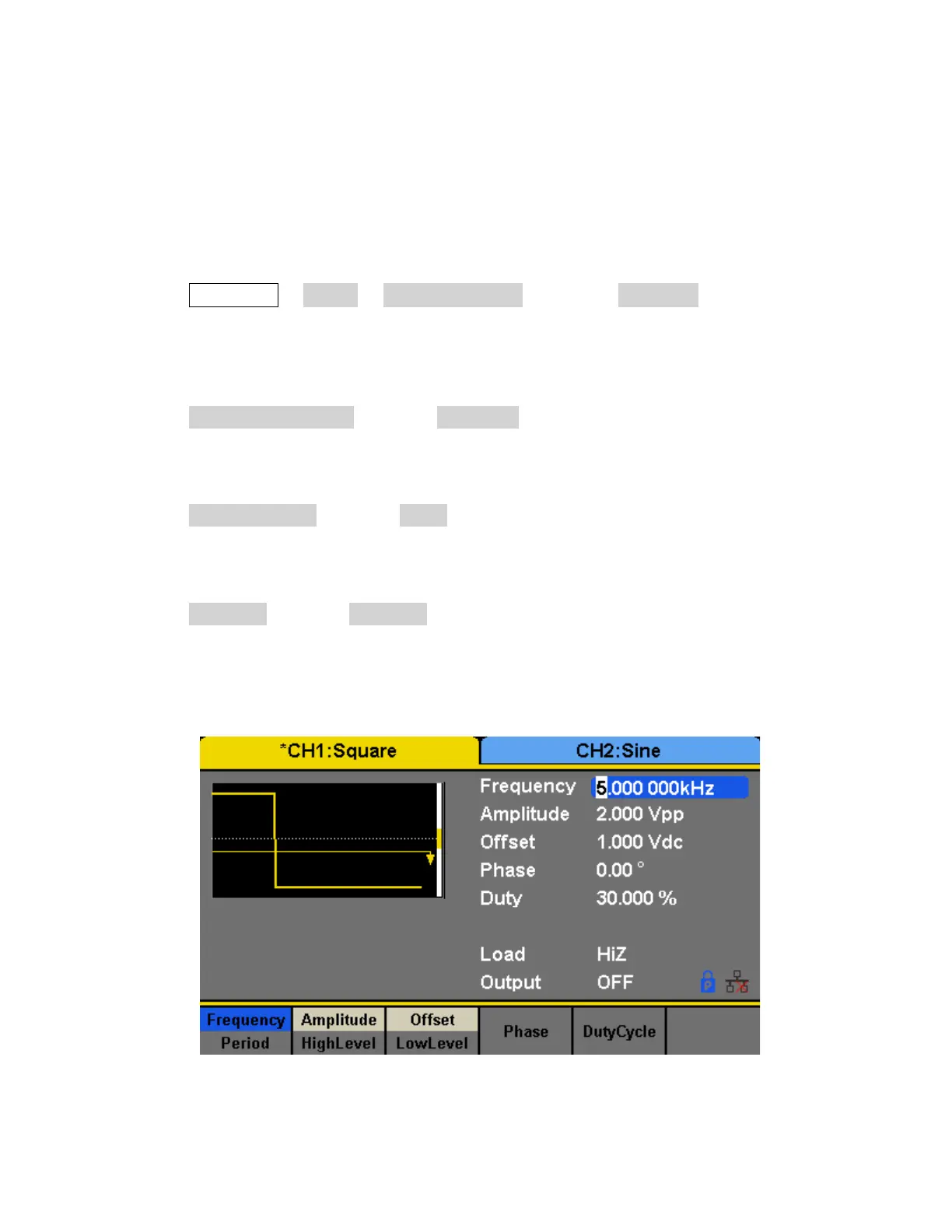

shown in Figure 75.
