25
4. Use the rotary knob or the numeric keypad to change the pulse delay.
After entering the numeric value, use the menu function keys to select s, ms, us, or ns.
Configure Symmetry: Ramp Waveform
A ramp waveform with 50% of symmetry is a triangular waveform. A sawtooth waveform is a
ramp waveform with either 0 or 100 percent.
Follow the steps below to configure the symmetry of a ramp/triangle waveform.
1. Press the Waveforms button.
2. Select and press the Ramp waveform softkey from the menu.
3. The cursor position will now highlight the first digit of the symmetry parameter display.

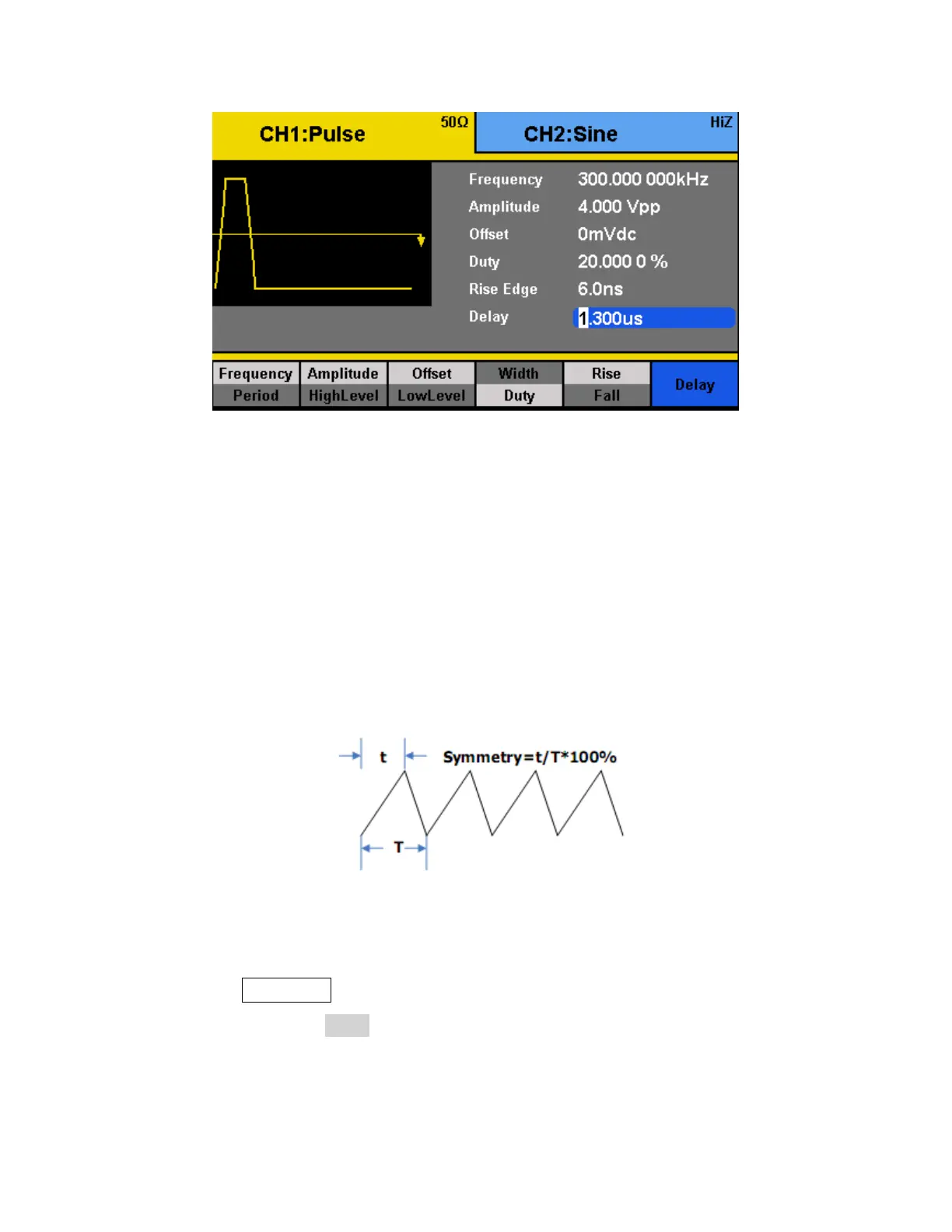

Figure 16 - Pulse Delay
Figure 17 - Symmetry
