BK Precision 4054B User Manual

75
Board Test
a. Press the BoardTest softkey to test the internal hardware of the generator. It will
indicate either “pass” or “fail”.
4.3 Frequency Counter
The generator has a built-in frequency counter that can measure frequencies between 100 mHz
to 200 MHz (DC Coupling) and 10 Hz to 200 MHz (AC Coupling). This unit has a dedicated
connector in the back panel for the frequency counter.
To configure the Frequency Counter follow the steps below:
a. Press the Utility button.

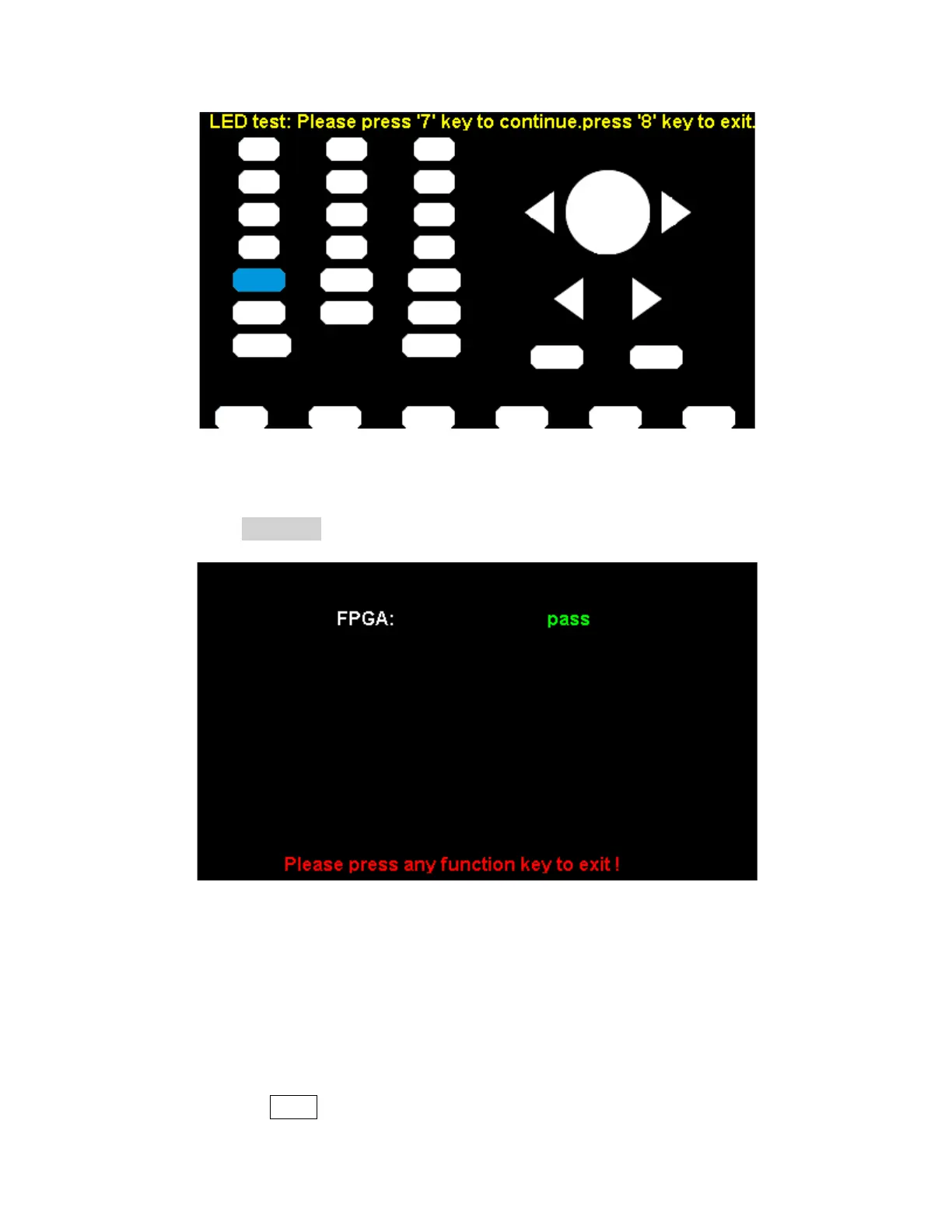

Figure 54 - LED Test
Figure 55 - Board Test
