Gated
In gated mode, the generator controls the waveform output according to the gated signal level.
When the gated signal is ON, the generator outputs a continuous waveform. When the gated
signal is OFF, the generator first completes the output of the current period and then stops.
Waveforms that support gated burst include sine, square, ramp, pulse, noise and arbitrary.
Item
Description
Polarity
Positive
Set the polarity for the gated signal.
Negative
Start Phase
Set the start phase of the burst.
Burst Period
Set the burst Period.
Source
Internal
Choose internal source as a trigger.
External
Choose external source as a trigger. Use
the [Aux In/Out] connector at the rear
panel.

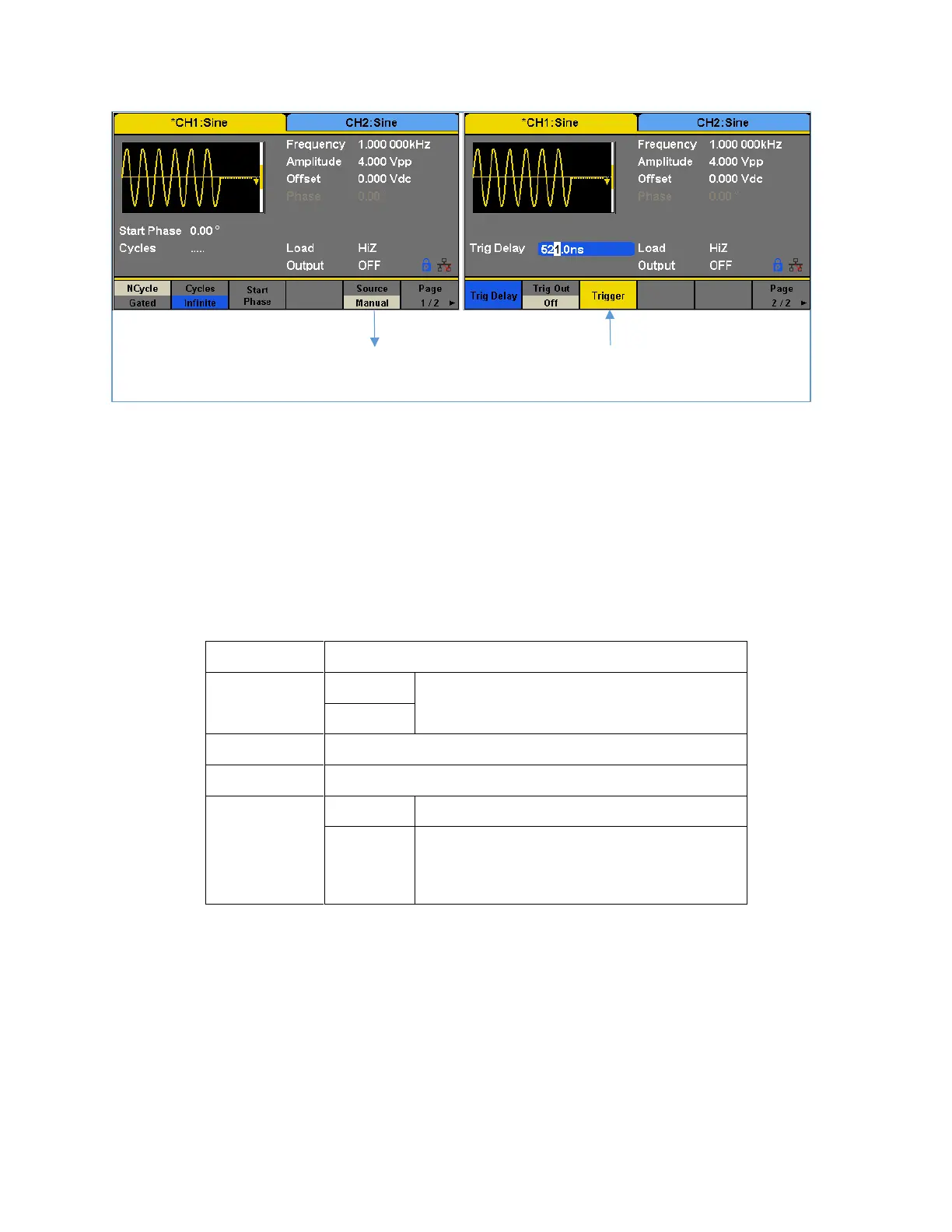

Figure 43 – NCycle Burst Manual Trigger
Table 19 - Gated Burst
This trigger softkey becomes available when
the manual trigger is selected.
