24

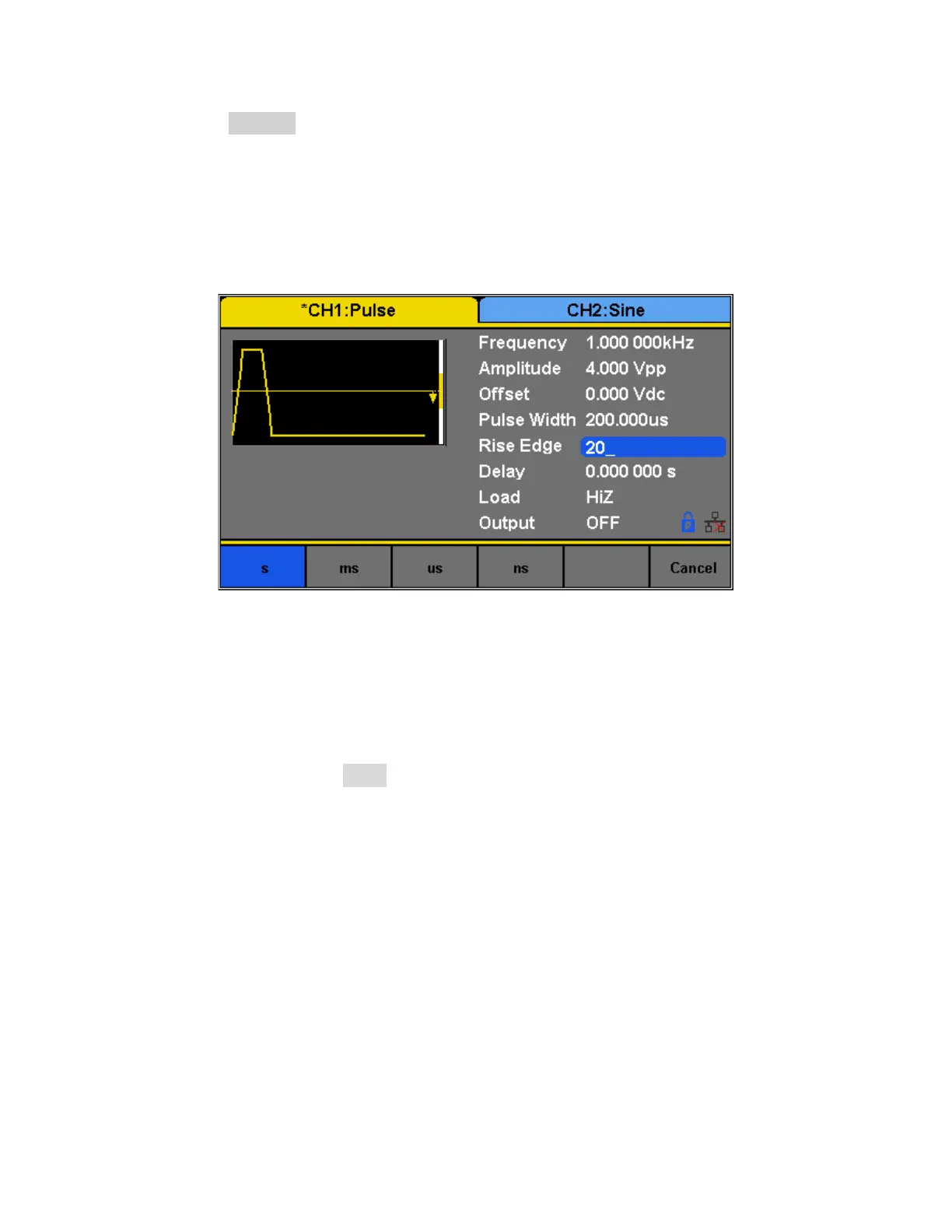

3. Toggle the Rise/Fall softkey to set the rise or fall edge.
The Rise/Fall softkey lets the user toggle between the Rise and Fall Edge settings. The selected
setting will be highlighted in blue.
Use the numeric keyboard to input the parameter value directly and press the corresponding
key to select the parameter unit. Alternatively, use the arrow keys to select the digit and use
the knob to change its value.
Configure Delay: Pulse Waveform
Follow the steps below to configure the pulse delay.
1. Set the instrument for pulse.
2. From the menu, select Delay.
3. The cursor position will now highlight the first digit of the delay parameter display.
