CHAPTER 5: SECURITY APPLICATION
CASE 1D
User can set default ACL Rule of GE port as “Permit”, then bind a suitable profile with “CoS Marking” action for some ACL function. It
means the GE port can remark CoS of the VLAN frame received from this port.
One directional MAC address with CoS Marking action. (one VLAN, and don’t care Ether Type)
STEP 1: Create a new ACL Profile. (Profile Name: CoSMarkingTest)
STEP 2: Create a new ACL Entry rule under this ACL profile. (Filter SrcMAC: 11 and VLAN ID: 4 frame to CoS: 2)
STEP 3: Bind this ACL profile to a GE port. (PORT-4)

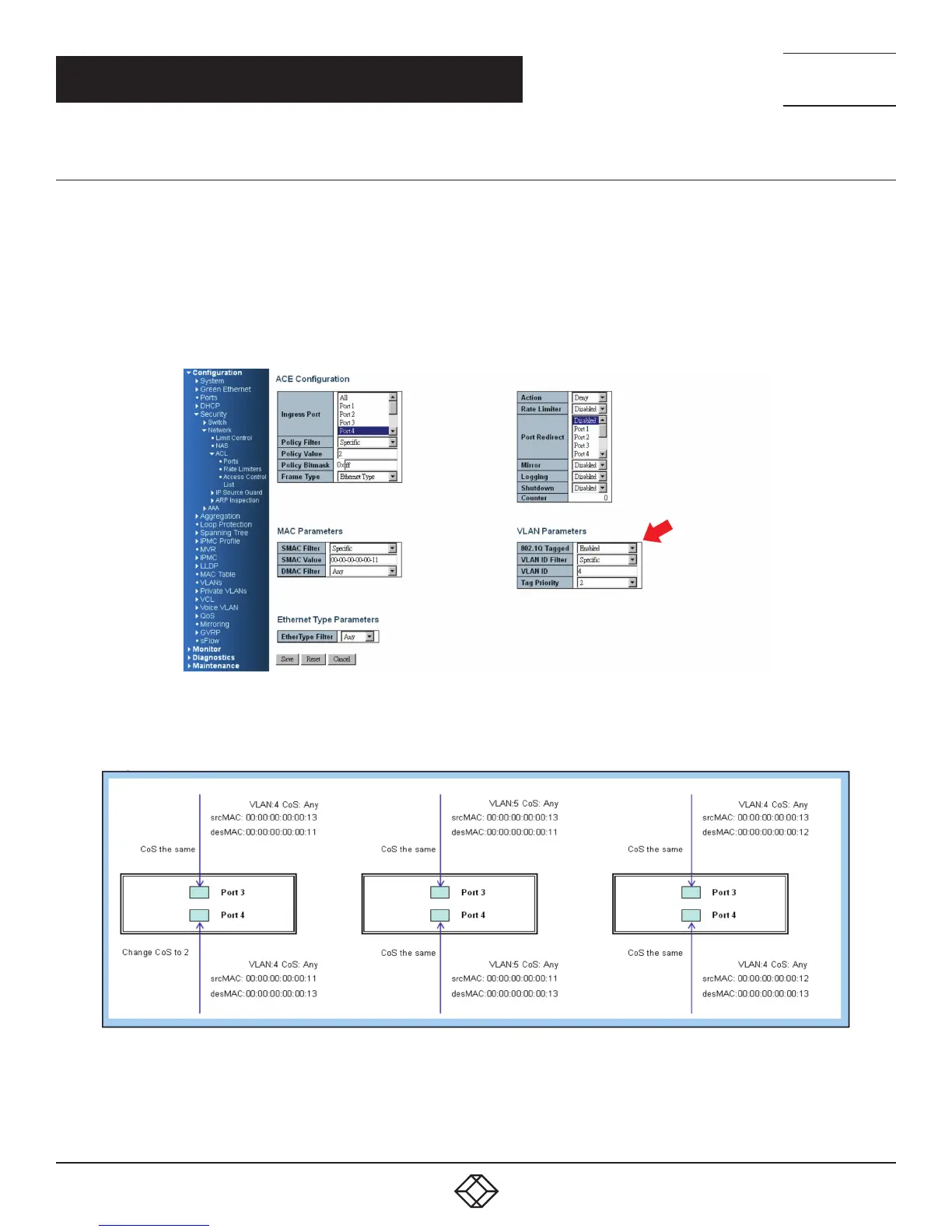

FIGURE 5-7. CASE 1D SCREEN
STEP 4: Send frames between PORT-3 and PORT-4, and see the test result.
FIGURE 5-8. TEST RESULT
