CHAPTER 5: SECURITY APPLICATION
STEP 5: Send frames between PORT-3 and PORT-4, and see test result.

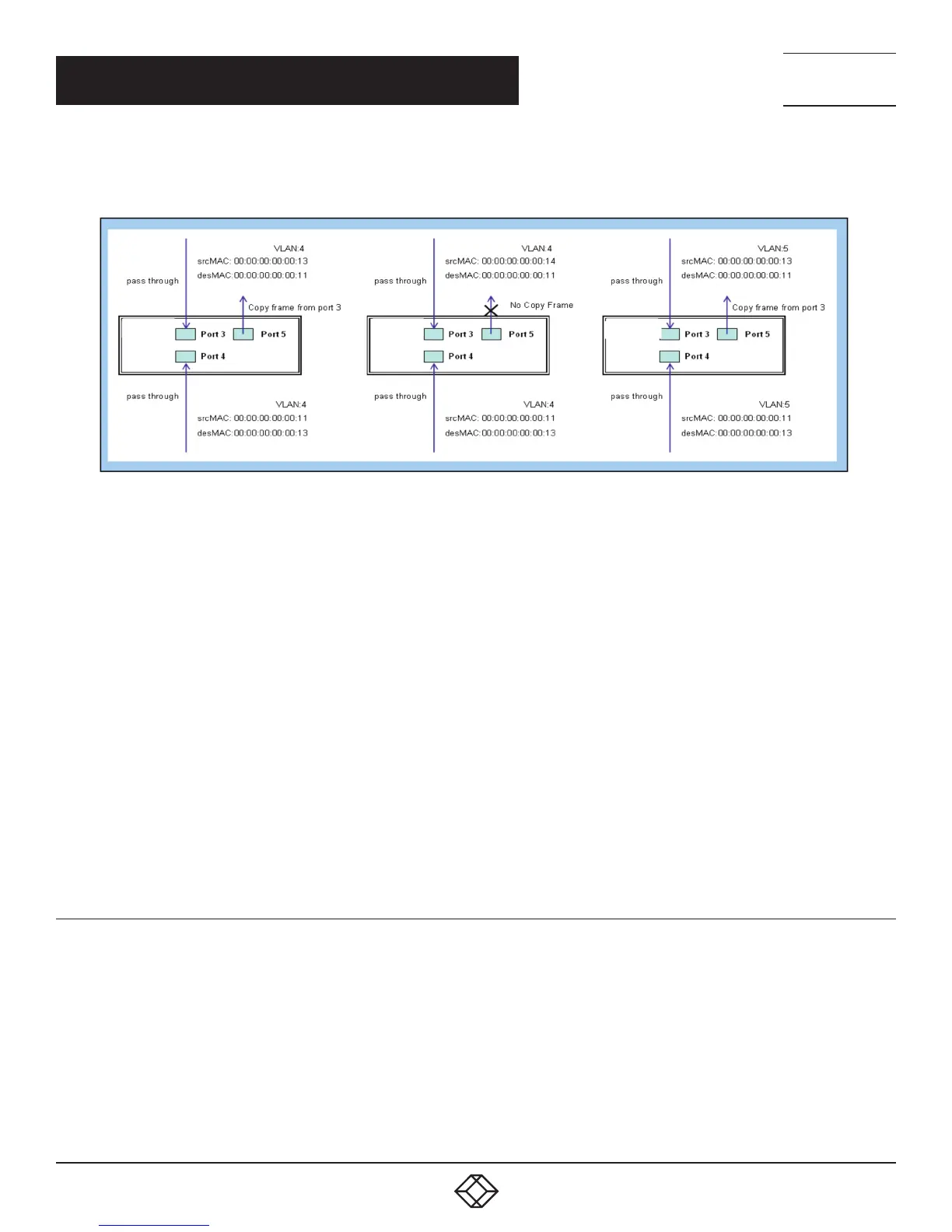

FIGURE 5-10. TEST RESULT
CLI COMMAND
access-list ace 2 next 3 ingress interface GigabitEthernet 1/3 policy 0 frametype etype smac 00-00-00-00-00-13
dmac 00-00-00-00-00-11 action deny mirror redirect interface GigabitEthernet 1/5
exit
interface GigabitEthernet 1/3
switchport trunk allowed vlan 4,5
switchport trunk vlan tag native
!
interface GigabitEthernet 1/4
switchport trunk allowed vlan 4,5
switchport trunk vlan tag native
exit
CASE 1F
This case means all frames will not pass through.
