CHAPTER 5: SECURITY APPLICATION
CASE 1G
User can set default ACL Rule of GE port as “Deny”, then bind a suitable profile with “Permit” action for ACL. It means the GE port
cannot pass through all packets but the ACL entry of the profile binding.
One directional MAC address with one VLAN permit filtering.
STEP 1: Create a new ACL Profile. (Profile Name: AllowSomeMac)
STEP 2: Create a new ACL Entry rule under this ACL profile. (Allow MAC: 11 and VLAN: 4)
STEP 3: Bind this ACL profile to a GE port. (PORT-4)

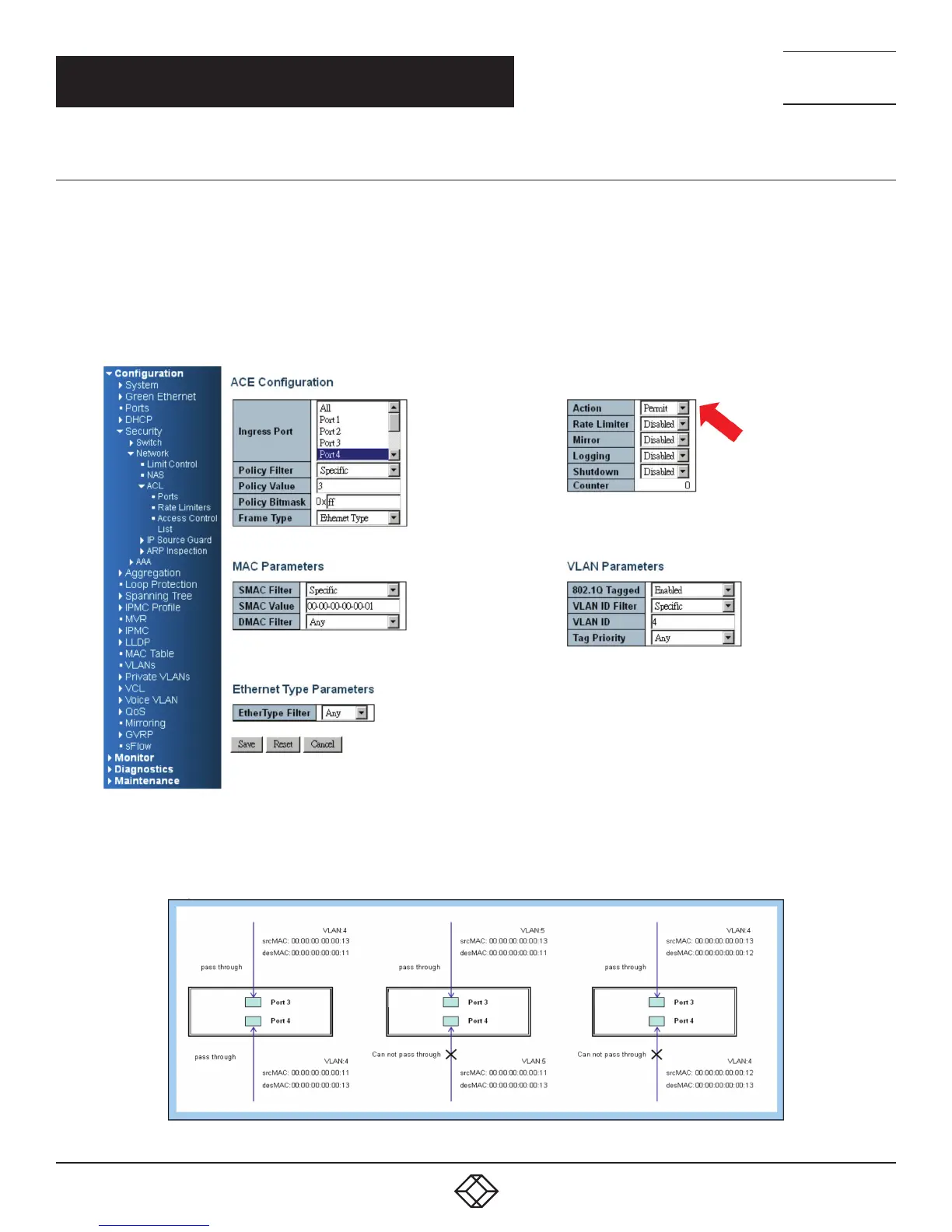

FIGURE 5-11. ACL PROFILE BINDING
STEP 4: Send frames between PORT-3 and PORT-4, and see test result.
FIGURE 5-12. TEST RESULT
