CHAPTER 5: SECURITY APPLICATION
CLI COMMAND
access-list ace 4 ingress interface GigabitEthernet 1/4 policy 3 tag tagged vid 4 frametype etype smac 00-00-00-
00-00-11
exit
interface GigabitEthernet 1/3
switchport trunk allowed vlan 4,5
switchport trunk vlan tag native
!
interface GigabitEthernet 1/4
switchport trunk allowed vlan 4,5
switchport trunk vlan tag native
exit
Two directional MAC address with all VLAN permit filtering.
STEP 1: Create a new ACL Profile. (Profile Name: AllowSomeMac)
STEP 2: Create a new ACL Entry rule under this ACL profile. (Allow SrcMAC: 13 and DesMAC: 11)
STEP 3: Bind this ACL profile to a GE port. (PORT-3)

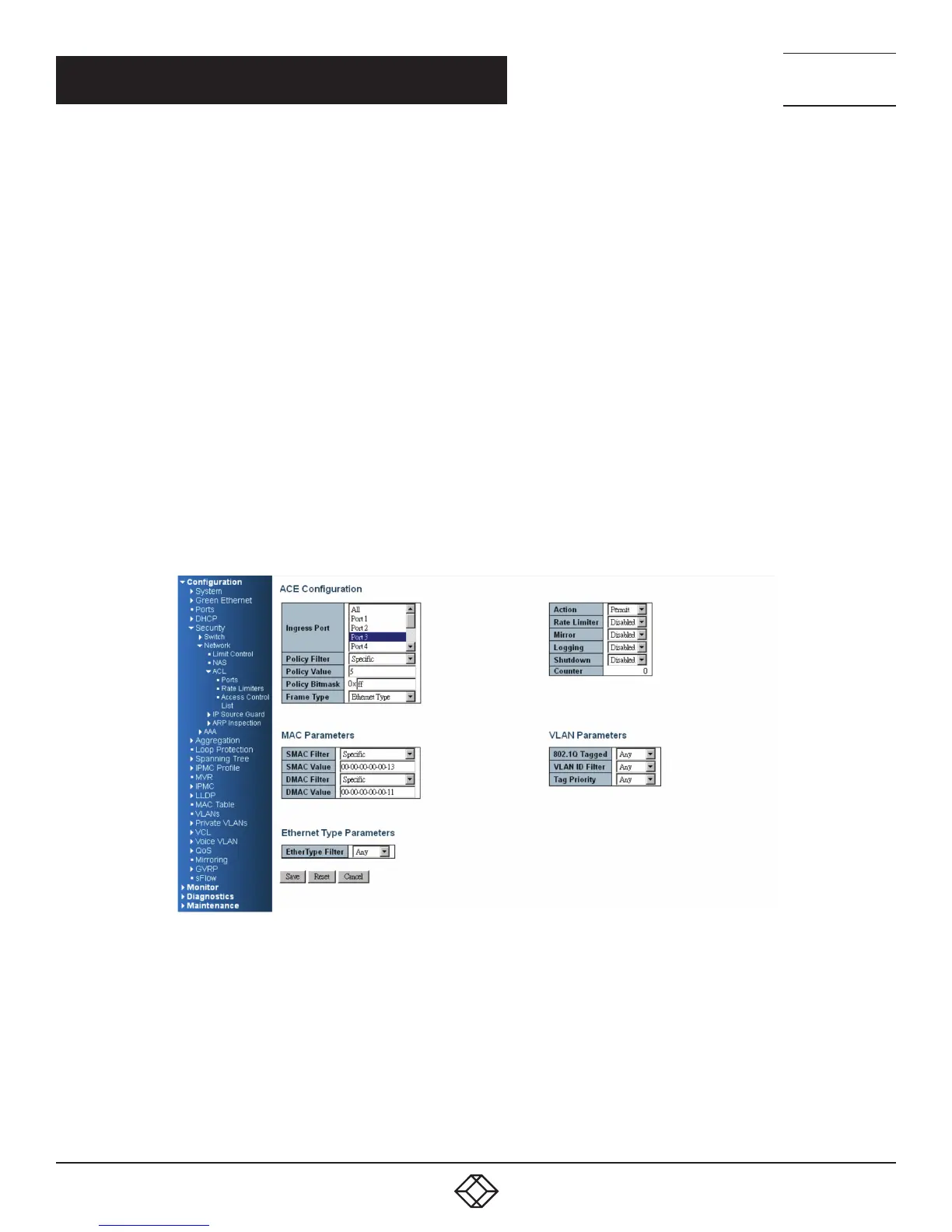

FIGURE 5-13.
