Blackmagicdesign ATEM Series User Manual

Next, check your talkback. Have the switcher operator and camera operators speak to each
other using their ‘press to talk’ buttons and headsets.
If you are using an ATEM switcher, tally signals are sent over the SDI connection. To make sure
tally is working, check the camera number on ATEM Camera Converters and make sure they
match the camera numbers on the ATEM switcher. For more information, refer to the ‘Using
ATEM Camera Converter/Setting the Camera number’ section of this manual.
If you experience any trouble setting up your ATEM Converters, please visit the
Blackmagic Design support center at www.blackmagicdesign.com/support where you can often
find answers quickly by browsing the Blackmagic Forum. Here you can read information and
comments from other experienced users and Blackmagic Design staff. You can also find
contact information for your local Blackmagic Design support team.

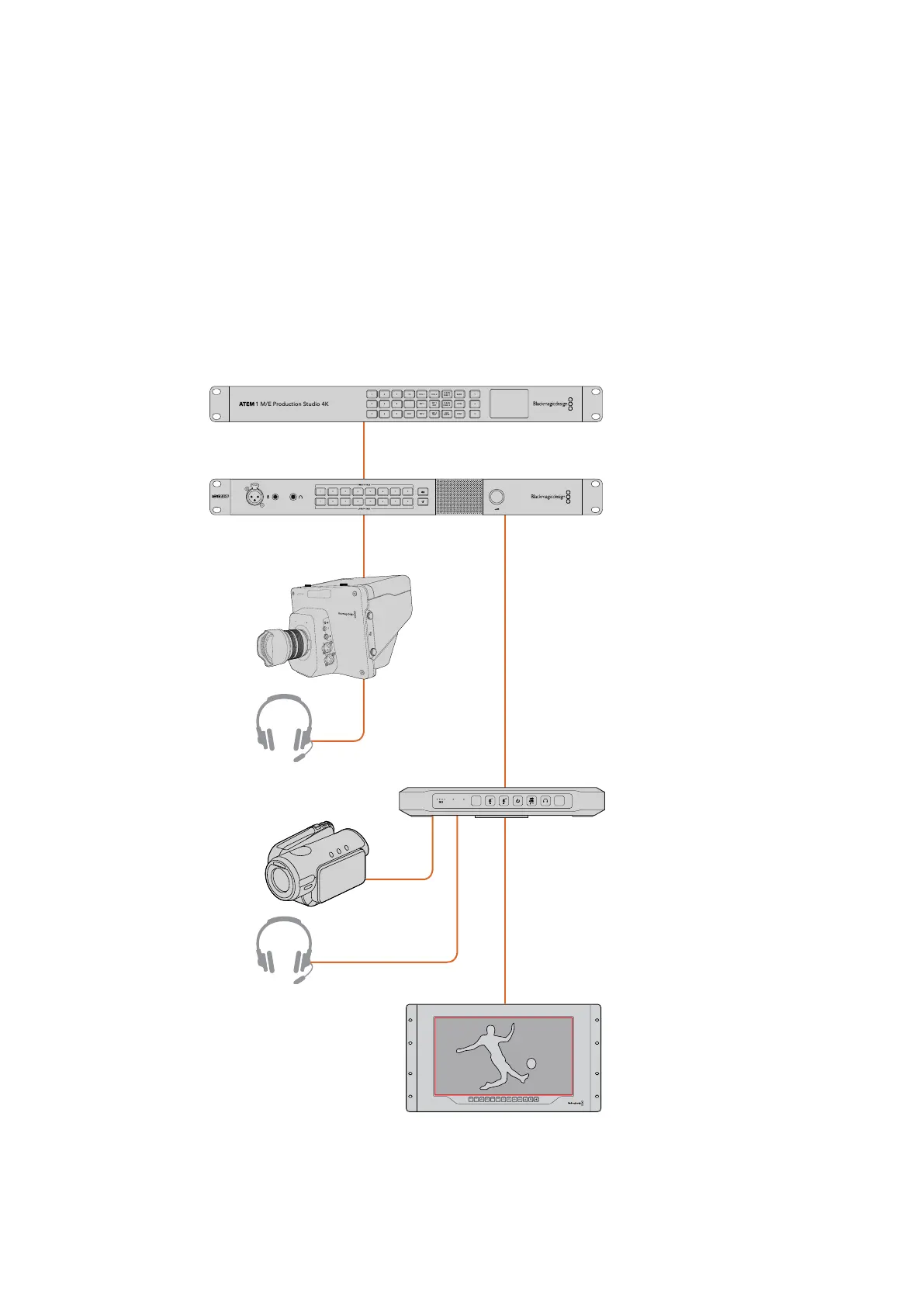

Refer to the ‘Connection Diagrams’ section for more information on how to connect your ATEM Converters.
INPUT DISP
H/V
DELAY
3D
LUT 1
BLUE
ONLY
ZOOM PEAK
3D
LUT 2
H
MARK
V
MARK
1
1
3
PUSH
2
2
1
3
PUSH
2
1 4 7 10 COL 1 COL 2
CLEAN
FEED 1
BARS 1
2 5 8 MP 1
CLEAN
FEED 2
MP 1
KEY
PVW 2
3 6 9 BLK MP 2
KEY
MASK
MP 2
KEY
PGM 3
1 M/E Production Studio 4K
PUSH
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
PTTPGM
VIDEOOPTICAL
HDMI Camera
Blackmagic Studio
Camera
ATEM Camera
Converter
Monitor
ATEM 1 M/E Production Studio 4K
ATEM Talkback Converter 4K
13Getting Started

Blackmagicdesign ATEM Series Specifications

General

Bit Depth	10-bit
Model	ATEM Series
Inputs	Varies by model (HDMI, SDI, etc.)
Outputs	Varies by model (HDMI, SDI, etc.)
Resolution	Up to 4K (varies by model)
Frame Rate	Up to 60fps (varies by model)
Audio Inputs	XLR (on some models)
Audio Outputs	XLR (on some models)
Dimensions	Varies by model
Weight	Varies by model
Power Supply	External 12V power supply (included)
