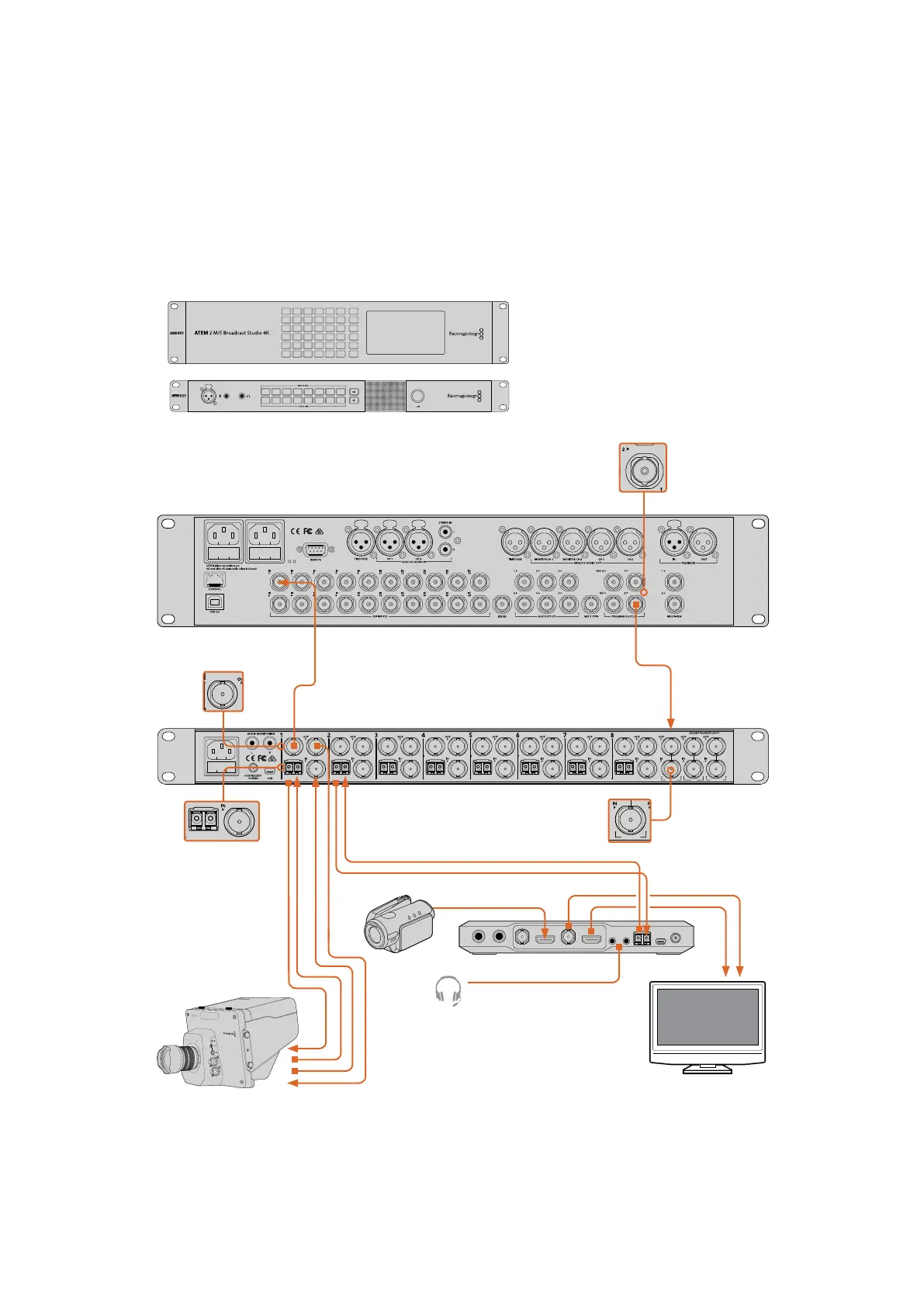

连接示意图
通过
ATEM Talkback Converter 4K
连接至
ATEM
切换台
ATEM Talkback Converter 4K搭配ATEM切换台让您可以获得具有Tally功能的对讲控制，同时可控
制多达8台摄影机。以下图例显示了HD工作流程，使用ATEM Camera Converter光纤连接HDMI摄
影机，外加通过光纤或BNC连接Blackmagic Studio Camera。
PUSHPUSHPUSHPUSH
1 7 13 19 COL 1 BARS AUX 1
2 8 14 20 COL 2
SPR
SRC
AUX 2
3 9 15
KEY
MASK
CLEAN
FEED 1
ME 2
PVW
AUX 3
4 10 16 BLK
CLEAN
FEED 2
ME 2
PGM
AUX 4
5 11 17 MP 1 MP 1K
ME 1
PVW
AUX 5
6 12 18 MP 2 MP 2K
ME 1
PGM
AUX 6
PUSH
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
PUSHPUSHPUSHPUSH
1 7 13 19 COL 1 BARS AUX 1
2 8 14 20 COL 2
SPR
SRC
AUX 2
3 9 15
KEY
MASK
CLEAN
FEED 1
ME 2
PVW
AUX 3
4 10 16 BLK
CLEAN
FEED 2
ME 2
PGM
AUX 4
5 11 17 MP 1 MP 1K
ME 1
PVW
AUX 5
6 12 18 MP 2 MP 2K
ME 1
PGM
AUX 6
PGM SDI MIC H/PHONE
SDI 1 OUT CAM SDI
CAM OPT
OUT/IN
SDI 2 OUT CAM SDI
CAM OPT
OUT/IN
SDI 2 OUT CAM SDI
CAM OPT
OUT/IN
SDI 4 OUT CAM SDI
CAM OPT
OUT/IN
SDI 5 OUT CAM SDI
CAM OPT
OUT/IN
SDI 6 OUT CAM SDI
CAM OPT
OUT/IN
SDI 7 OUT CAM SDI
CAM OPT
OUT/IN
SDI 8 OUT CAM SDI
CAM OPT
OUT/IN
ATEM 2 M/E Broadcast Studio 4K
ATEM Talkback Converter 4K
光纤输入及输出
摄影机1
1
1
3
PUSH
2
2
1
3
PUSH
2
ATEM Talkback Converter
4K SDI 1输出连接至ATEM切
换台摄影机1 SDI输入。
ATEM Talkback Converter
4K BNC或光纤SDI OUT/
IN通过BNC或光纤连接
至Blackmagic Studio
Camera SDI OUT/IN。
ATEM切换台节
目输出。
来自ATEM切换台的
节目输出连接至ATEM
Talkback Converter
4K PGM SDI IN。
