THE AUTOMATIC TRANSMISSION

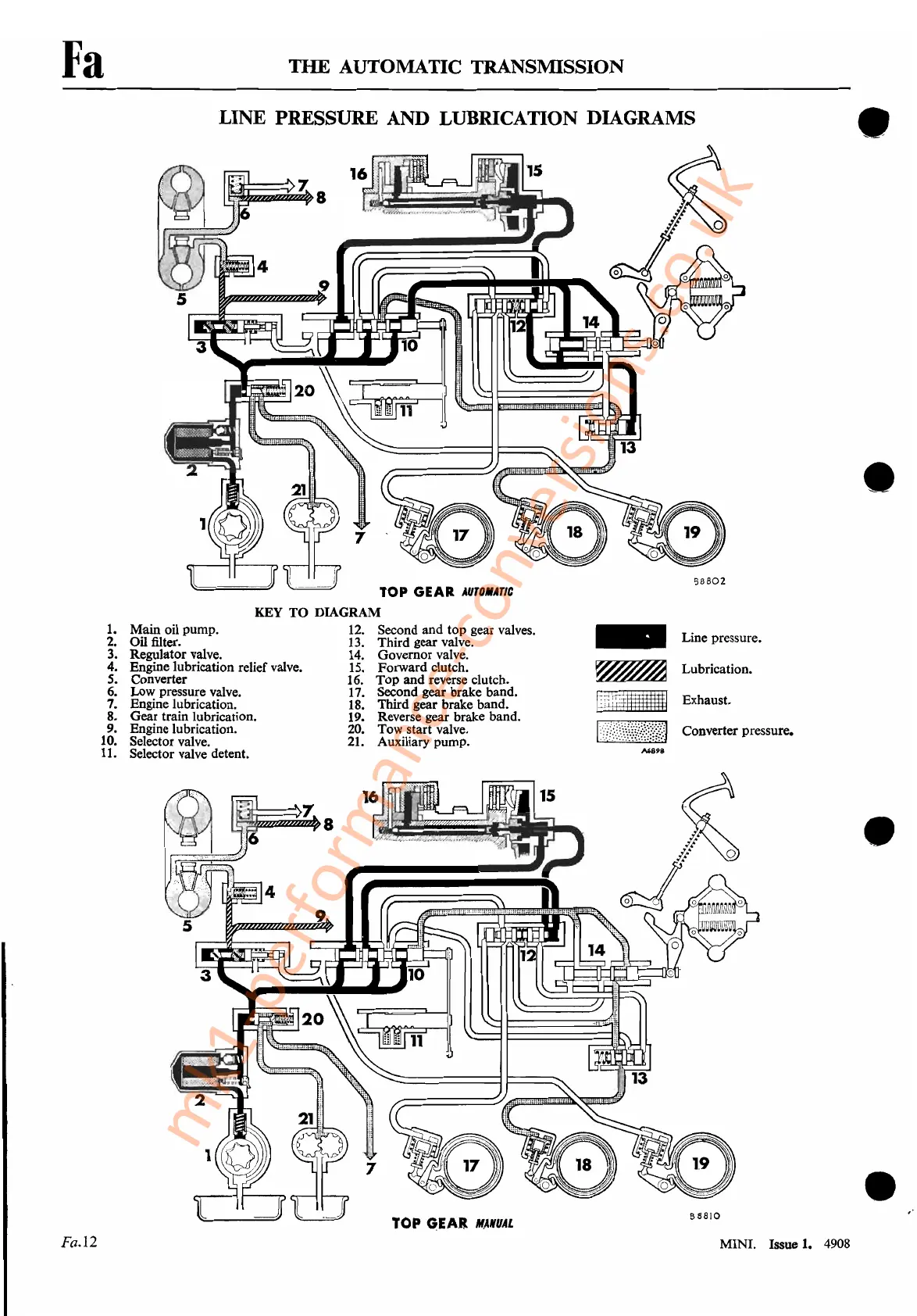

LINE PRESSURE AND LUBRICATION DIAGRAMS
•
•
•
•
88810
MINI. Issue 1. 4908
_ Line pressure.
~ Lubrication.
~ Exhaust.
l::./:..)\){:{}}] Converter pressure.
A6898
TOP ~EAR M.ANUAL
TOP GEAR AUTOMATIC
KEY TO DIAGRAM
12. Second and top gear valves.
13. Third gear valve.
14. Governor valve.
15. Forward clutch.
16.
Top and reverse clutch.
17. Second gear brake band.
18. Third gear brake band.
19. Reverse gear brake band.
20. Tow start valve.
21. Auxiliary pump.
1. Main oil pump.
2. Oil filter.
3. Regulator valve.
4. Engine lubrication relief valve.
s. Converter
6. Low pressure valve.
7. Engine lubrication.
8. Gear train lubrication.
9. Engine lubrication.
10. Selector valve.
11. Selector valve detent.
