THE AUTOMATIC TRANSMISSION
•

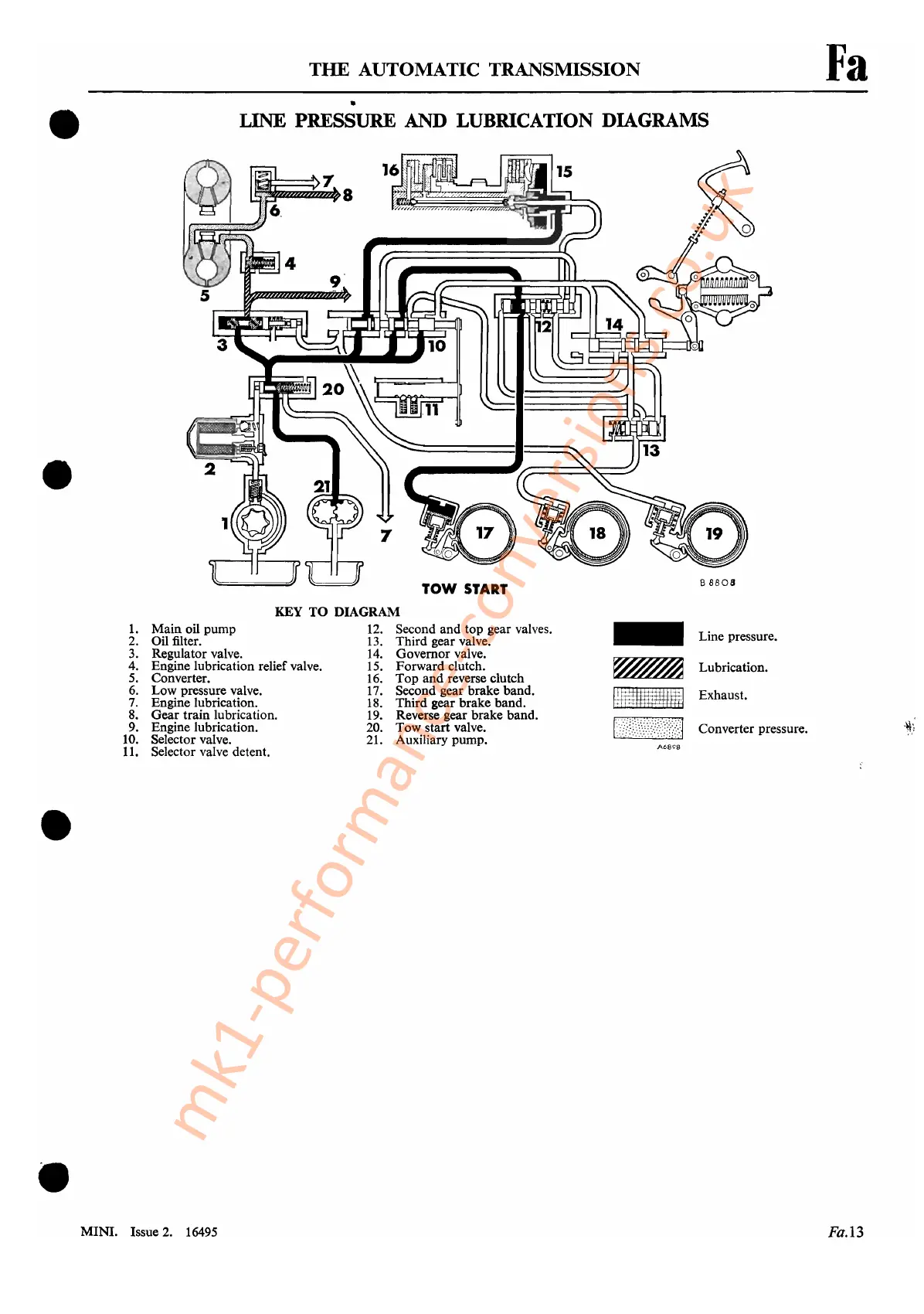

LINE PRESSURE AND LUBRICATION DIAGRAMS
Fa
•
TOW
START
B
880B
_ Line pressure.
~
Lubrication.
trtm-mmmw
Exhaust.
L::./(::·\\()\//'1
Converter pressure.
A6898
KEY
TO
DIAGRAM
12.
Second and top gear valves.
13.
Third gear valve.
14.
Governor valve.
15.
Forward clutch.
16.
Top
and reverse clutch
17. Second gear brake band.
18.
Third gear brake band.
19.
Reverse gear brake band.
20. Tow start valve.
21.
Auxiliary pump.
1.
Main oil pump
2.
Oil filter.
3.
Regulator valve.
4. Engine lubrication relief valve.
5.
Converter.
6.
Low pressure valve.
7.
Engine lubrication.
8. Gear train lubrication.
9. Engine lubrication.
10. Selector valve.
11.
Selector valve detent.
•
•
MINI.
Issue
2.
16495
Fa.
13
