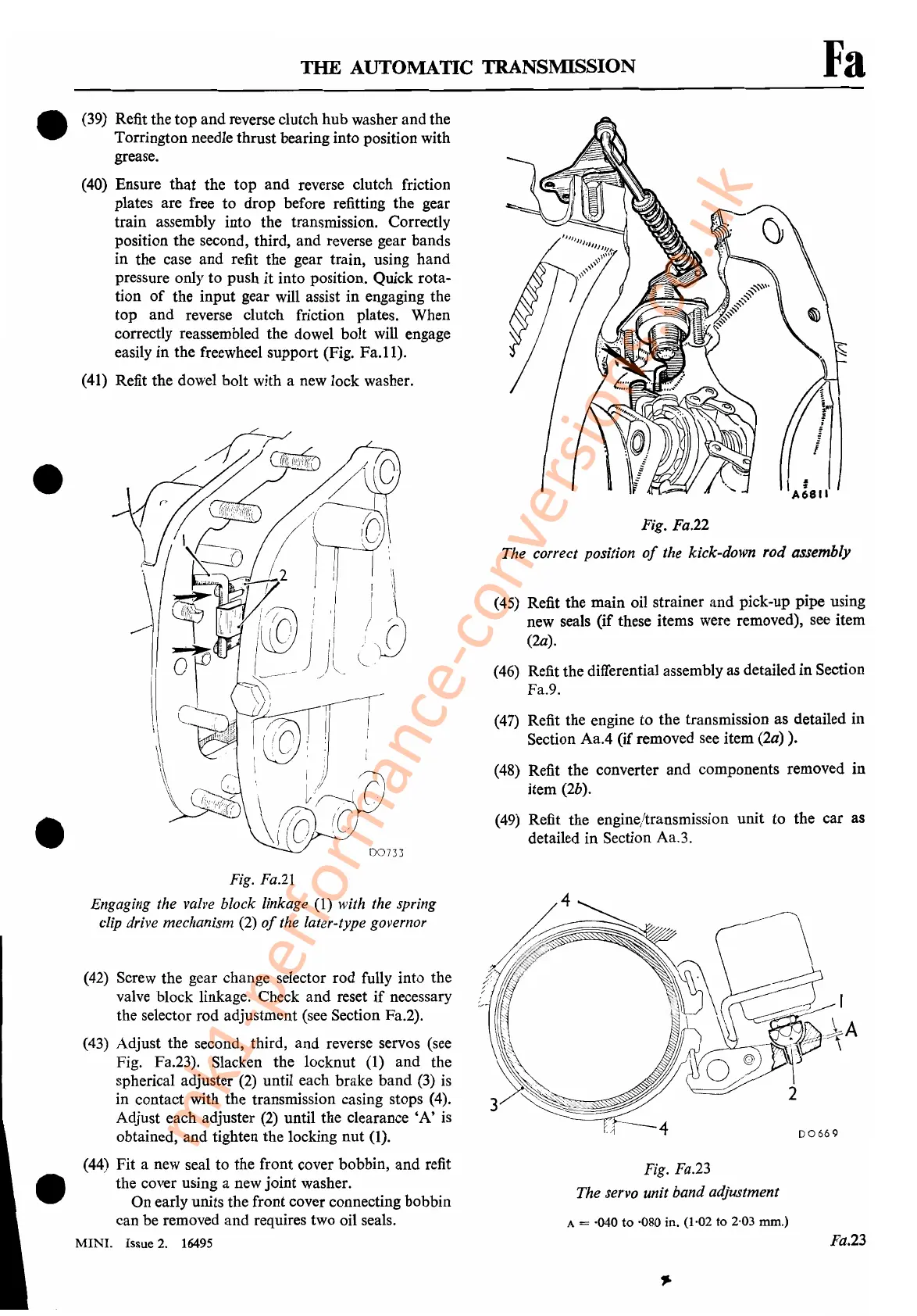

THE
AUTOMATIC TRANSMISSION
•
•
•
(39)
Refit the top and reverse clutch hub washer and the
Torrington needle thrust bearing into position with
grease.
(40)
Ensure that the top and reverse clutch friction
plates are free to drop before refitting the gear
train assembly into the transmission. Correctly
position the second, third, and reverse gear bands
in the case and refit the gear train, using hand
pressure only to push it into position. Quick rota-
tion
of
the input gear will assist in engaging the
top and reverse clutch friction plates. When
correctly reassembled the dowel bolt will engage
easily in the freewheel support (Fig.
Fa.ll).
(41)
Refit the dowel bolt with a new lock washer.
Fa
Fig. Fa.22
The correct position
of
the kick-down
rod
assembly
(45)
Refit the main oil strainer and pick-up pipe using
new seals (if these items were removed), see item
(2a).
(46)
Refit the differential assembly as detailed in Section
Fa.9.
(47)
Refit the engine to the transmission as detailed in
Section AaA (if removed
see
item (2a».
(48)
Refit the converter and components removed in
item
(2b).
(49)
Refit the engine/transmission unit to the car as
detailed in Section Aa.3.
•
Fig. Fa.21
Engaging the valve block linkage
(1) with the spring
clip drive mechanism
(2)
of
the later-type governor
(42)
Screw the gear change selector rod fully into the
valve block linkage. Check and reset
if
necessary
the selector rod adjustment (see Section Fa.2).
(43)
Adjust the second, third, and reverse servos (see
Fig. Fa.23). Slacken the locknut
(1) and the
spherical adjuster
(2)
until each brake band
(3)
is
in contact with the transmission casing stops (4).
Adjust each adjuster
(2)
until the clearance
'A'
is
obtained, and tighten the locking nut (1).
(44)
Fit a new seal to the front cover bobbin, and refit
the cover using a new joint washer.
On early units the front cover connecting bobbin
can be removed and requires two oil seals.
MINI. Issue
2.
16495
Fig. Fa.23
The servo unit band adjustment
A = ·040
to
·080 in. (1,02
to
2·03 mm.)
Fa.23
