THE
CLUTCH
•
•
•
•
Reassembling
Carry
out
items (5)
to
(8) in the reverse order.
Refitting
Reverse the removal procedure items (1)
to
(4) and
bleed the system.
Section E.6
CLUTCH
(Diaphragm Spring Type)
A diaphragm spring replaces the six conventional coil
pressure springs
on
this clutch assembly.
Remove
and
refit the flywheel
and
clutch as detailed
in Section A.28.
MINI. Issue 1.
4908
E

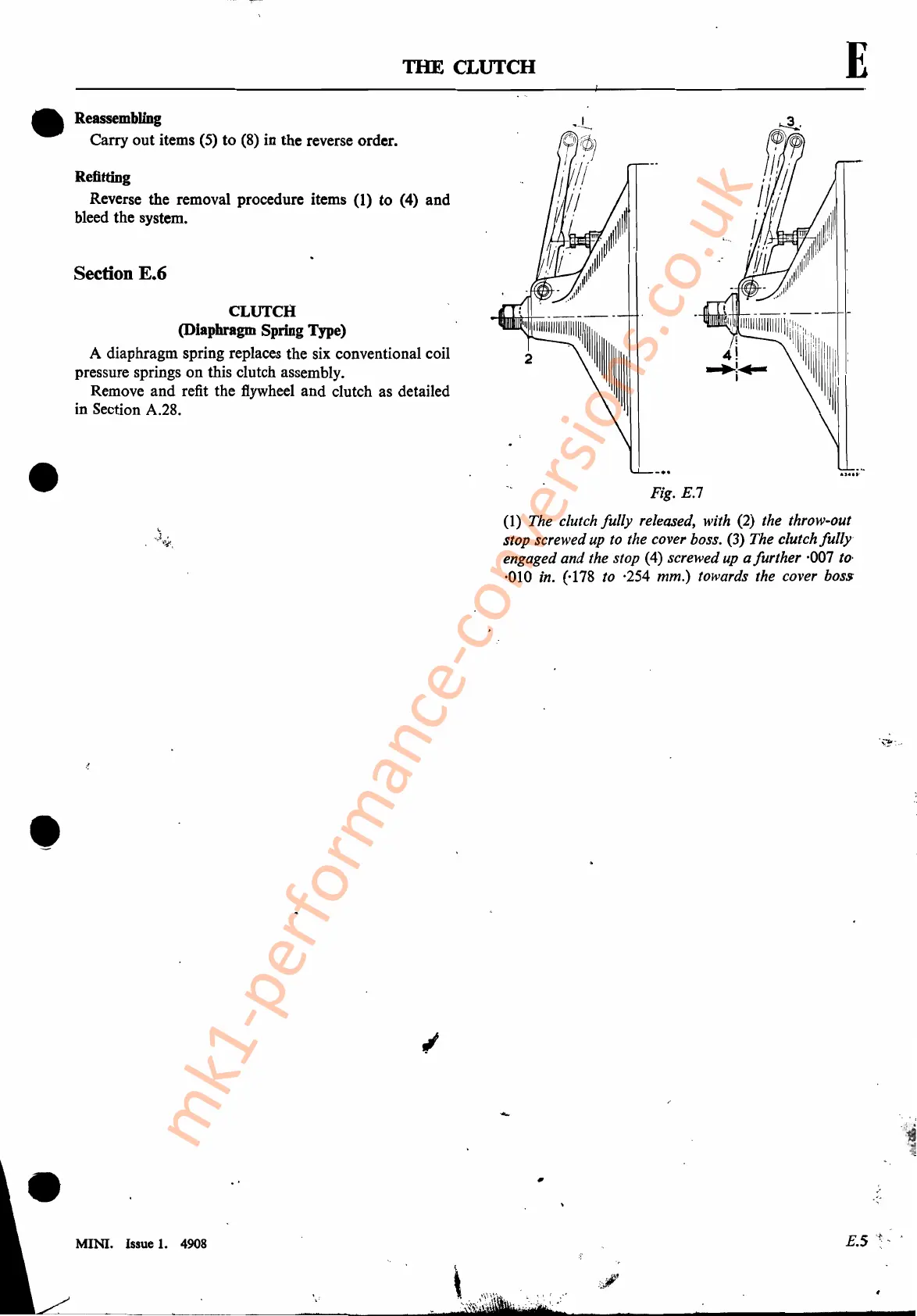

Fig. E.7
(1) The clutch fully re/eased, with (2) the throw-out
stop screwed
up
to the cover boss. (3) The clutch
fully
engaged and the stop (4) screwed up a further ·007
to-
·010 in. (,178 to ·254 mm.) towards the cover boss
£.5
"~",~
