THE TRANSl\'IISSION

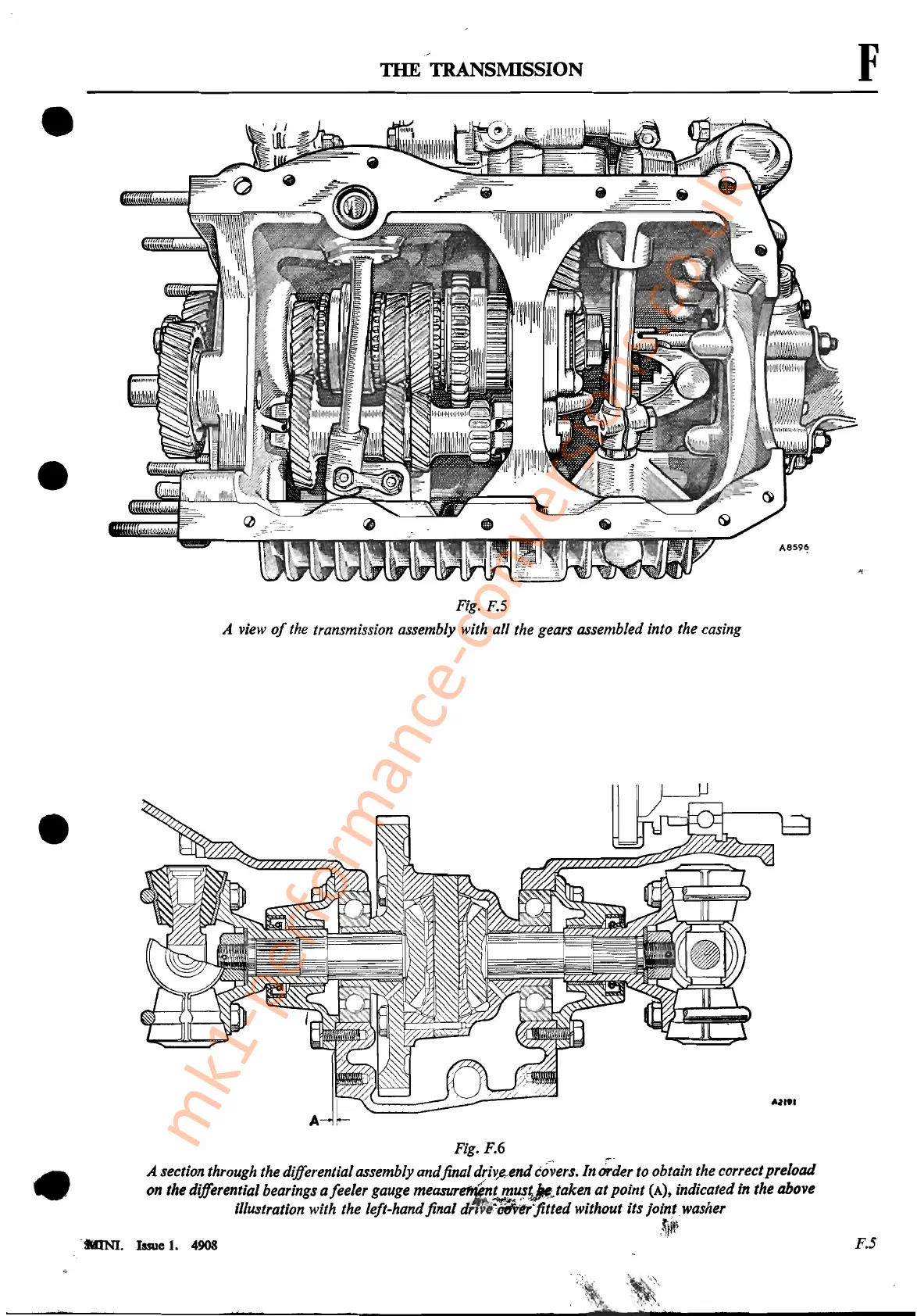

Fig. F.5
A view of the transmission assembly with all the gears assembled into the casing
Fig. F.6
A section through the differential assembly andfinal drivftend covers. In Jrder to obtain the correctpreload
on the differential bearings afeeler gauge measure~~~ .. 1J!t)M~taken at point (A), indicated in the above
illustration with the left-handfinal drW!:-CiffiVtr'fitted without its joint. washer
,~ff~
~mNI. Issue 1. 4908
F
F.5
