THE TRANSMISSION
F
,"
L
A377SAW
~----F
•

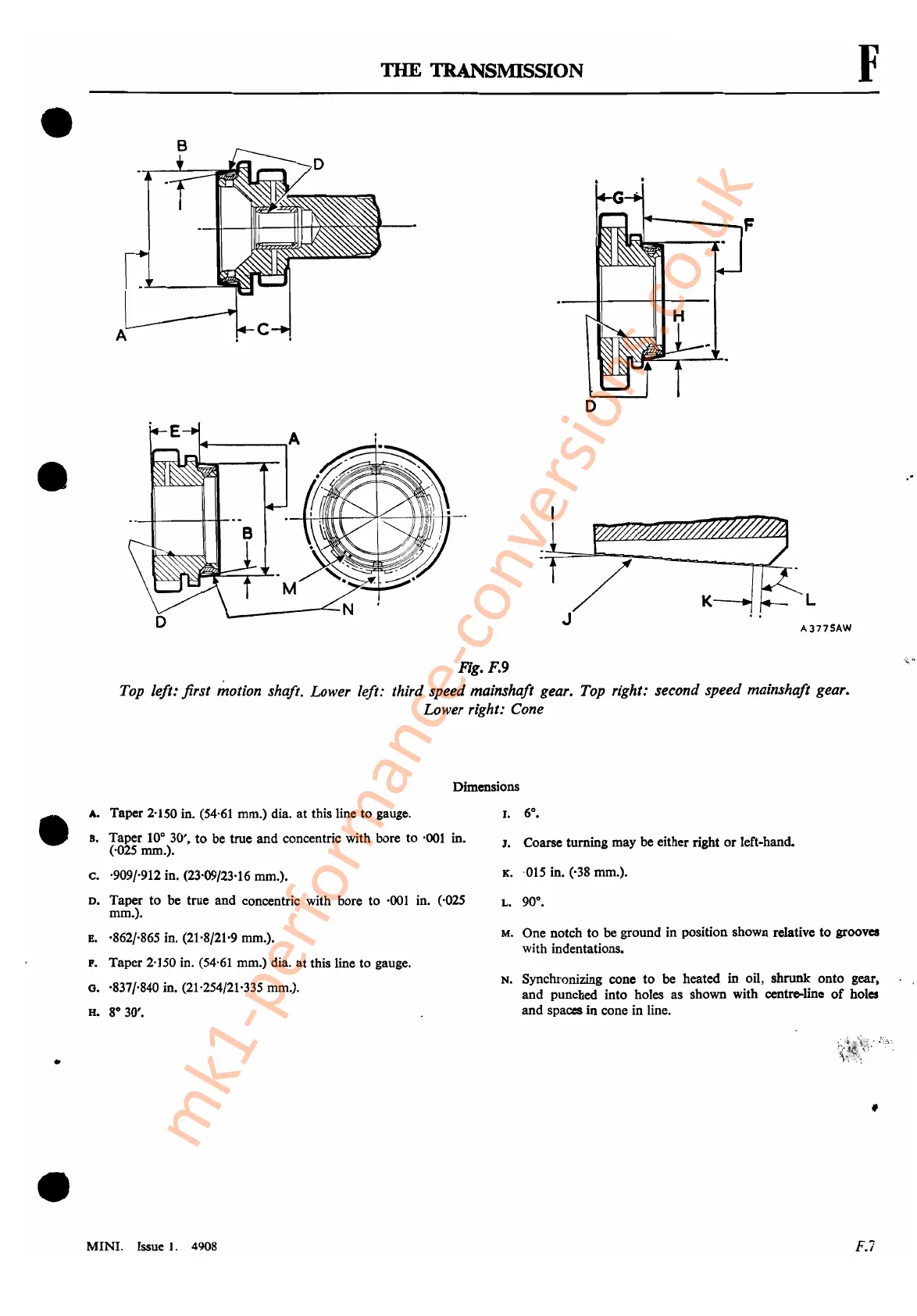

Fig. F.9
Top
left: first motion shaft. Lower left: third speed malnshaft gear.
Top
right: second speed malnshaft gear.
Lower right:
Cone
Dimensions
•
A.
Taper 2'150 in.
(54'61
mm.) dia. at this line to gauge.
B. Taper
10°
30', to be true and concentric with bore to
'001
in.
('025 mm.).
c. ·909/'912 in. (23·09/23'16 mm.).
D. Taper to be true and concentric with bore to ·001
in.
('025
mm.).
E. '862/·865 in. (21·8/21'9 mm.);
P.
Taper 2·150 in.
(54'61
mm.) dia. at this line to gauge.
G.
'837/'840 in. (21'254/21'335 mm.).
H.
8° 30'.
1. Coarse turning may
be
either right or left-hand.
K.
·015
in. ('38 mm.).
M.
One notch to be ground in position shown relative to grooves
with indentations.
N.
Synchronizing cone to be heated in oil, shrunk onto gear.
and punched into holes as shown with centre-line
of
holes
and spaces
in
cone in line.
•
•
•
MINI.
Issue
1.
4908
F.7
