1) The rupture of pneumatic system air pipe will cause actuator such as
cylinder to move.
2) Even if the main power switch is in the "OFF" position, the power supply
line and main power switch incoming terminals are still live.
3) Even if the main power switch is in the "OFF" position, servo drivers,
frequency converter and switching power supply may still be live
4) Burn hazards arising from the surface temperature of servo driver and
frequency converter heatsink.
5) The surface temperature of the newly cut workpiece is high, which may
cause burns.
2.7.2 Safety labels
Safety labels give informations of the machine’s potential risks. Before operation, be familiar with all safety labels.
The layouts of safety labels are shown in Figure 2-3.

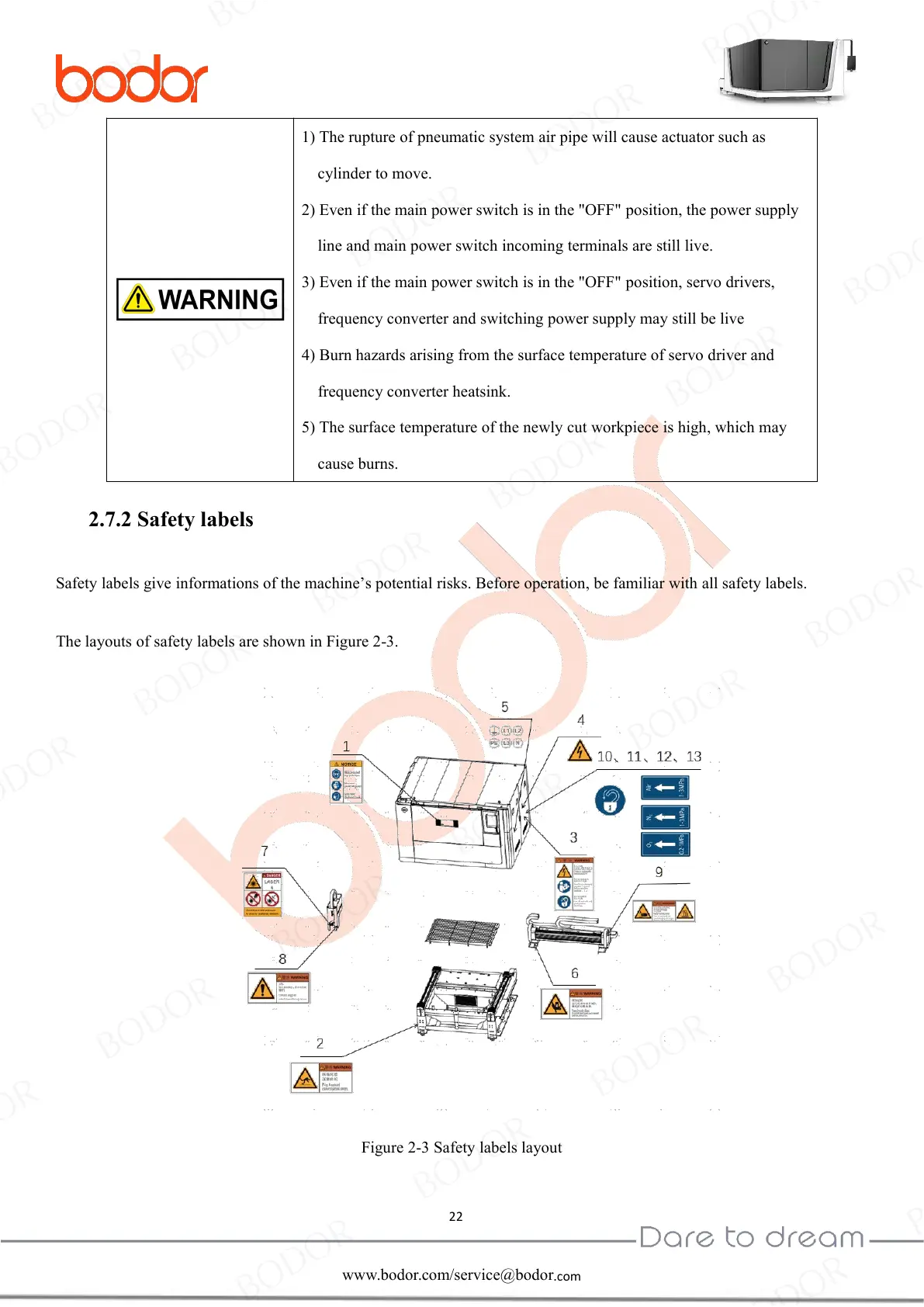

Figure 2-3 Safety labels layout
