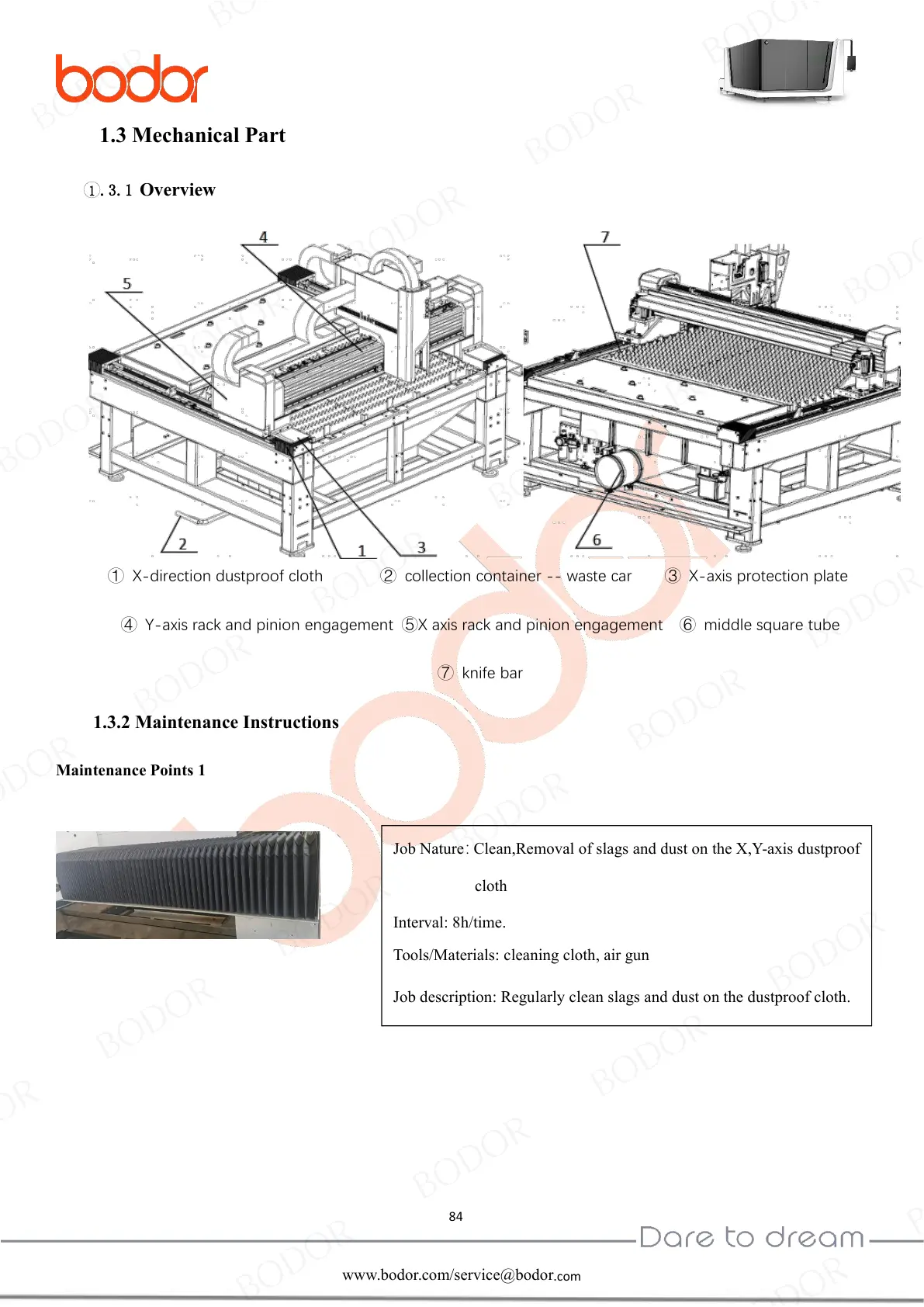

1.3 Mechanical Part
1 .3.1 Overview
① X-direction dustproof cloth ② collection container -- waste car ③ X-axis protection plate
④ Y-axis rack and pinion engagement ⑤X axis rack and pinion engagement ⑥ middle square tube
⑦ knife bar
1.3.2 Maintenance Instructions
Maintenance Points 1
Job Nature
：
Clean,Removal of slags and dust on the X,Y-axis dustproof
cloth
Interval: 8h/time.
Tools/Materials: cleaning cloth, air gun
Job description: Regularly clean slags and dust on the dustproof cloth.
