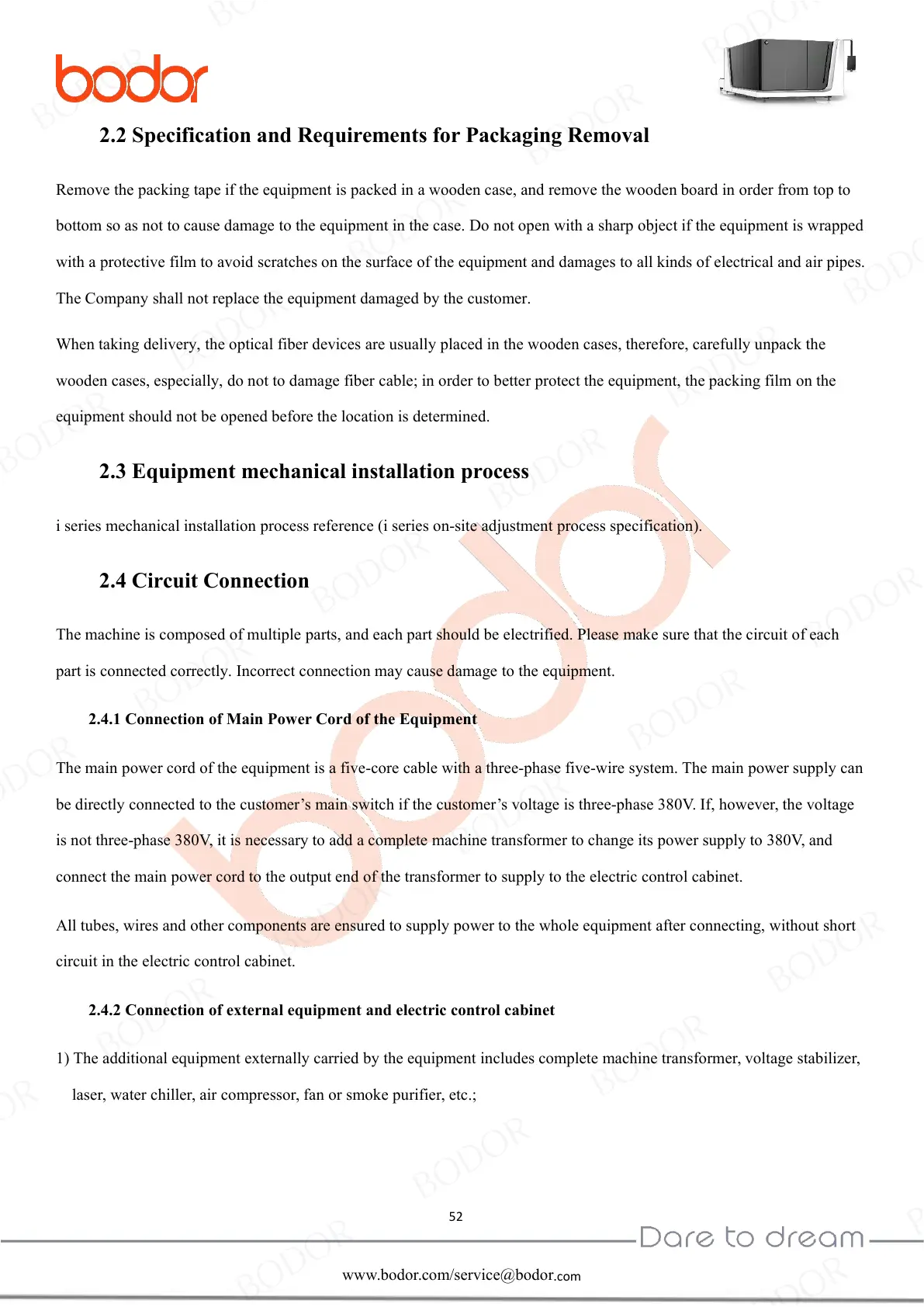

2.2 Specification and Requirements for Packaging Removal
Remove the packing tape if the equipment is packed in a wooden case, and remove the wooden board in order from top to
bottom so as not to cause damage to the equipment in the case. Do not open with a sharp object if the equipment is wrapped
with a protective film to avoid scratches on the surface of the equipment and damages to all kinds of electrical and air pipes.
The Company shall not replace the equipment damaged by the customer.
When taking delivery, the optical fiber devices are usually placed in the wooden cases, therefore, carefully unpack the
wooden cases, especially, do not to damage fiber cable; in order to better protect the equipment, the packing film on the
equipment should not be opened before the location is determined.
2.3 Equipment mechanical installation process
i series mechanical installation process reference (i series on-site adjustment process specification).
2.4 Circuit Connection
The machine is composed of multiple parts, and each part should be electrified. Please make sure that the circuit of each
part is connected correctly. Incorrect connection may cause damage to the equipment.
2.4.1 Connection of Main Power Cord of the Equipment
The main power cord of the equipment is a five-core cable with a three-phase five-wire system. The main power supply can
be directly connected to the customer’s main switch if the customer’s voltage is three-phase 380V. If, however, the voltage
is not three-phase 380V, it is necessary to add a complete machine transformer to change its power supply to 380V, and
connect the main power cord to the output end of the transformer to supply to the electric control cabinet.
All tubes, wires and other components are ensured to supply power to the whole equipment after connecting, without short
circuit in the electric control cabinet.
2.4.2 Connection of external equipment and electric control cabinet
1) The additional equipment externally carried by the equipment includes complete machine transformer, voltage stabilizer,
laser, water chiller, air compressor, fan or smoke purifier, etc.;
