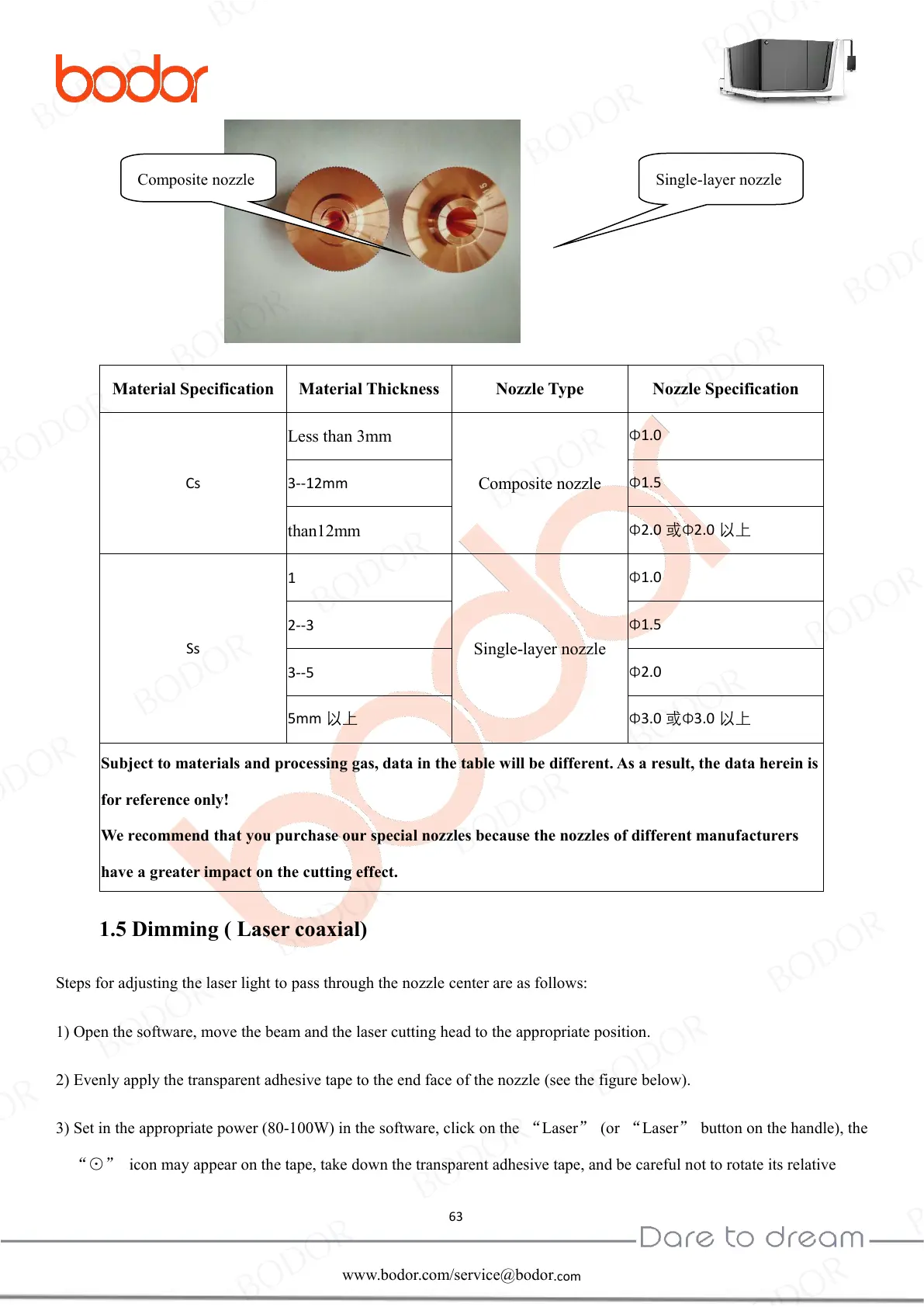

Material Specification
Material Thickness
Nozzle Type
Nozzle Specification
Cs
Less than 3mm
Composite nozzle
Φ1.0
3--12mm
Φ1.5
than12mm
Φ2.0 或Φ2.0 以上
Ss
1
Single-layer nozzle
Φ1.0
2--3
Φ1.5
3--5
Φ2.0
5mm 以上
Φ3.0 或Φ3.0 以上
Subject to materials and processing gas, data in the table will be different. As a result, the data herein is
for reference only!
We recommend that you purchase our special nozzles because the nozzles of different manufacturers
have a greater impact on the cutting effect.
1.5 Dimming ( Laser coaxial)
Steps for adjusting the laser light to pass through the nozzle center are as follows:
1) Open the software, move the beam and the laser cutting head to the appropriate position.
2) Evenly apply the transparent adhesive tape to the end face of the nozzle (see the figure below).
3) Set in the appropriate power (80-100W) in the software, click on the “Laser” (or “Laser” button on the handle), the
“⊙” icon may appear on the tape, take down the transparent adhesive tape, and be careful not to rotate its relative
Composite nozzle
Single-layer nozzle
