60 en | Mechanical installation of Contribution Devices DICENTIS
2021.01 | V2.2 |
Hardware Installation Manual
Bosch Security Systems B.V.

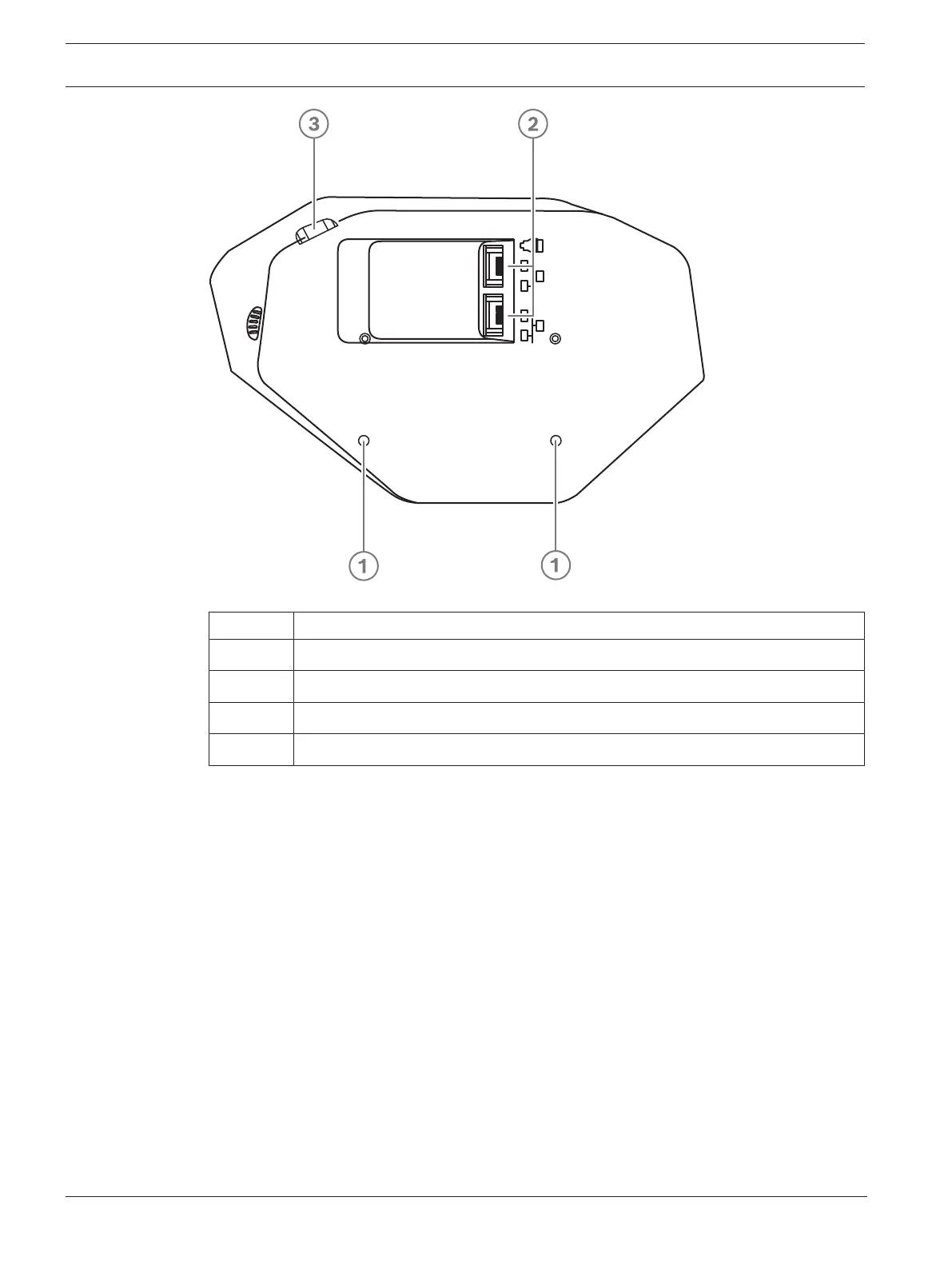

Figure7.4: Bottom view DICENTIS devices (DCNM-D / DCNM-DVT / DCNM-DSL / DCNM-DE)
Item Description
1 Screw insert for fixed installation.
2 2x RJ45 connection input/output for system power cable.
3 Cable guides.
4 USB connector, for future use (DCNM-MMD / DCNM-MMD2 only).
Refer to
– DICENTIS System Cable Assemblies, page 38
– DCNM-CB250-I System Installation Cable, page 42
