3.19.6 Input recording
Settings concerning input recording.

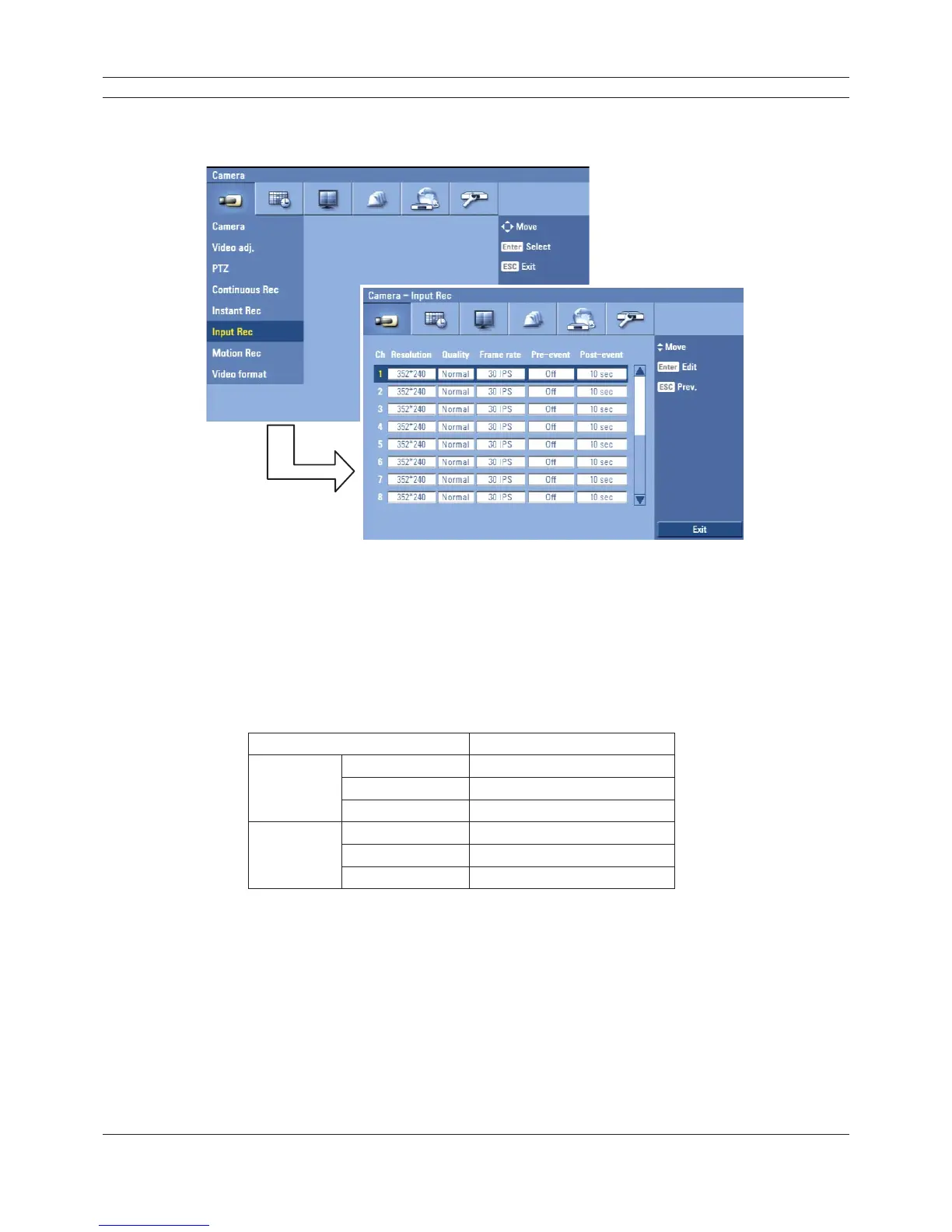

Figure 3.20 Input recording setup menu
• Ch: Displays the channel number.
• Resolution: Selects the recording resolution.
• Quality: Selects the recording picture quality (Lowest, Low, Normal, High or Best).
• Frame rate: Selects the frame rate. The frame rate is the number of recorded frames per
second. According to resolution, the frame rate is set automatically. If you wish to set
manually, refer to the below table.
Resolution Frame rate
NTSC
352*240 1, 3, 5, 7.5, 15, 20, 30
704*240 1, 3, 5, 7.5, 15
704*480 1, 3, 5, 7.5
PAL
352*288 1, 3, 5, 6, 12.5, 20, 25
704*288 1, 3, 5, 6, 12.5
704*576 1, 3, 5, 6
Table 3.9 Frame rate table
• Pre-event: Specify the pre-event recording time that records the situation until the input has
been detected. (Off, 5, 10, 20, 30, 40, 50 sec or 1 min)
• Post-event: Specify the post-event recording time that records the situation after the input has
been detected. (10, 20, 30, 40, 50 sec or 1, 2, 3, 5, 10 min)
