Bosch Rexroth MTA 200 - Ncmz003; Ncmz004; X24.* Transmitter

8.7.2 +NCMZ003

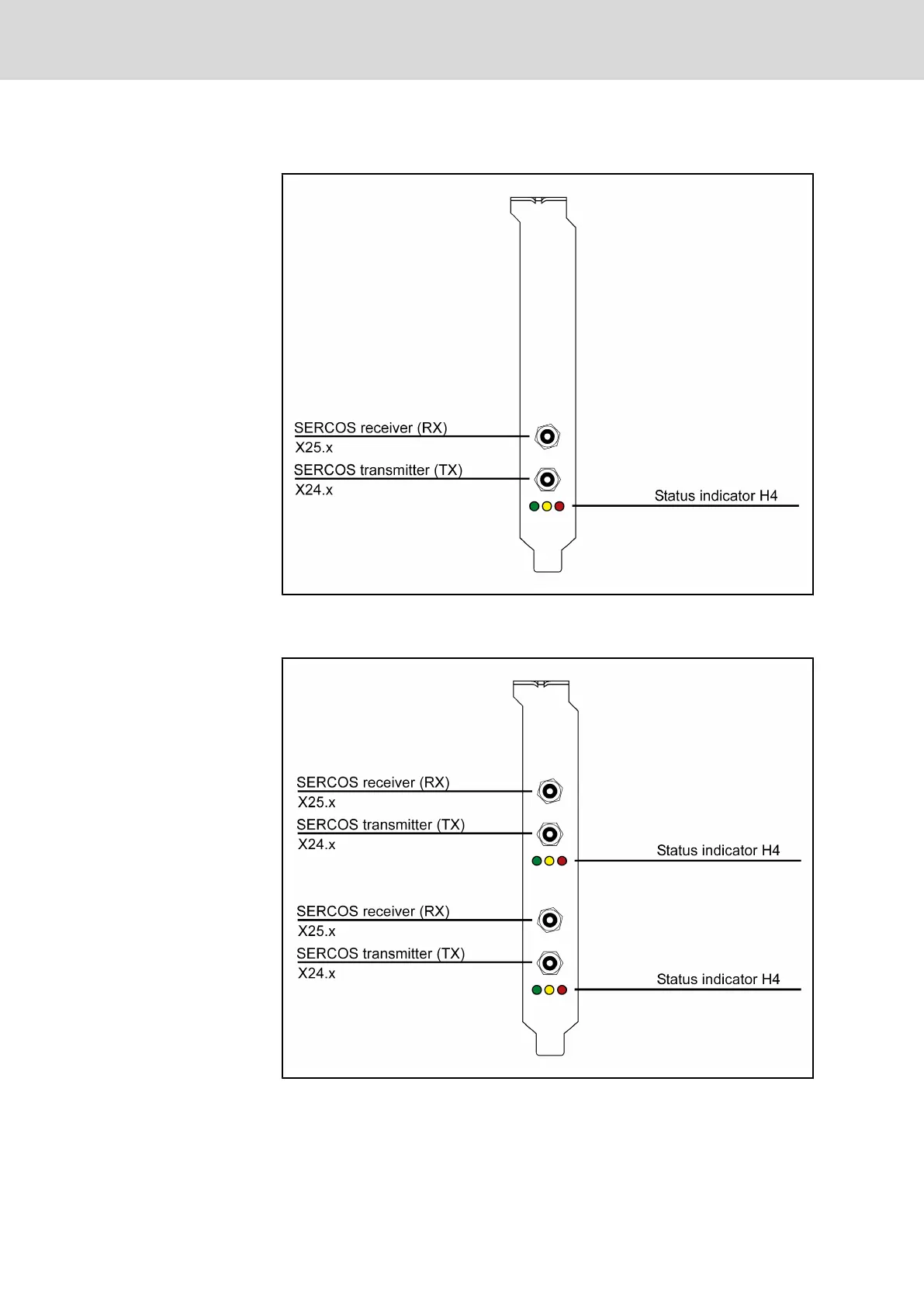

Fig.8-11: Slot bracket for one additional SERCOS ring
8.7.3 +NCMZ004
Fig.8-12: Slot bracket for two additional SERCOS rings
8.7.4 X24.* Transmitter
X24.2 transmitter (TX) 2. SERCOS ring
