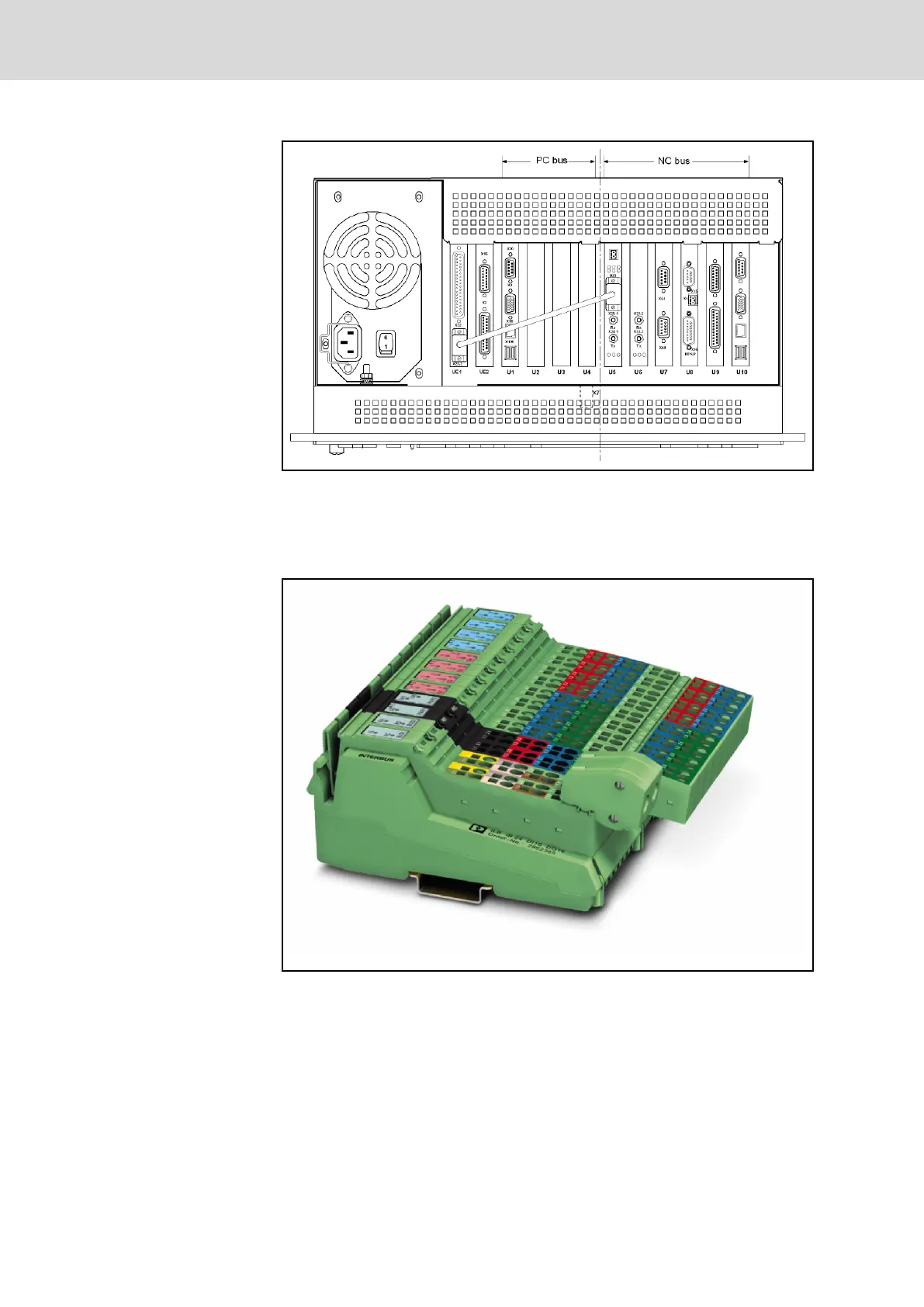

Fig.8-19: Connection of the NCIO card
8.10 Phoenix Block I/O Module ILB IB 24 DI16 DO16
8.10.1 General Information
Fig.8-20: ILB IB 24 DI16 DO16
8.10.2 Connection
For connecting the Phoenix block module, the IKB0032 Rexroth cable can be
used. The 9-pin D-Sub connector is connected to the NCM card, connector X23.
The other end of the cable has free core ends which must be connected at
connector 1 of the module as follows:
104/135 Bosch Rexroth AG | Electric Drives
and Controls
Rexroth MTA 200 | Project Planning Manual
NC Multifunction Card NCM02
