5.5.3 IDE Port
The IDE port of the BTV 20.4 is a vacant port (primary IDE port), to which a
further hard disk or a CD-ROM drive can be connected.
The device connected is to be selected in the BIOS. The Primary Master is set
to "Automatic detection" and the Primary Slave is disabled in the delivery status.
The maximum allowed cable length for IDE cables is 50 cm!

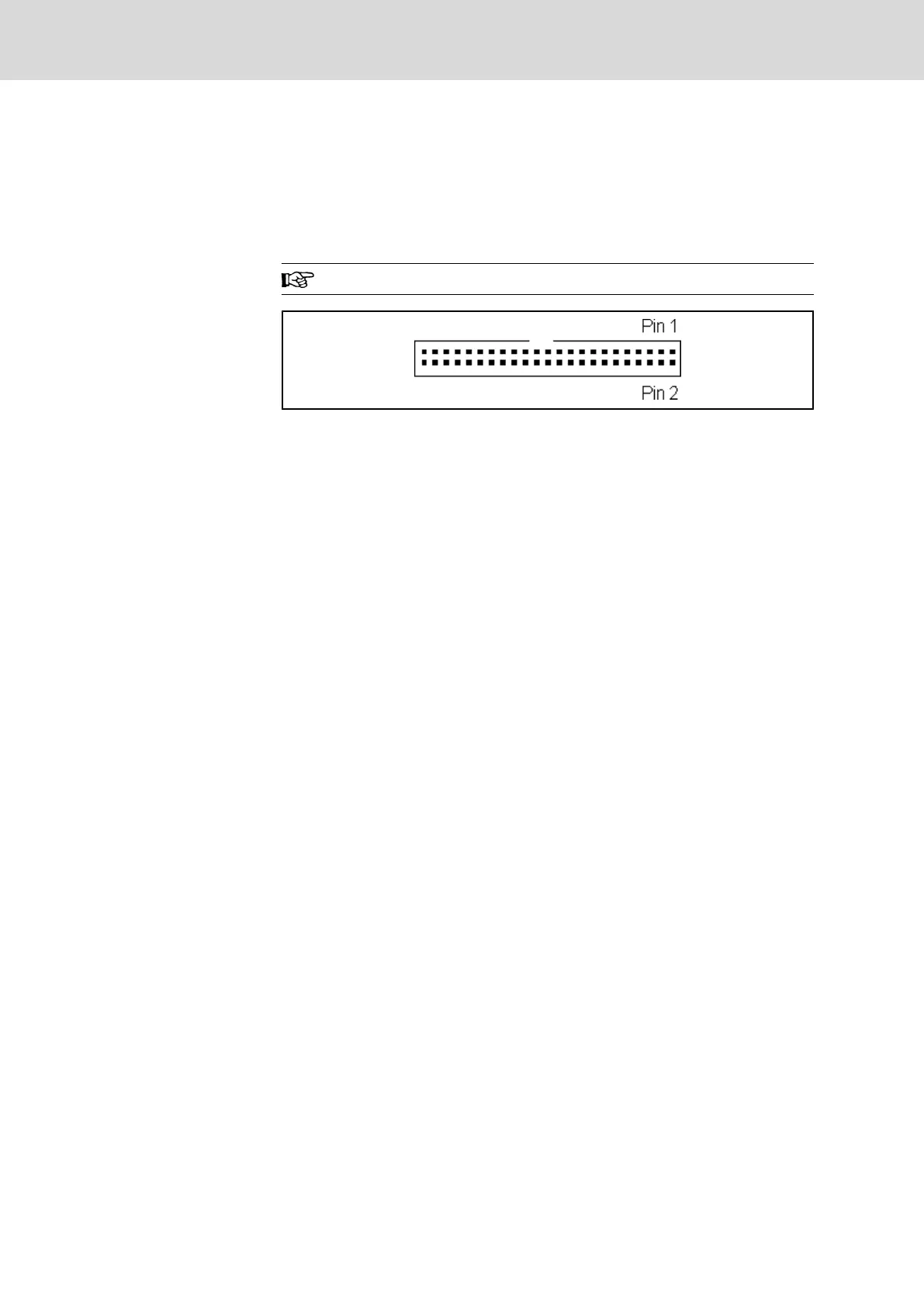

Fig.5-27: Pin assignment
74/135 Bosch Rexroth AG | Electric Drives
and Controls
Rexroth MTA 200 | Project Planning Manual
PC CPU Configuration -45
