Bosch Rexroth MTA 200 - Connection to MTS-P0 X.2 (BTV 20)

Connection to MTS-P0x.2 (BTV 20)

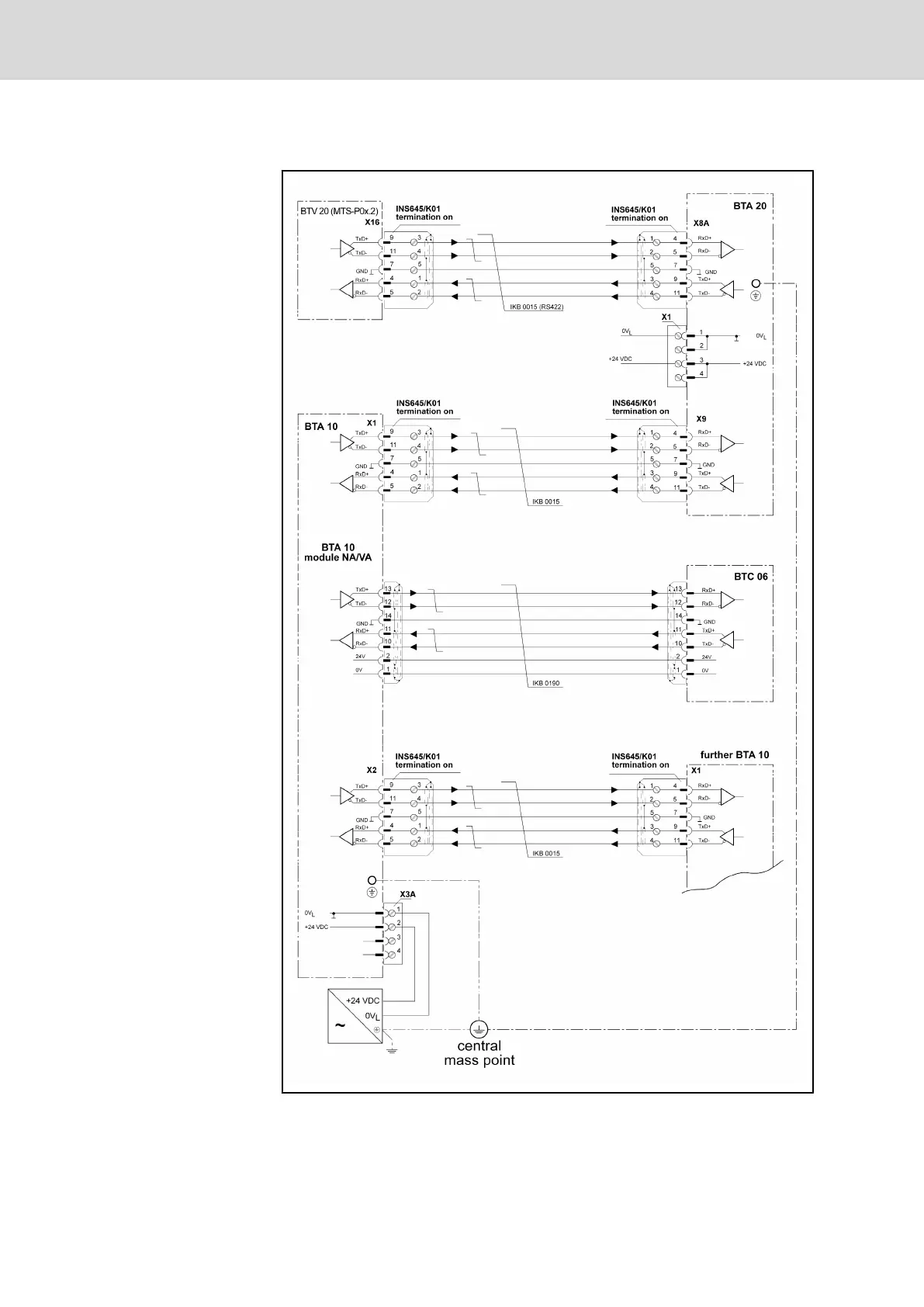

Fig.4-44: Connecting a BTA 10/20 to a BTV 20
52/135 Bosch Rexroth AG | Electric Drives
and Controls
Rexroth MTA 200 | Project Planning Manual
Machine Operator Terminal BTV 20.4A
