7 PC CPU Configuration -44
7.1 Brief Description

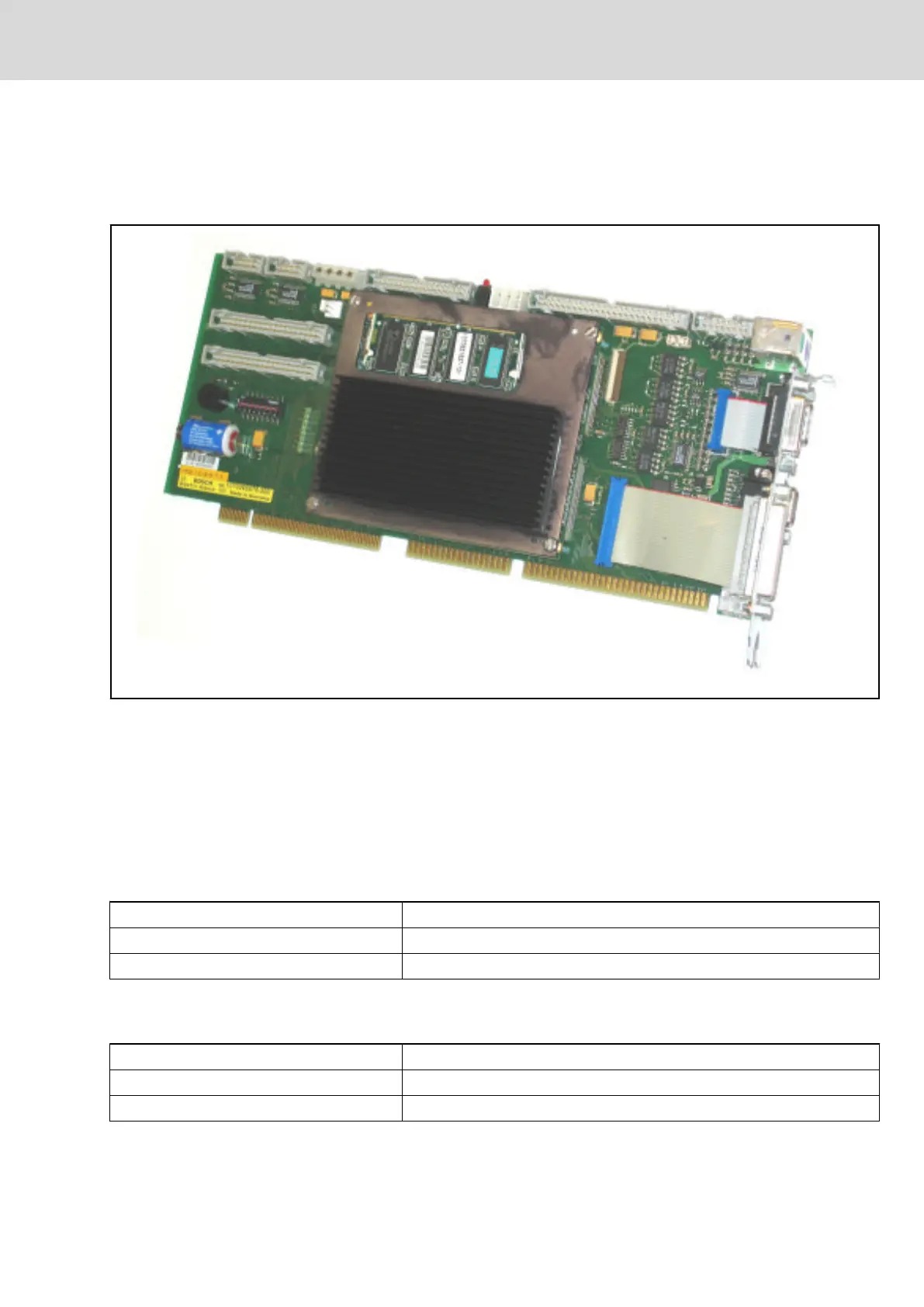

Fig.7-1: Slot CPU card
The NC has the same appearance as the PC CPU described in chapter 5 "PC
CPU Configuration -45" on page 65 und chapter 6 "PC CPU Configuration
-55" on page 75. However, it contains a different processor and memory module
and a different BIOS setting. The peripherals contained on the card for HD/FD,
serial interface and Ethernet are not used and are disabled via BIOS.
7.2 Technical Data
7.2.1 Electrical Specifications
Voltage supply +5, +12 V (+/- 3%)
Power consumption 10-20 W typically (depending on the processor type)
Battery +3.6 volt lithium battery, size ½ AA)
Fig.7-2: Electrical specifications
7.2.2 CPU and Memory Specification
Processor INTEL, Mobile Pentium III min. 400 MHz
CPU Clock Rate Min. 400 MHz
System Clock Rate 100 MHz frontside bus
