4.7.5 Application Examples

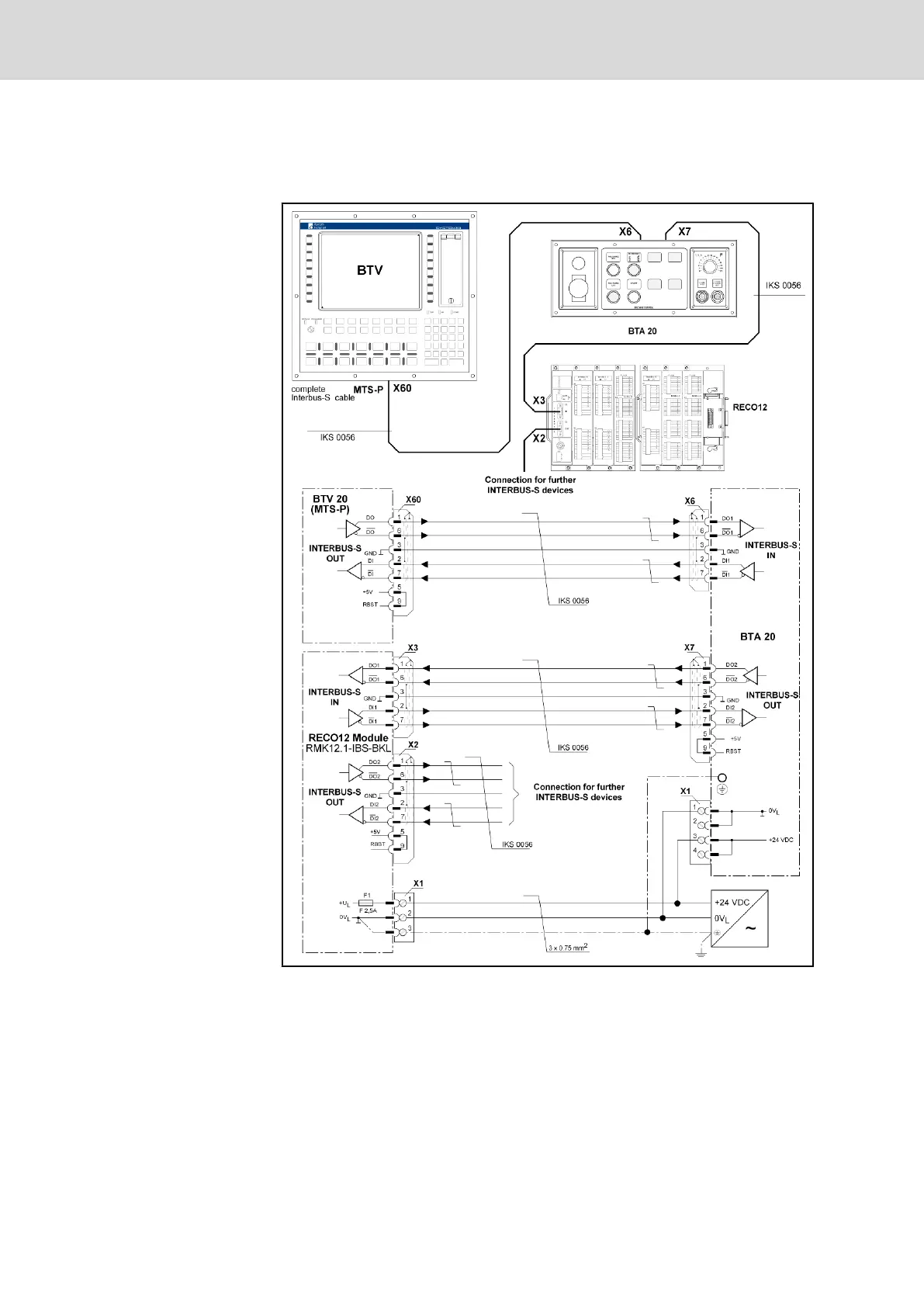

Application Example for BTV 20.4A with INTERBUS Switch
Fig.4-42: INTERBUS-S connection example
50/135 Bosch Rexroth AG | Electric Drives
and Controls
Rexroth MTA 200 | Project Planning Manual
Machine Operator Terminal BTV 20.4A
