9.6 PROFIBUS DP Connection
9.6.1 Brief Description Master and Slave Connection

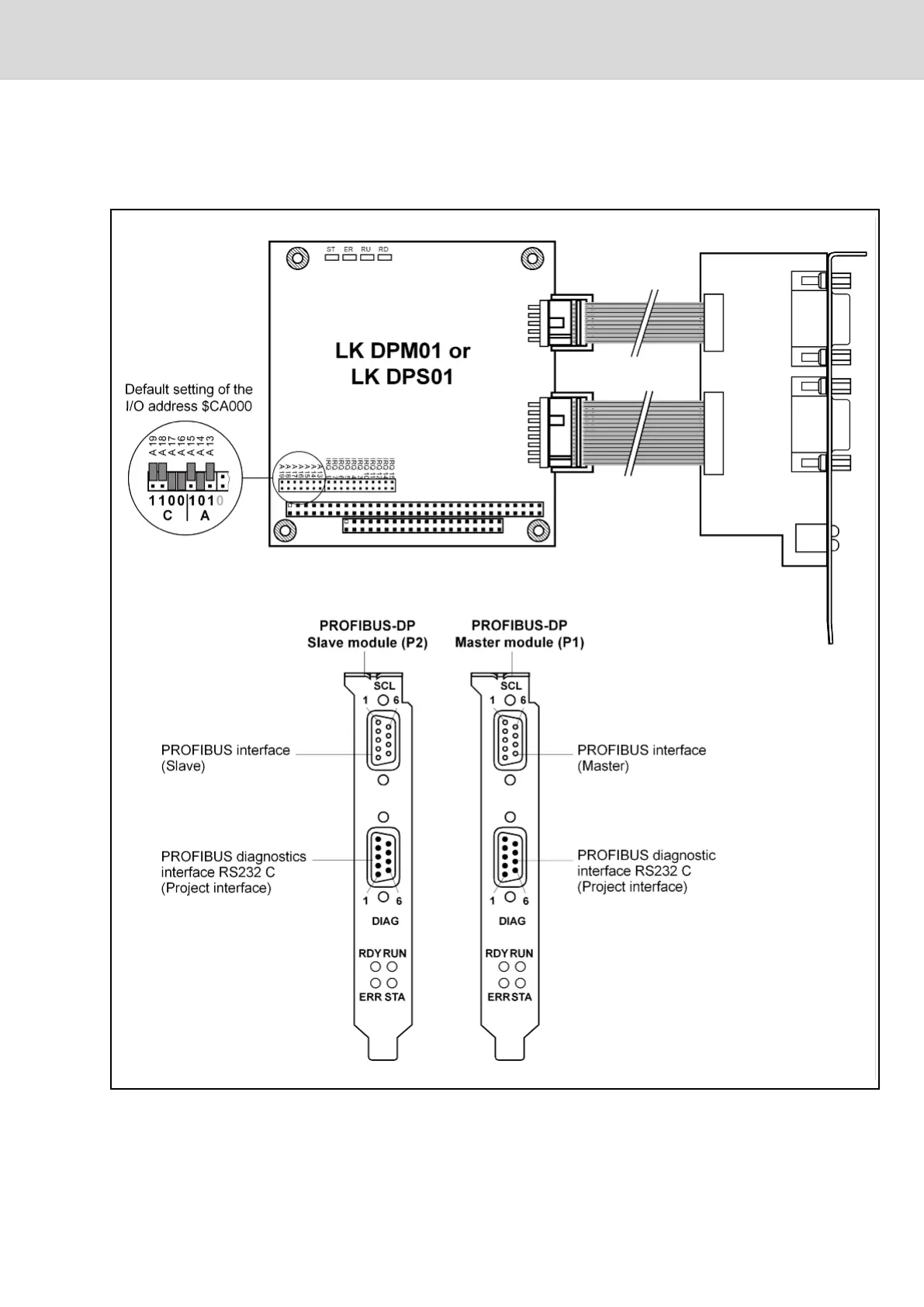

Fig.9-21: Profibus connections
The printed circuit boards DPM01 (master) and DPS01 (slave) are intelligent
PROFIBUS DP connections in PC/104 format. They are used to process the
protocols of the data transmission between the PLC and the decentralized
Project Planning Manual | Rexroth MTA 200 Electric Drives
and Controls
| Bosch Rexroth AG 121/135
PLC Modules MTS-P01.2 and MTS-P02.2
