Troubleshooting, fault clearance and repair
9.1.14.2 Rebounding too slowly
The fork does not rebound quickly enough after
absorbing a bump. The fork also remains
deflected over subsequent bumps, which reduces
deflection and increases the hardness of impacts.
Available deflection, traction and control decrease
(blue line).
The fork remains in a deflected state, causing the
headset and handlebars to move to a lower
position. Body weight is shifted forward after the
impact (green line).

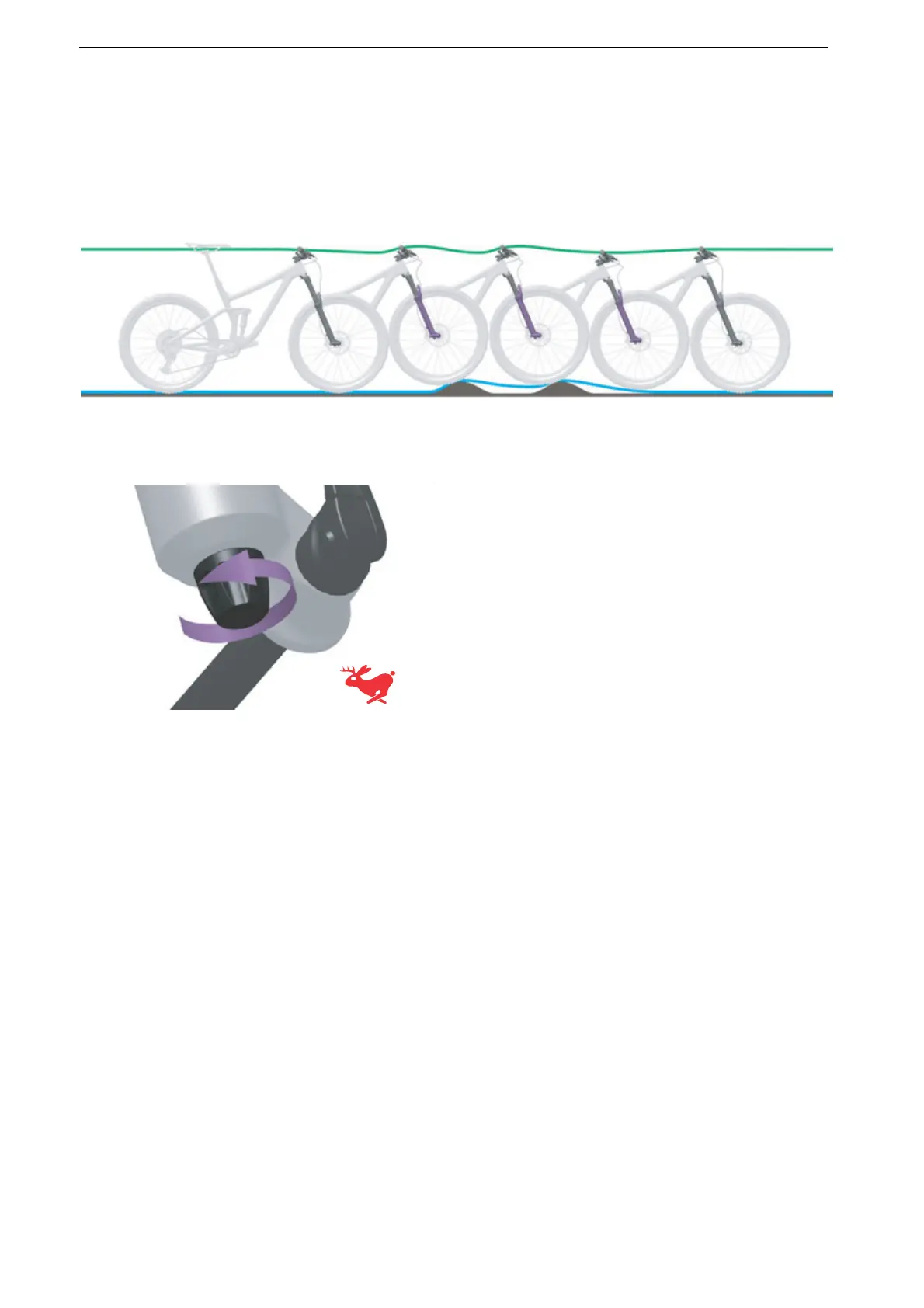

Figure 248: Suspension fork rebounding too slowly
Solution
Figure 249: Turning the rebound screw damper towards
hare symbol
Turn the rebound screw anti-clockwise towards
the hare symbol.
The rebound speed is increased (fast return).
