Troubleshooting, fault clearance and repair
9.1.14.3 Suspension too soft on inclines
The fork deflects at a low point in the terrain. The
deflection is quickly used up, body weight shifts
forward, and the pedelec loses some momentum.

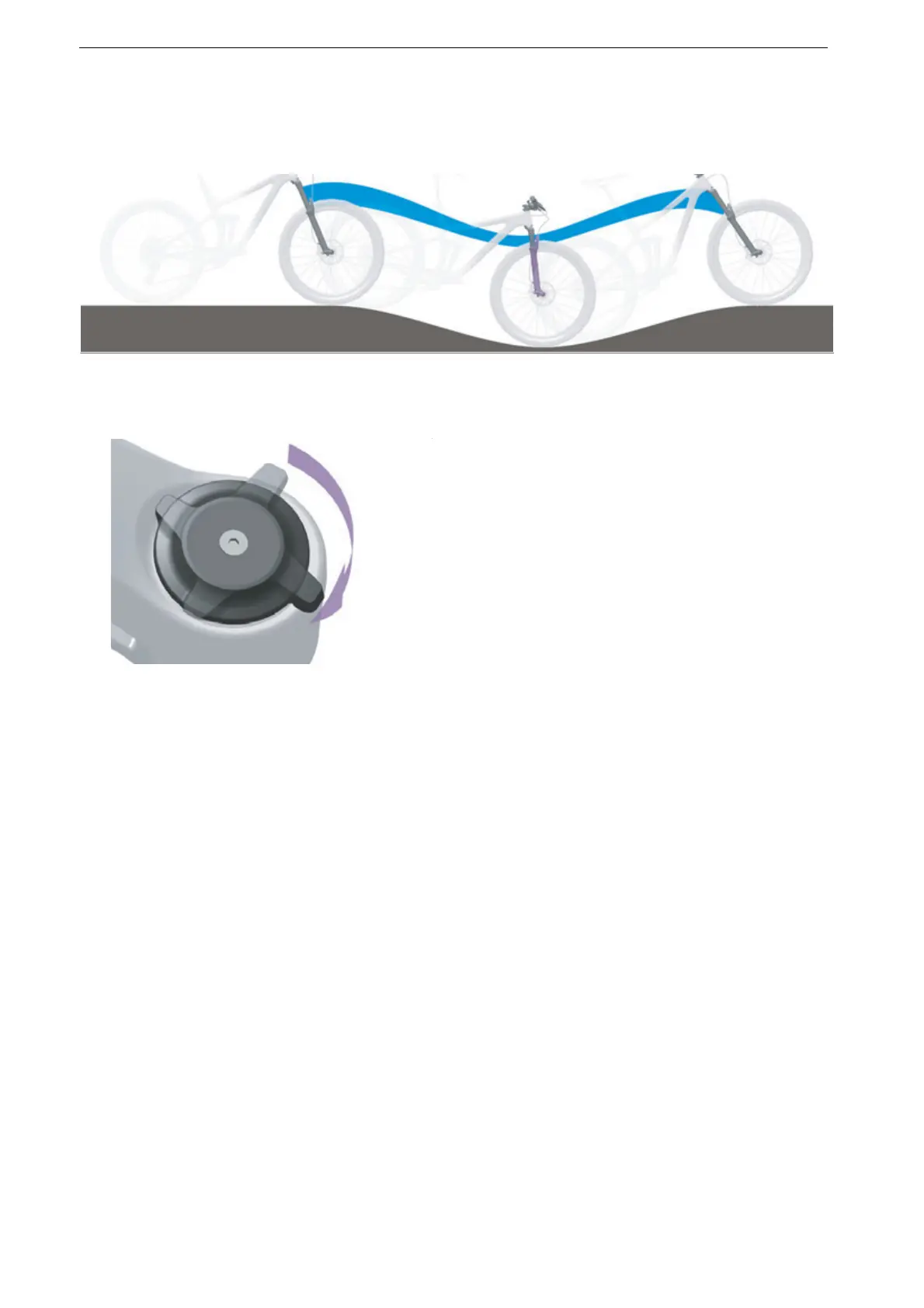

Figure 250: Excessively soft suspension in the suspension fork on hilly terrain
Solution
Figure 251: Changing compression adjuster to a harder
setting
Turn compression adjuster clockwise.
The damping and compression hardness is
increased, and the deflection stroke speed is
reduced. Efficiency on hilly and flat terrain is
improved.
