MY22Z0a - 12_1.0_25.07.2022
73

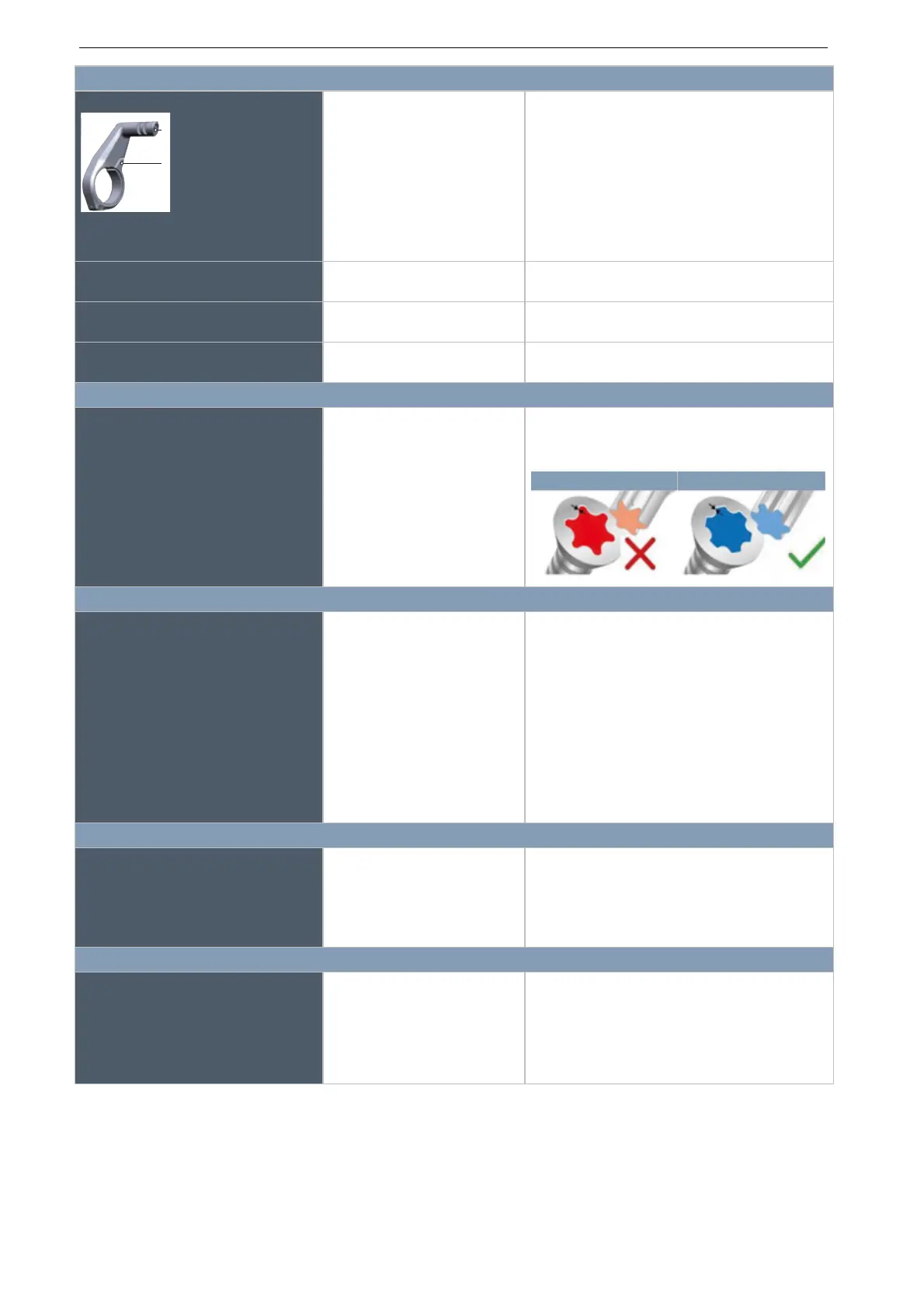

Description
3.5.10.22 On-board computer
BOSCH Intuvia 100 bracket
Attachment screw 1, M3× 22
Attachment screw 2, M3× 14
1Nm
1Nm
3 mm hex bit
3 mm hex bit
BOSCH System Controller
Attachment screw 0.5 Nm Torx® T10
BOSCH Mini Remote
Attachment screw
0.4 Nm (not 0.6 Nm, as written on
mini-remote) 3 mm hex bit
SHIMANO SC-E5003
Attachment screw
0.8 Nm 3 mm hex bit
3.5.10.23 Motor
BOSCH motor BDU37xx
6 x attachment screws for motor
20 ± 2 Nm
Torx Plus® P40, M8 × 16
BOSCH Intuvia 100 bracket
3.5.10.24 Rechargeable battery
BOSCH PowerPack 400/500/600/800
4 × attachment screws for casing base
locking mechanism
2 x attachment screws for cover
2 x attachment screws for cover
2 × attachment screw for bracket on
cable side
1 × attachment screw for bracket on
cable side
2 × attachment screws for bracket on
lock side
1 × attachment screw for bracket on lock
side
5Nm
2Nm
2Nm
1.3 Nm
5Nm
5Nm
1Nm
Torx® T25, M5 × 20
M3.5 × 12
M3.5 × 12 (pointed)
Torx® T15
Torx® T25, M5 × 20
Torx® T25
Torx® T15, M3.5 × 12
3.5.10.25 Motor cover
BOSCH motor cover BDU37xx
Attachment screws for lower motor cover
Attachment screws for motor cover
Initial fitting: 3 ± 0.5 Nm
Retrofit: 2 ± 0.5 Nm
Initial fitting: 3 ± 0.5 Nm
Retrofit: 2 ± 0.5 Nm
Torx® TX 20
Torx® TX 20, 4 × 8 mm
3.5.10.26 Chain guard
Chain guard for BOSCH Motor
BDU37xx
Attachment screws
Max.10 Nm M6 × 10; head: max. 5 mm; length: max. 8.5 mm
