AirborneM2M™ User Guide
26

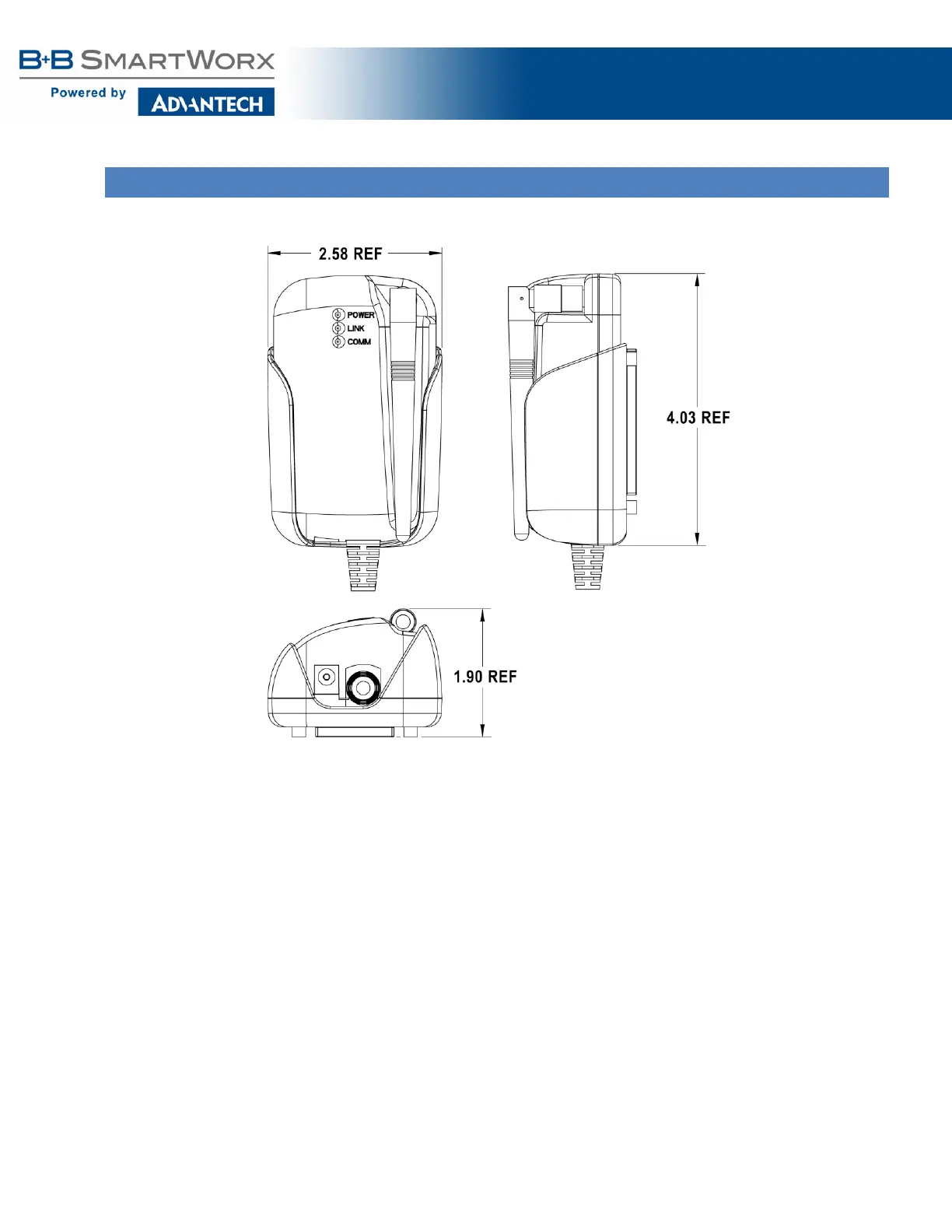

MECHANICAL OUTLINE – ENTERPRISE CLASS
Antenna Connector: RP-SMA (Reverse Polarity – SMA)
Requires 2.4GHz/5GHz ISM band antenna, 50 input impedance, RP-SMA connector
Serial Connector: DB-9M (Male)
Requires DB-9 (female)
Ethernet Connector: RJ-45 Plug
Requires RJ-45 socket, 10/100 Ethernet interface
Power Connector: 2.1mm Barrel Jack
Requires 2.1mm ID, 5.5mm OD, +5VDC center pin
