AirborneM2M™ User Guide
27

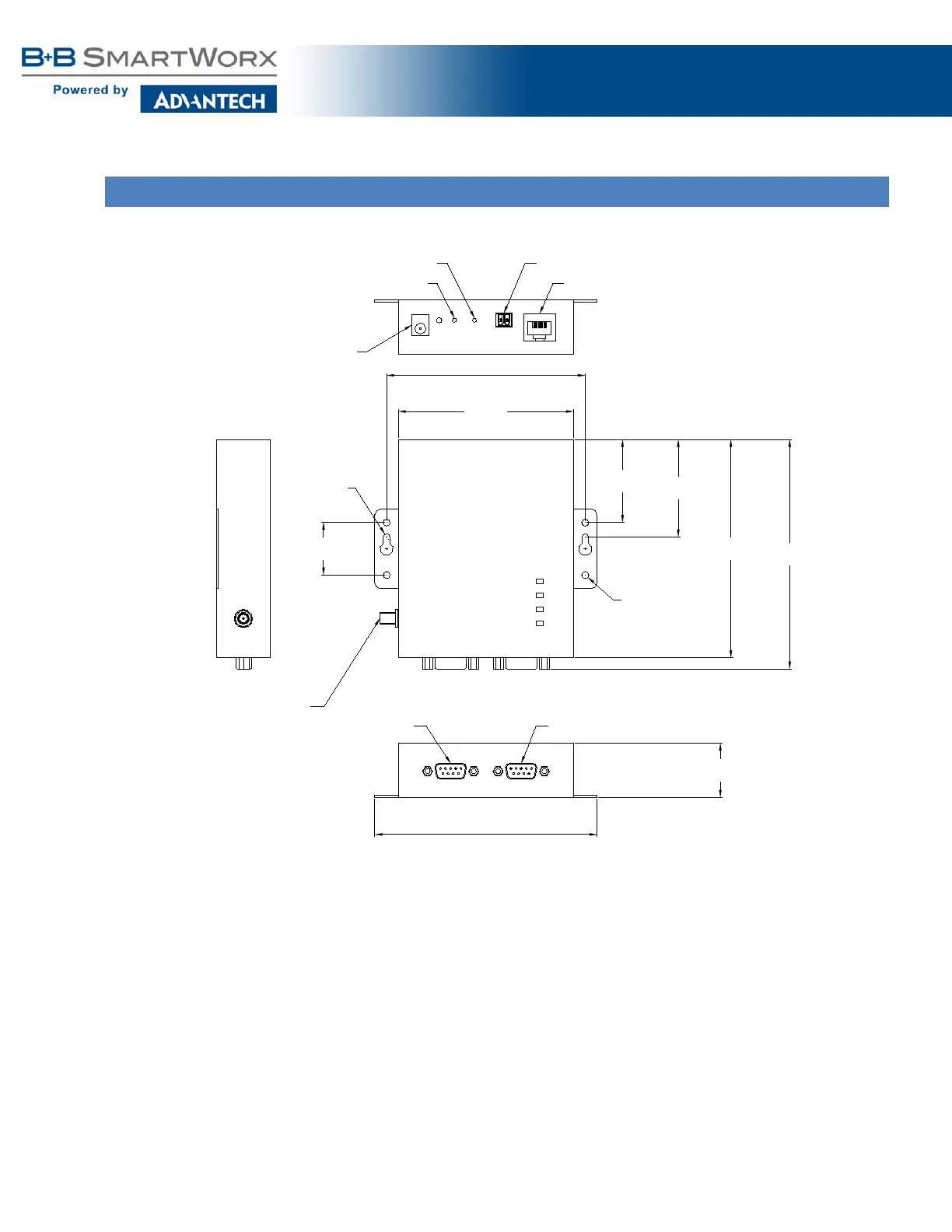

MECHANICAL OUTLINE – INDUSTRIAL CLASS
Terminal Block (Power)
10/100 Ethernet Socket
System Reset
Factory Reset
2.1mm Barrel Jack
Serial Port 1
Serial Port 2
RP-SMA Antenna Connector
Ø3.56mm
[Ø0.14"]
Ø3.81mm
[Ø0.15"]
107.42mm
[4.23"]
28.44mm
[1.12"]
52.72mm
[2.08"]
44.85mm
[1.77"]
118.14mm
[4.65"]
120.12mm
[4.73"]
29.21mm
[1.15"]
124.14mm
[4.89"]
94.72mm
[3.73"]
CONNECT
LINK
POST
POWER
Antenna Connector: RP-SMA (Reverse Polarity – SMA)
Requires 2.4GHz/5GHz ISM band antenna, 50 input impedance, RP-SMA connector
Serial Connector: DB-9M (Male)
Requires DB-9F (female)
Ethernet Connector: RJ-45 Socket
Requires RJ-45 plug, 10/100 Ethernet interface
Power Connector: 2.1mm Barrel Jack
Requires 2.1mm ID, 5.5mm OD, +5VDC center pin
Power Connector: Terminal Block (2 connector)
Requires 16-30 AWG gauge wire.
