51
WitboxUser Manual
English

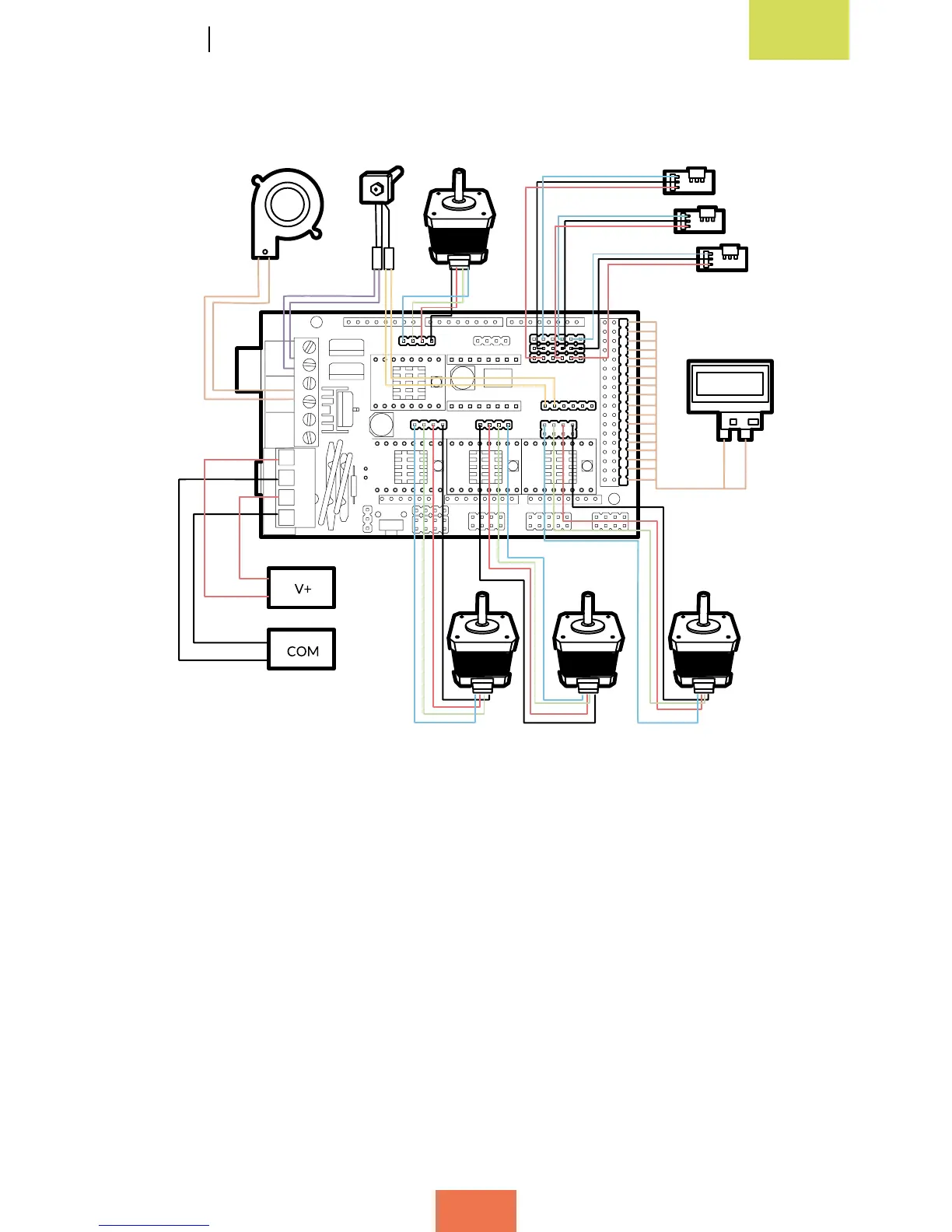

Most important connections on the board
Figure 5.9Mostimportantconnectionsonthecontrollerboard
Blower Hot-End
Extruder
motor
Endstops
LCD screen
Power
X-axismotor Y-axismotor Z-axismotor
