BradyPrinter i3300 35
Maintenance
Replacing the Supply Wiper
Replacing the Supply Wiper
Materials Required
• B31-WIPER
1. Remove power and supplies from the printer (see Pre-maintenance Operations” on page 27).

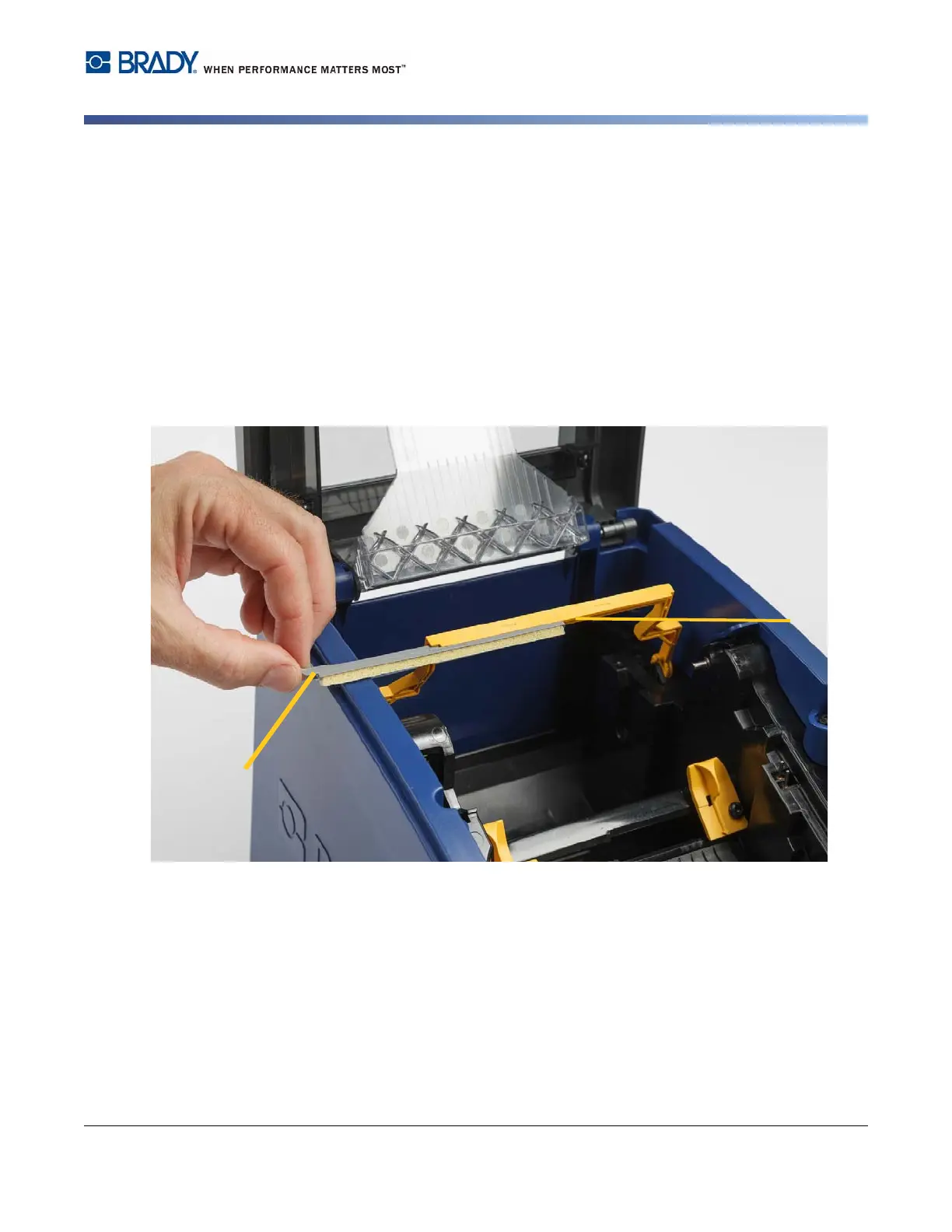

2. Lift and hold the wiper arm while grasping the tab of the wiper insert [15].
3. Pull the tab slightly forward and then slide the wiper insert out of the wiper arm.
4. To replace the wiper, insert the lip of the wiper insert into the slot [16] of the wiper arm and
slide in until the tab snaps into place.
5. Replace the ribbon and label supply.
6. Close all covers and plug in the power cord.
15
16
