Brocade Communications Systems FastIron X Series Hardware Installation Guide

166 Brocade FastIron X Series Chassis Hardware Installation Guide
53-1001723-02
Chassis specifications
7
Serial (console) port pinouts
The Console port is a standard male DB-9 connector, as shown in Figure 62.

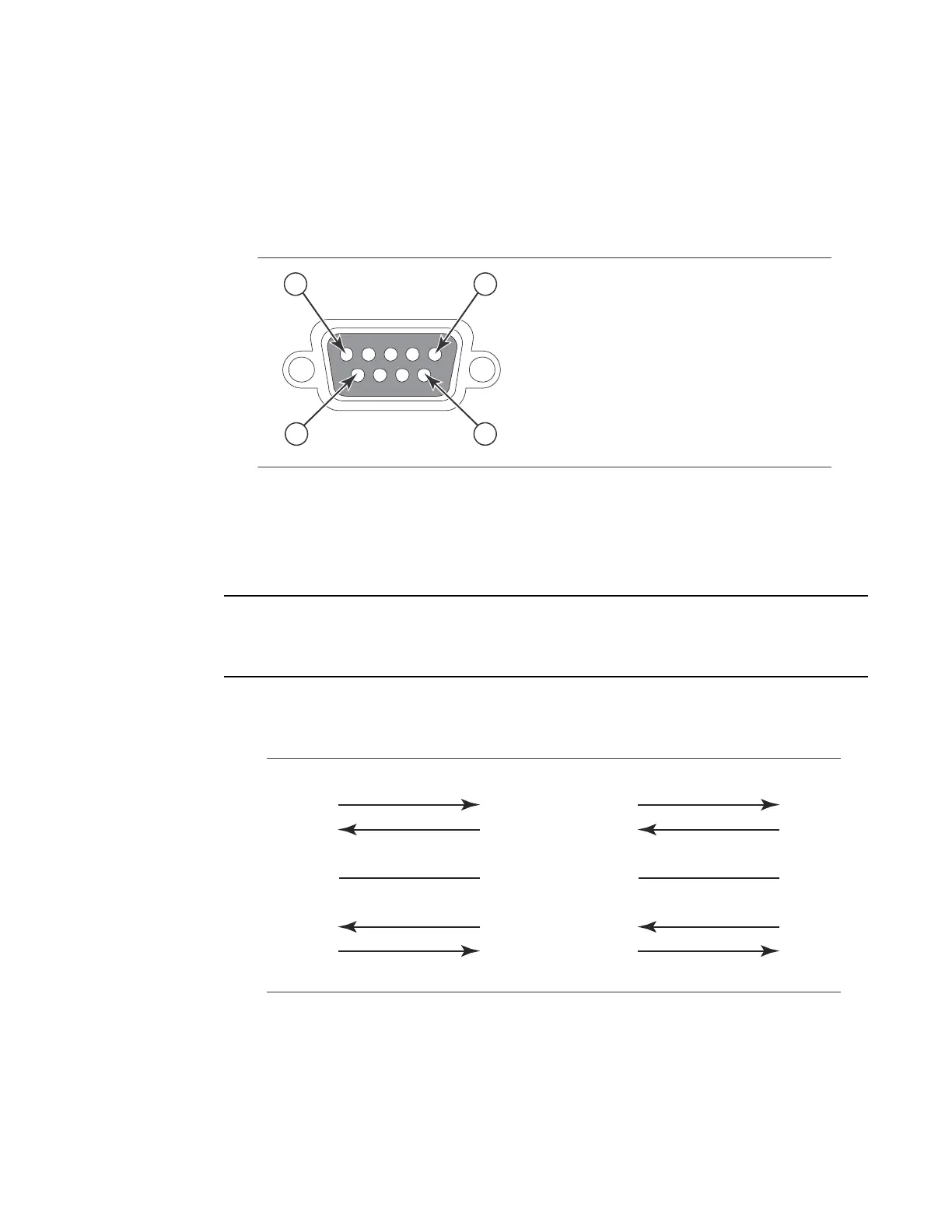

FIGURE 62 Serial port pin and signalling details
Most PC serial ports require a cable with a female DB-9 connector. However, terminal connections
will vary, requiring a cable with either a DB-9 or DB-25 connector, male or female.
Serial cable options between the FastIron X Series chassis and a PC or terminal are shown in
Figure 63.
NOTE
As indicated in Figure 62 and Figure 63, some of the wires should not be connected. If you do
connect the wires that are labelled “Reserved”, you might get unexpected results with some
terminals.
FIGURE 63 Console port pin assignments showing cable connection options to a terminal or PC
5
96
1
Pin Assignment
DB-9 male
Pin Number
Switch Signal
1 Reserved
2 TXD (output)
3 RXD (input)
4 Reserved
5 GND
6 Reserved
7 CTS (input)
8 RTS (output)
9 Reserved
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
8
3
2
20
7
6
4
5
22
1
2
3
4
5
6
7
8
9
DB-9 to DB-9
Female Switch
Terminal or PC
Reserved
Reserved
Reserved
Reserved
DB-9 to DB-25
Female Switch
Terminal or PC
Reserved
Reserved
Reserved
Reserved
