Brocade Communications Systems FastIron X Series Hardware Installation Guide

180 Brocade FastIron X Series Chassis Hardware Installation Guide
53-1001723-02
Upgrade kit contents
A

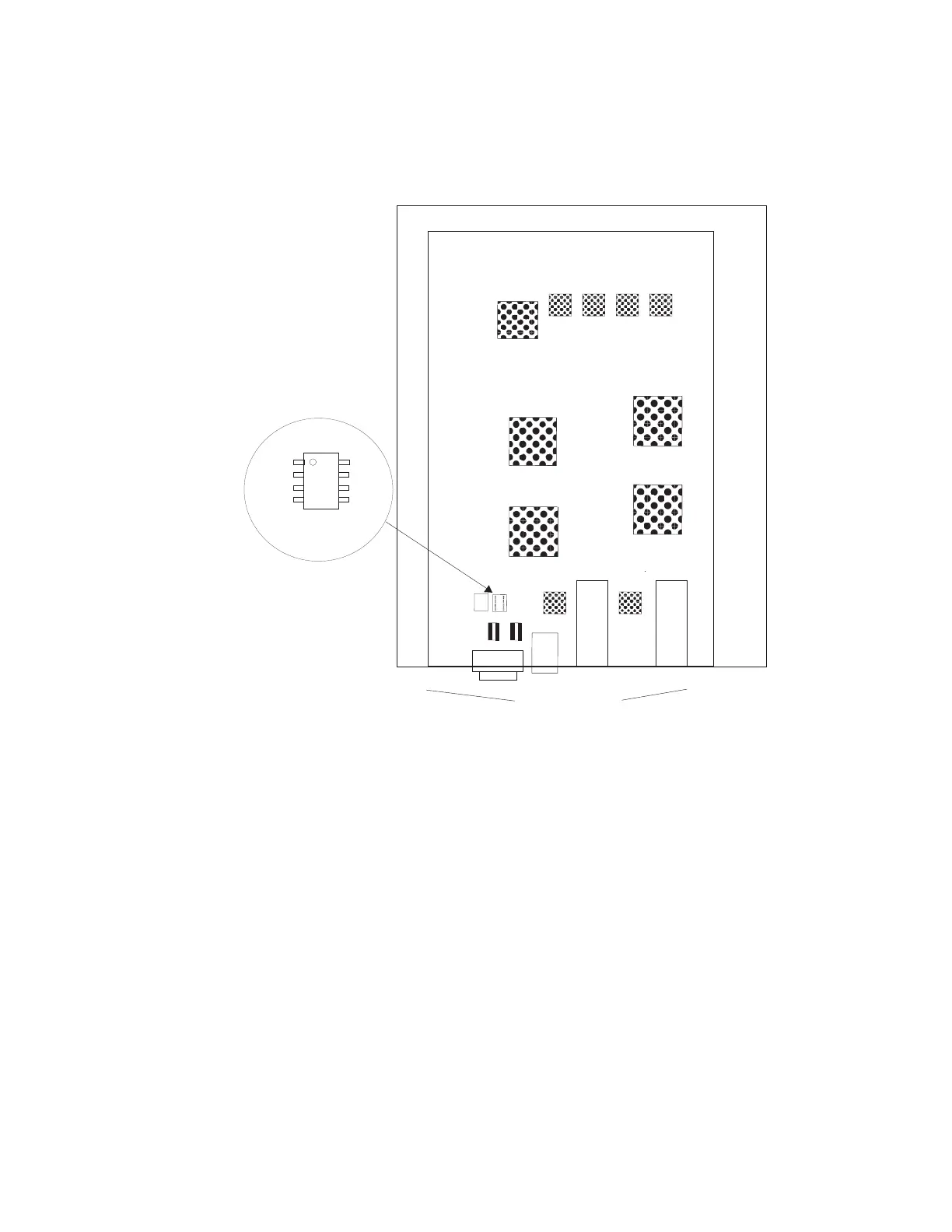

FIGURE 72 DIP key insertion for the IPv6 2-port 10-GbE management modules (SX-FI2XGMR6)
Rear
Port Connectors
CAUTION: PIN 1
MUST GO HERE!
If you accidentally insert
the upgrade DIP backwards,
the device will not work and
may be damaged when you
power it on.
DIP key
for upgrade
Pin 1
U63
