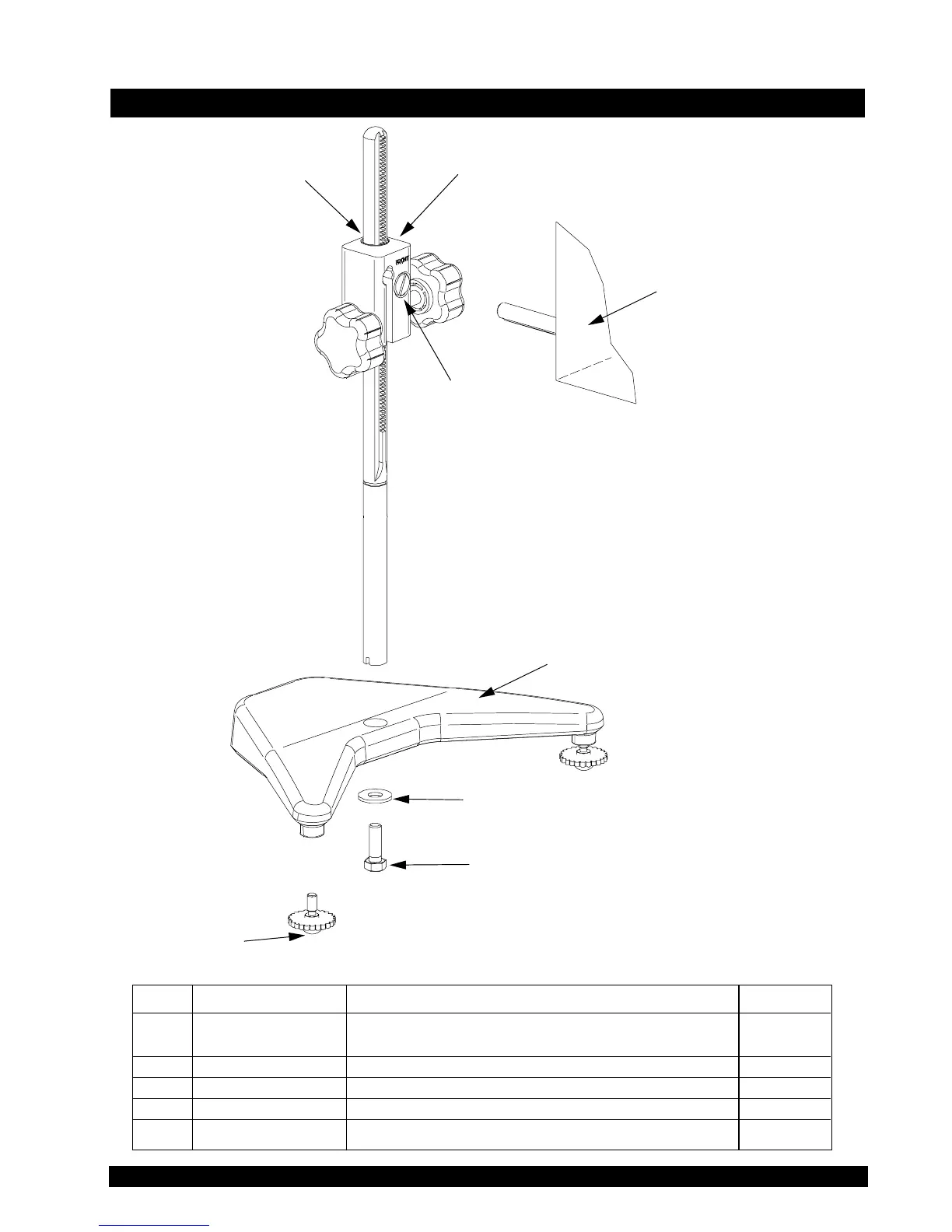

Appendix I - Model S Laboratory Stand
Å
CLAMP ASSEMBLY
NOTE: “FRONT” FACES TOWARD YOU.
BROOKFIELD
LABORATORY
VISCOMETER
TENSION
SCREW
Ç
É
Ñ
Ö
ITEM PART # DESCRIPTION QTY.
1 VS-CRA-14S 14” UPRIGHT ROD AND CLAMP ASSEMBLY 1
VS-CRA-18S 18” UPRIGHT ROD AND CLAMP ASSEMBLY Optional
2 VS-2Y BASE, includes 2 VS-3 leveling screws 1
3 VS-3 LEVELING SCREW available separately or in assembly above 2
4 50S311832S01B SCREW 5/16 X 1” Hex Head 1
5 502028071S33B FLAT WASHER 5/16 X 7/8 X .071 1
