Brookfield RVDV-II+Pro - Appendix L - Instrument Dimensions

Brookeld Engineering Labs., Inc. Page 86 Manual No. M/03-165-D0410

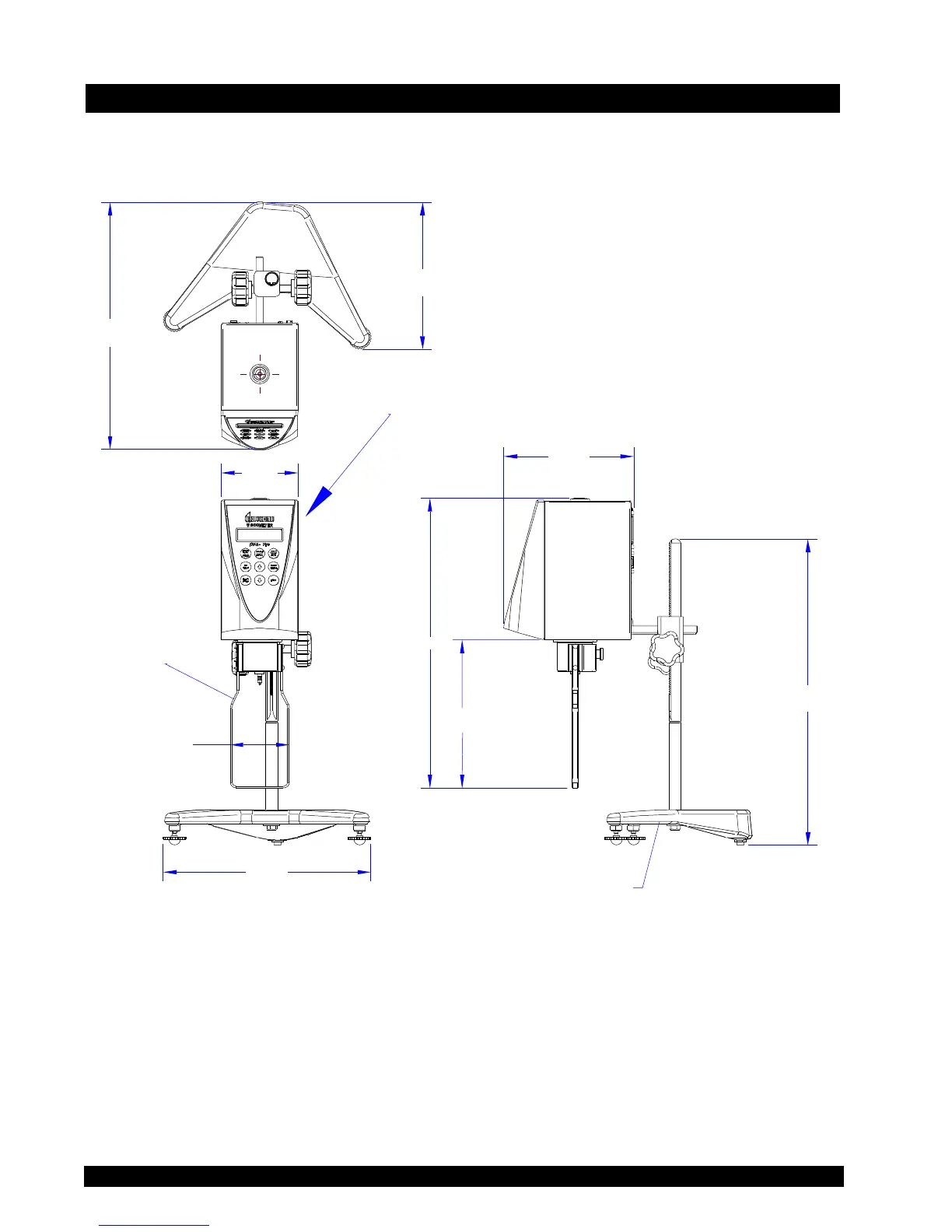

Appendix L - Instrument Dimensions
13 21/64”
[33.9 cm]
7 15/16”
[20.2 cm]
4 9/64”
[10.5 cm]
3 3/16”
[8.1 cm]
6 63/64”
[17.7 cm]
15 41/64”
[39.7 cm]
7 63/64”
[20.3 cm]
16 31/64”
[41.9 cm]
11 3/16”
[28.4 cm]
VS-2Y
LAB STAND BASE ASSEMBLY
B-21Y
RV GUARD LEG
ASSEMBLY
DV-II+ PRO VISCOMETER
