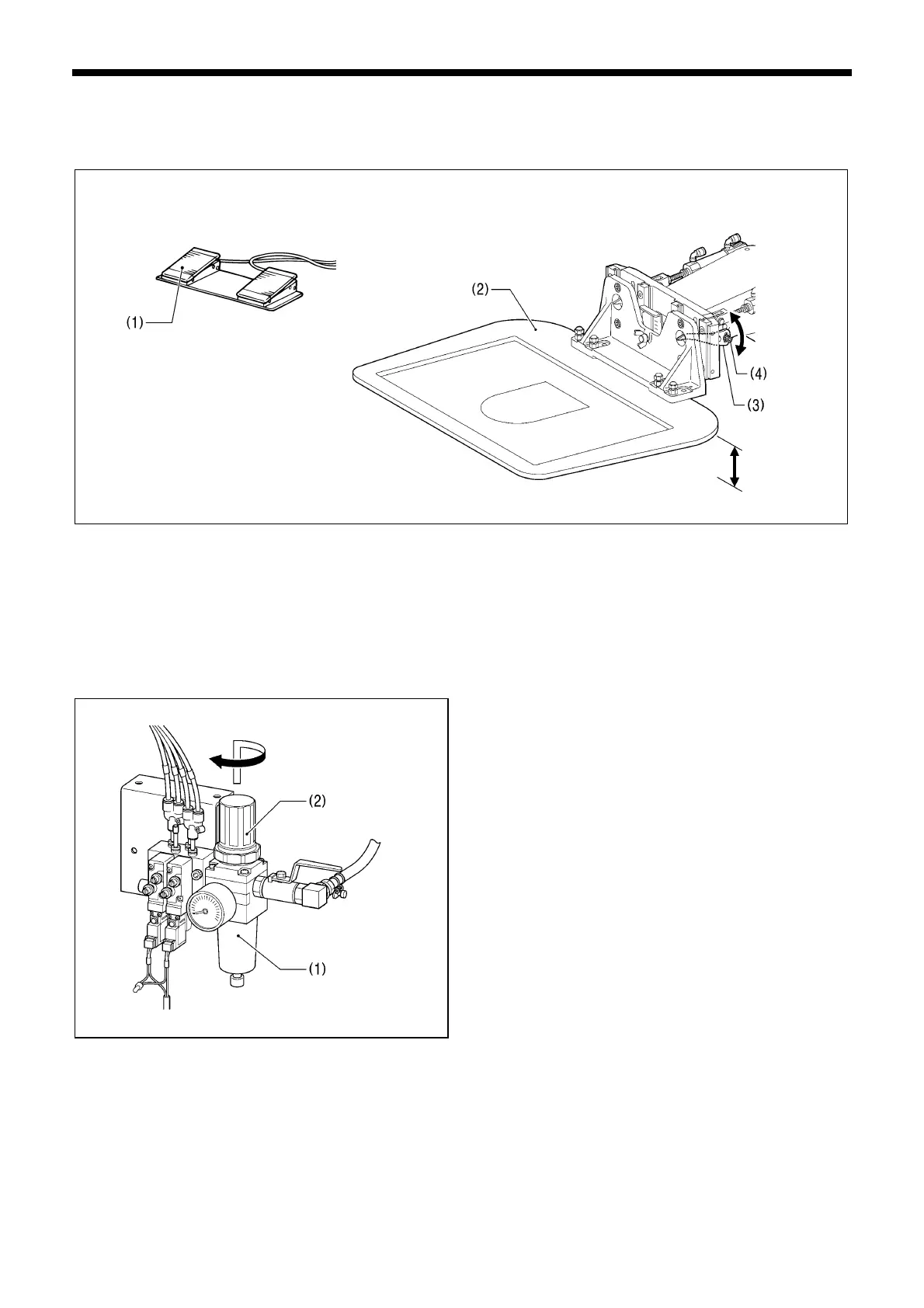

7-14. Adjusting the work clamp lift amount
The maximum lift amount for the work clamp (2) is 30 mm above the top of the needle plate.
1. Turn on the air, and then turn on the power switch.
2. Depress the work clamp switch (1) to raise the work clamp (2).
3. Loosen the two bolts (4) of the work clamp lifter lever (3), and then move the work clamp lifter lever (3) up or down to adjust
the lift amount.
7-15. Adjusting the air pressure
Lift up the handle (2) of the regulator (1) and then turn it to
adjust the air pressure to 0.5 MPa.
After adjustment is complete, push the handle (2) downward
to lock it.
4052M5018Q
Max. 30mm
