4. MECHANIC
AL DESCRIPTIONS
BAS-342G
38

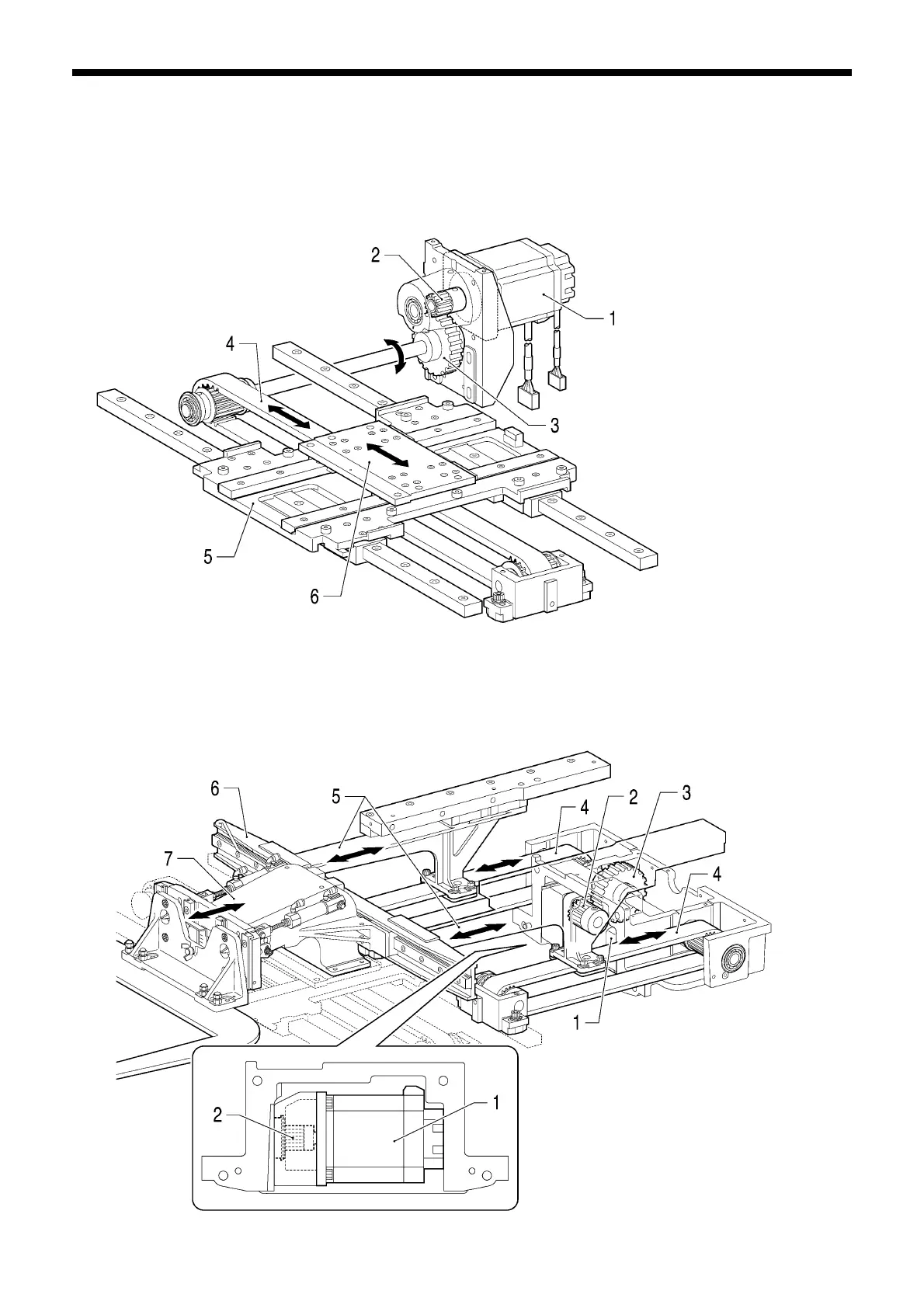

4-6. Feed mechanism
Sewing patterns are created through combinations of X and Y movements.
Y direction
X direction
1. X-feed motor assembly
2. Y motor gear
3. X gear
4. X-GT belt
5. X base plate
6. Y base plate
1. Y-feed motor assembly
2. Y motor gear
3. Y gear
4. Y-GT belt
5. Y-arm
6. X-LM guide bracket
7. Work clamp arm
1237B
1238B
