5. DISASSEMBL
Y
BAS-342G
42

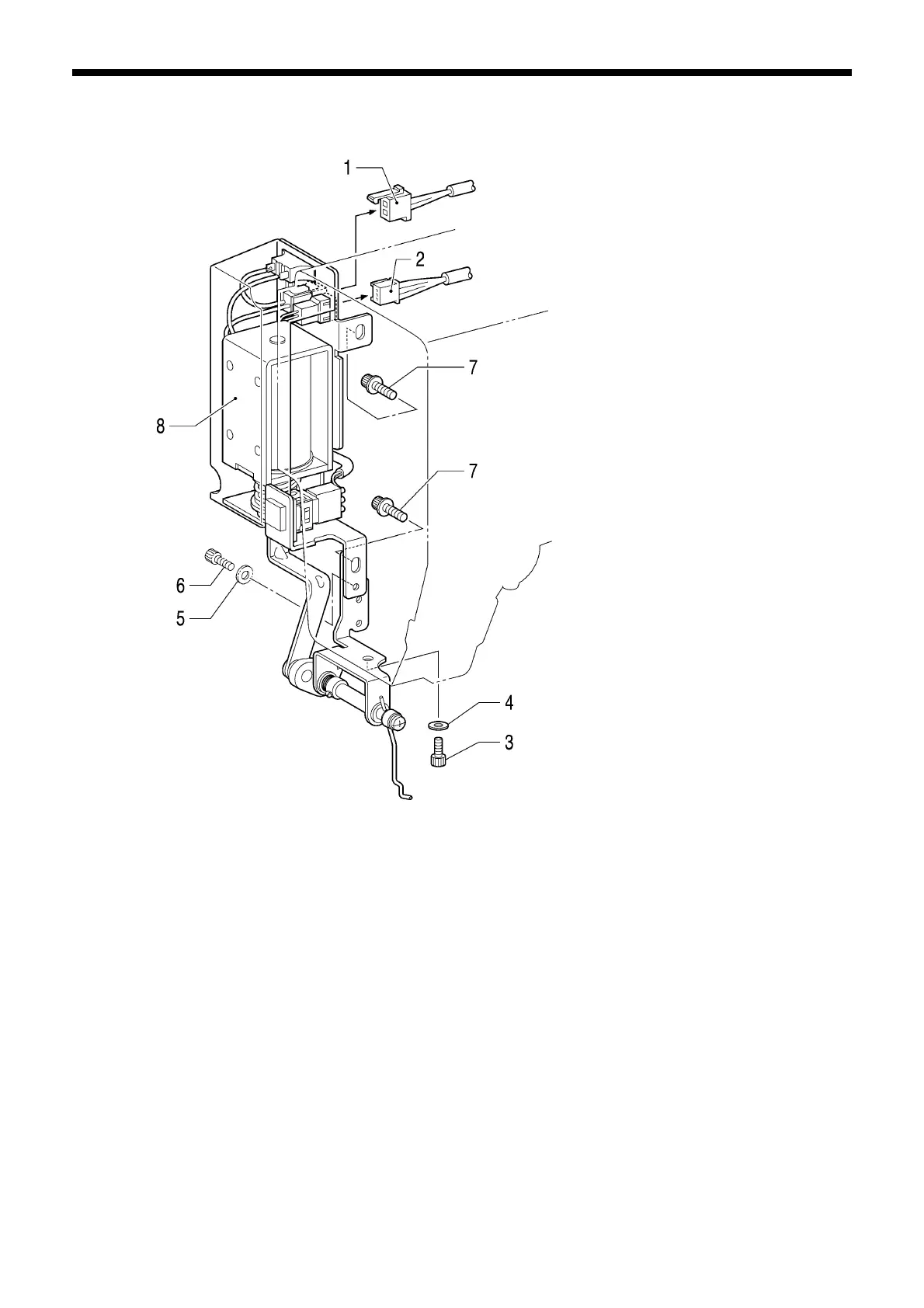

5-2. Thread wiper mechanism
1.
Thread wiper solenoid harness
(Pull out)
2.
STOP switch harness (Pull out)
3. Bolt
4. Plain
washer
5.
Removed plain
washer (Assemble)
6.
Removed bolt (Assemble)
7.
Bolts with
washers [2 pcs]
8.
Thread wiper unit
5090Q
50
52
