7. ADJUSTMENT
101
BAS-342G
7-19.
Adjusting the lower shaft gear backlash
1.

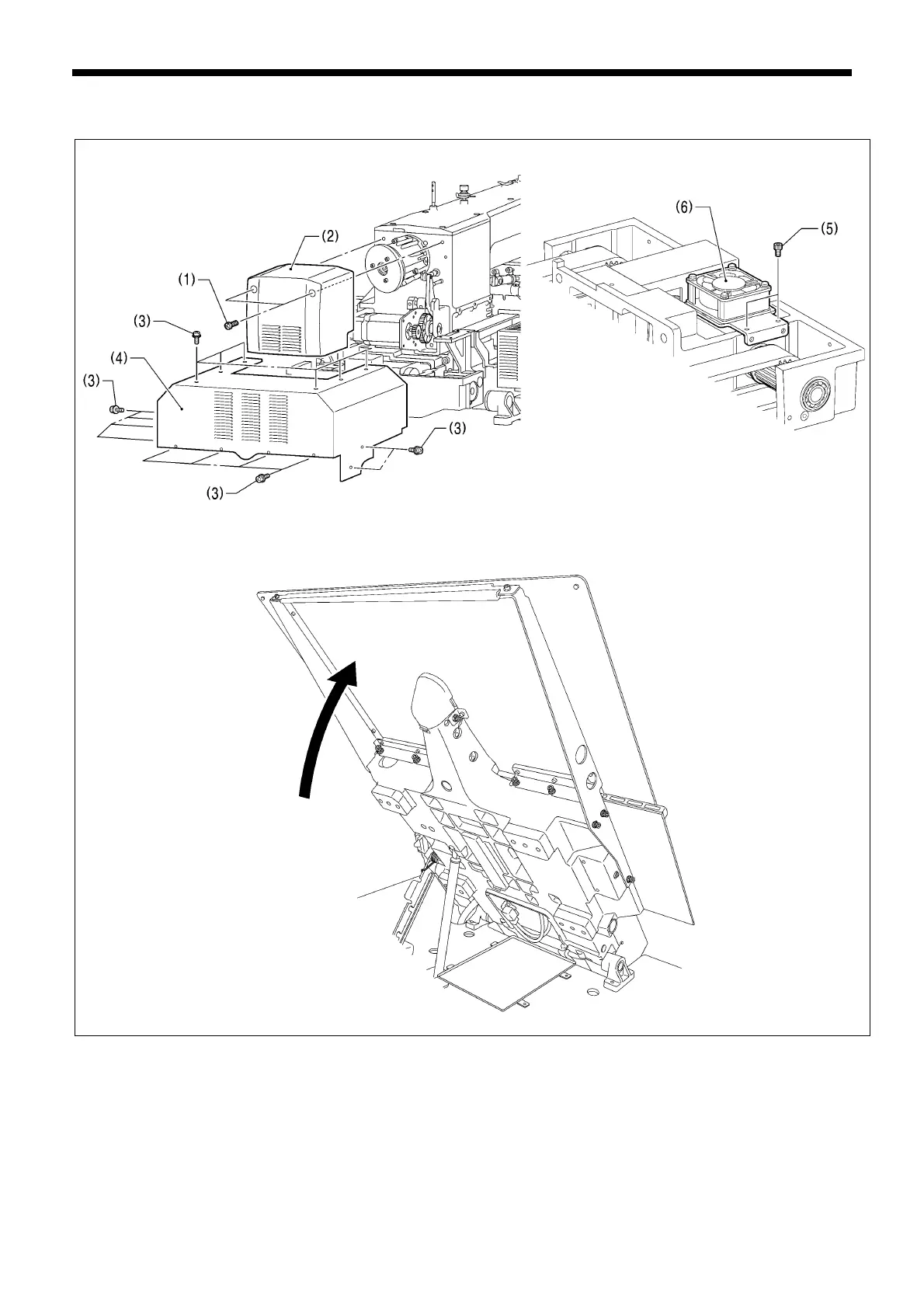

Remove the two screws (1), and then remove the motor cover (2).
2.
Remove the sixteen screws (3), and then remove the rear cover (4).
3.
Remove the two screws (5), and then remove the Y
motor fan (6).
4.
Gently tilt back the machine head.
1379B
1380B
1381B
109
111
