Brother BAS-342G Service Manual

6. ASSEMBLY
BAS-342G
70

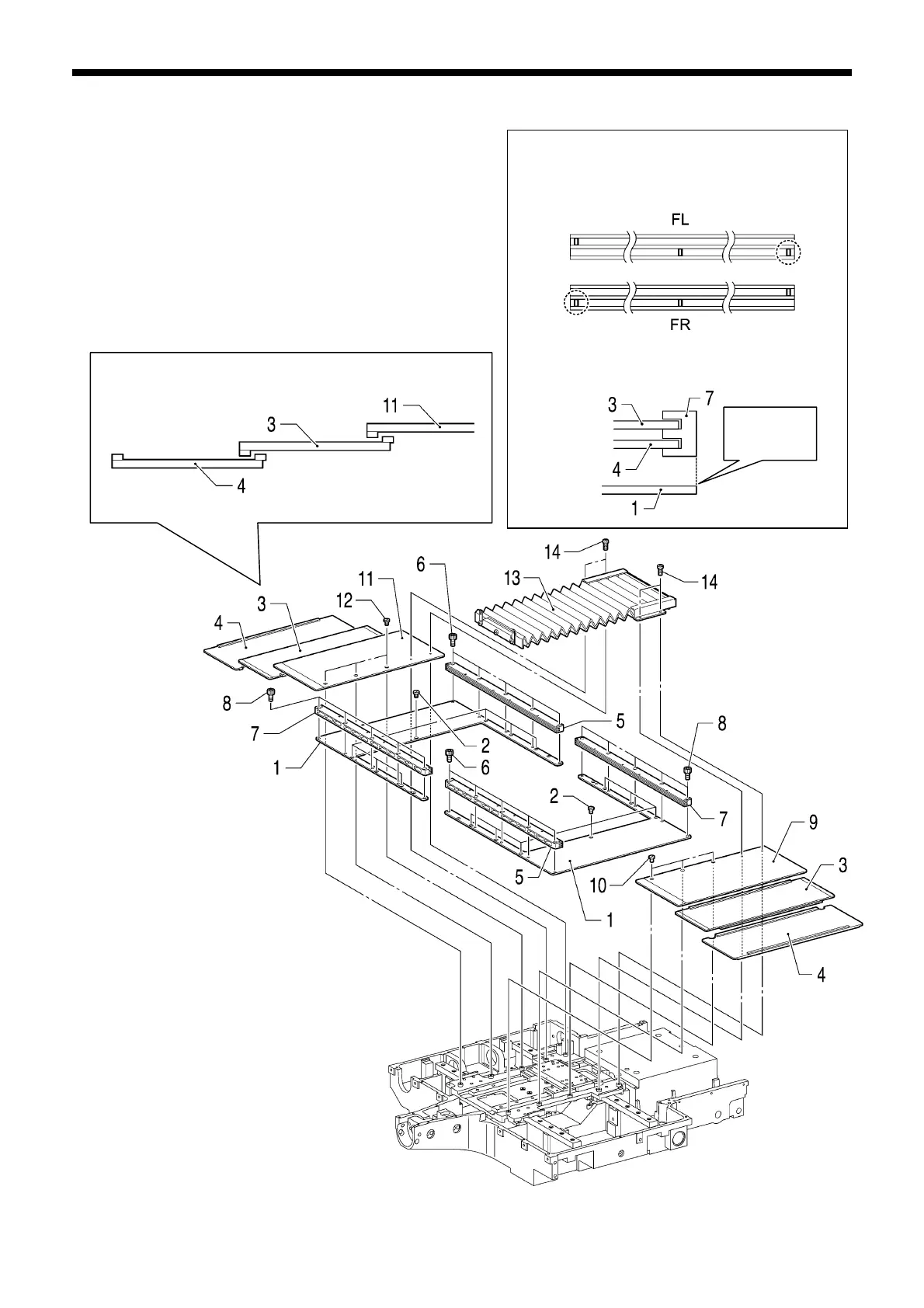

6-6. Feed covers
(Continued on the next page.)
Install the cover rails so that the pins at the bottom
edges are on the outside.
Place the middle cover on top of the cover rails
and outside cover on the bottom.
1. Fixations [2 pcs]
2. Screws [14 pcs]
3. Middle cover assemblies [2 pcs]
(Place into cover rail.)
4. Outside cover assemblies [2 pcs]
(Place into cover rail.)
5. Cover rail FR assemblies [2 pcs]
6. Bolts 4X10 [10 pcs]
7. Cover rail FL assemblies [2 pcs]
8. Bolts 4X10 [10 pcs]
9. Inside cover R assembly
10. Screws 4X8 [3 pcs]
11. Inside cover L assembly
12. Screws 4X8 [3 pcs]
13. Bellow assembly
14. Screws [4 pcs]
(Tighten the inside cover R assembly and
inside cover L assembly together.)
1300B
1301B
1353B
1352B
A
lign the
edges.
Outside
Outside
Lock the projections together as shown in the illustration.
