5. DISASSEMBLY
BAS-342G
52

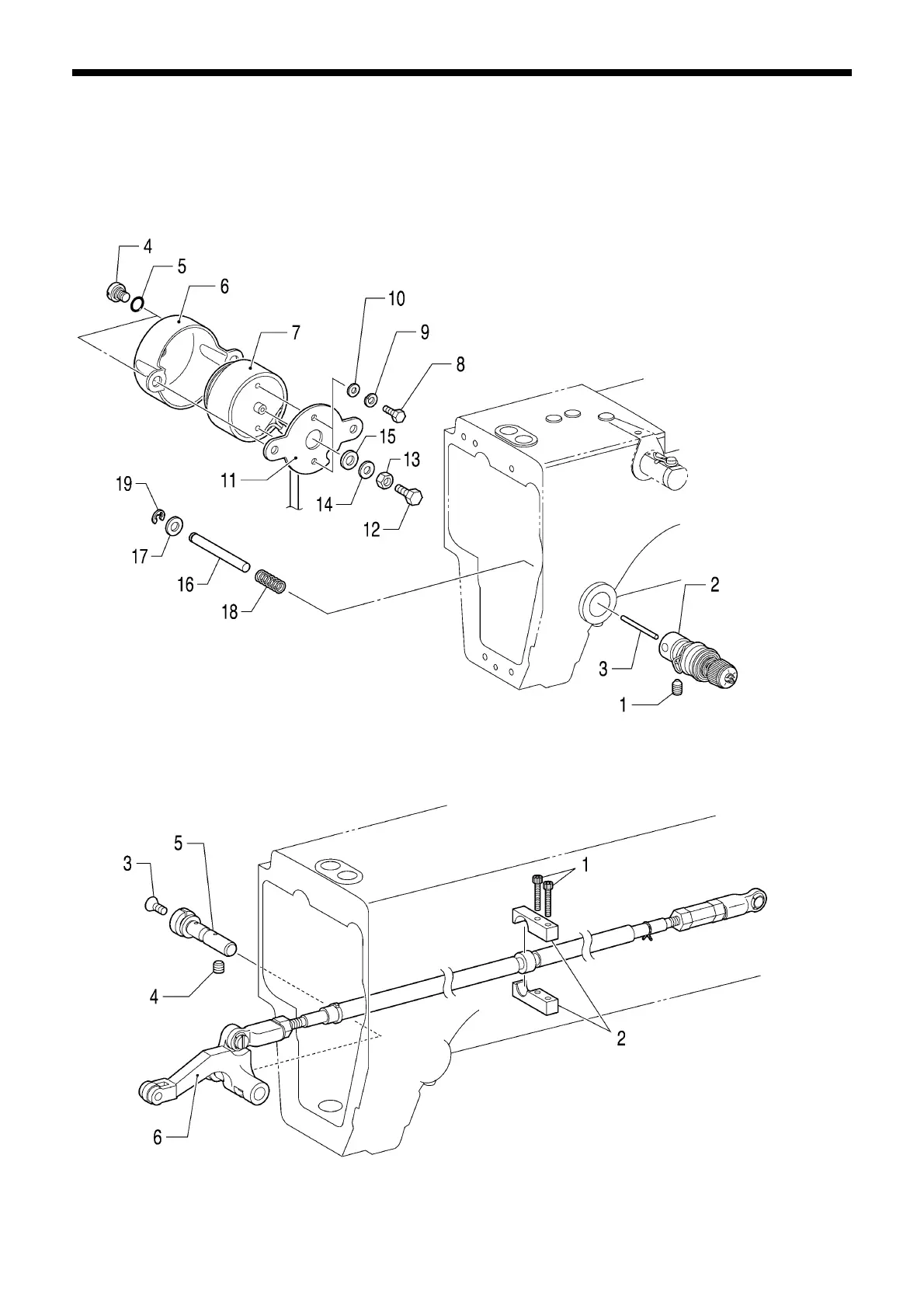

5-11. Tension release mechanism
5-12. Intermittent presser foot lifter mechanism (2)
1. Set screw (Loosen)
2. Tension bracket assembly
(Pull out)
3. Tension release pin
4. Shoulder screws [2 pcs]
5. O rings [2 pcs]
6. Solenoid cover
7. Tension release solenoid
8. Bolts [2 pcs]
9. Spring washers [2 pcs]
10. Plain washe
r
s [2 pcs]
11. Solenoid setting plate
12. Bolt
13. Nut
14. Plain washer
15. Solenoid cushion
16. Tension release bar
17. Plain washer
18. Compression spring
19. Retaining ring E
5111Q
1. Bolts [2 pcs]
2. Stepping clamp lifter rod holder
3. Flat screw
4. Set screw (Loosen)
5. Stepping clamp lifter shaft (Pull out)
6. Stepping clamp lifter (Pull forward)
1257B
