Brother GTX-4 Service Manual

4-59
Improvement of print quality

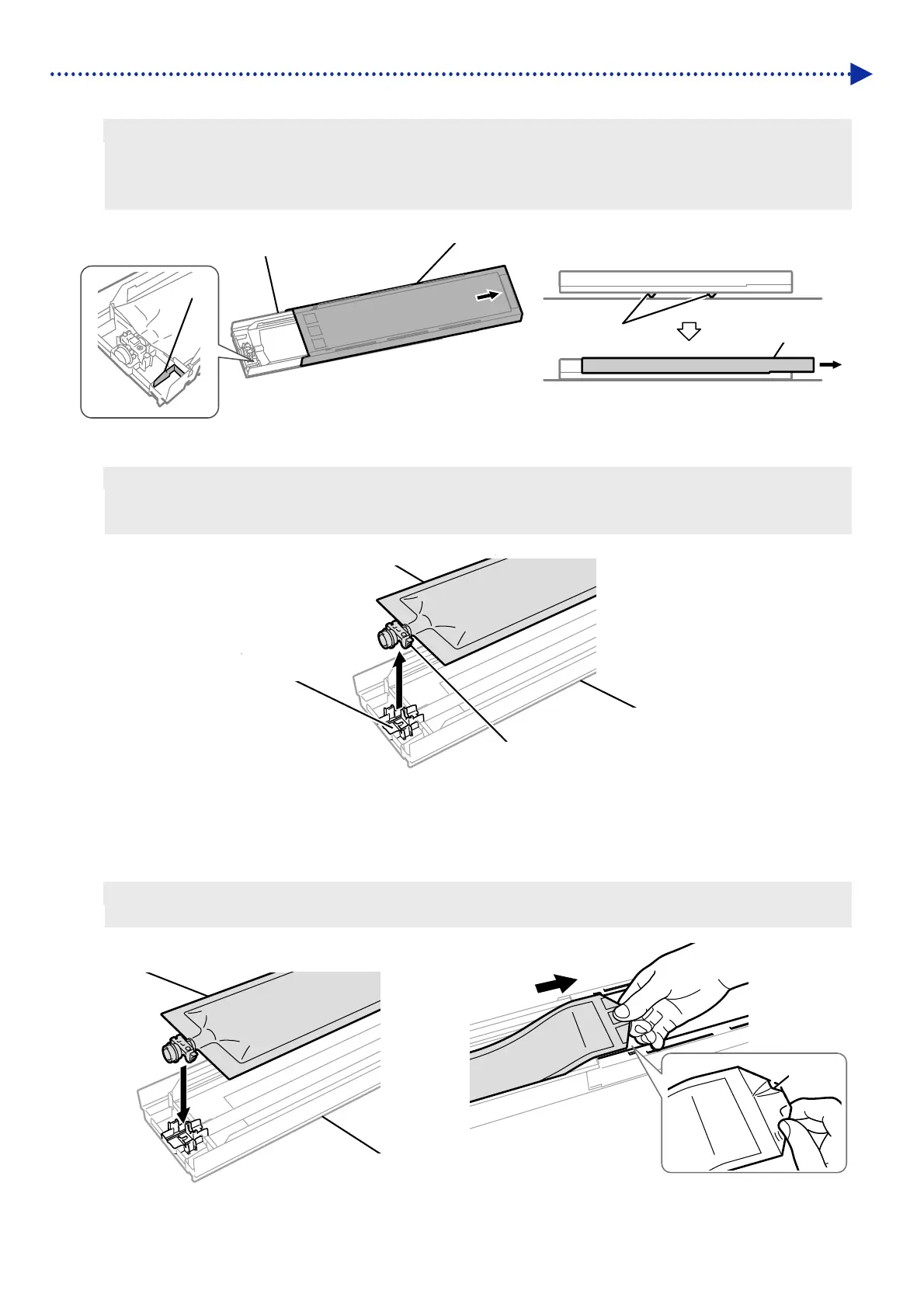

(4) Open the cartridge's lid.
<IMPORTANT>
 When opening the lid, be sure not to touch the portion (a). Otherwise, it could be damaged.
 Place the entire cartridge on a flat surface, push the latches on the bottom surface of the cartridge downward and open the
lid.
(a)
X0042
(5) Pinch the latch at the front end of ink pouch, and draw out the white ink pouch from the cartridge.
<CAUTION>
 Remove the accumulated ink at the tip of the cartridge with a waste cloth (non-fuzzy cloth). Clean the printer on a regular
basis.
X011
9
(6)
Put the maintenance solution pouch in the cartridge.
Push the tip end of the maintenance solution pouch into the cartridge until it clicks into place.
Straighten the maintenance solution pouch in such a manner that it will be aligned with the gutter of the lid of the cartridge, and
mount in position by pulling it with your hand.
<NOTE>
 If the edge of the ink pouch is bent or undulating significantly, make it straight with your hand.
X0049
Maintenance solution pouch
Cartridge
Lid
Cartridge
Latch
Lid
White ink pouch
Cartridge
Cartridge's tip end
Latch
Stretch
