Brother GTX-4 - Replacement of Cleaning Solution Tank Sensor

6-211
Disassembly / Replacement / Adjustment
6-2-28. Replacement of cleaning solution tank sensor
In the case that the power is turned on, press the power switch to turn off the power.
Unplug the power cord from the main unit and start the work after five or more minutes have passed.
Disassembly

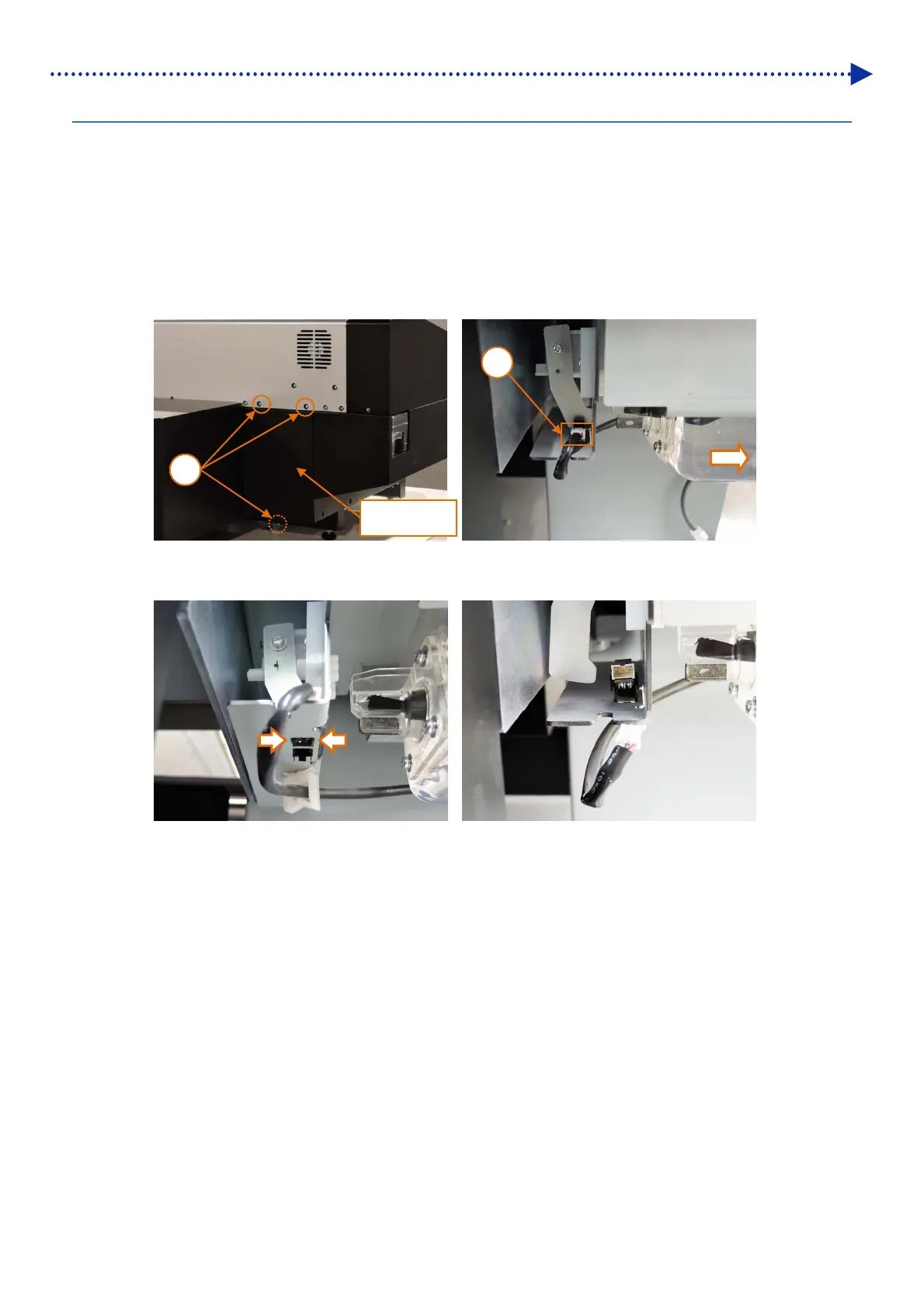

(1) Remove the three screws fixing the cover DBL to detach it.
(2) Take out the cleaning solution tank.
(3) Detach the photo interrupter from the connector.
(4) Unhook the latch of the photo interrupter from the sensor holder to detach the interrupter.
Assembly
(1) To perform the assembly, take the reverse procedures to disassembly operation.
1
Cover DBL
3
